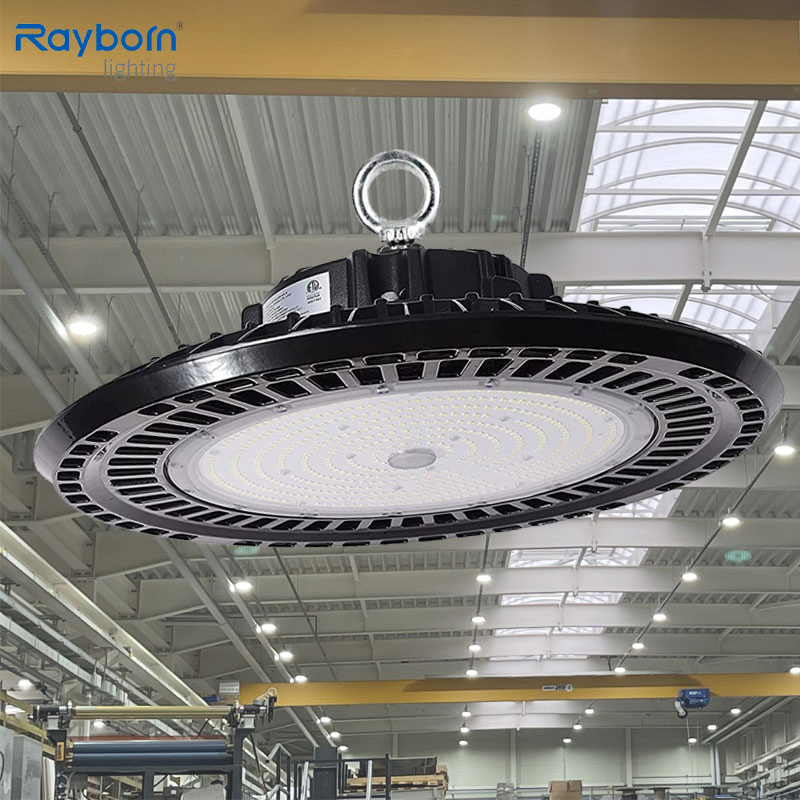

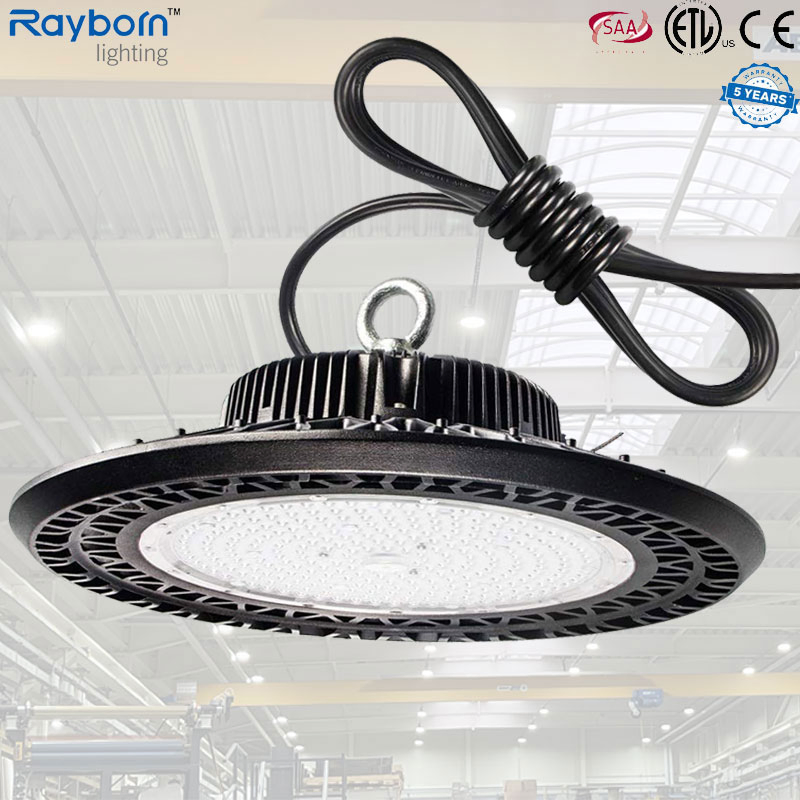

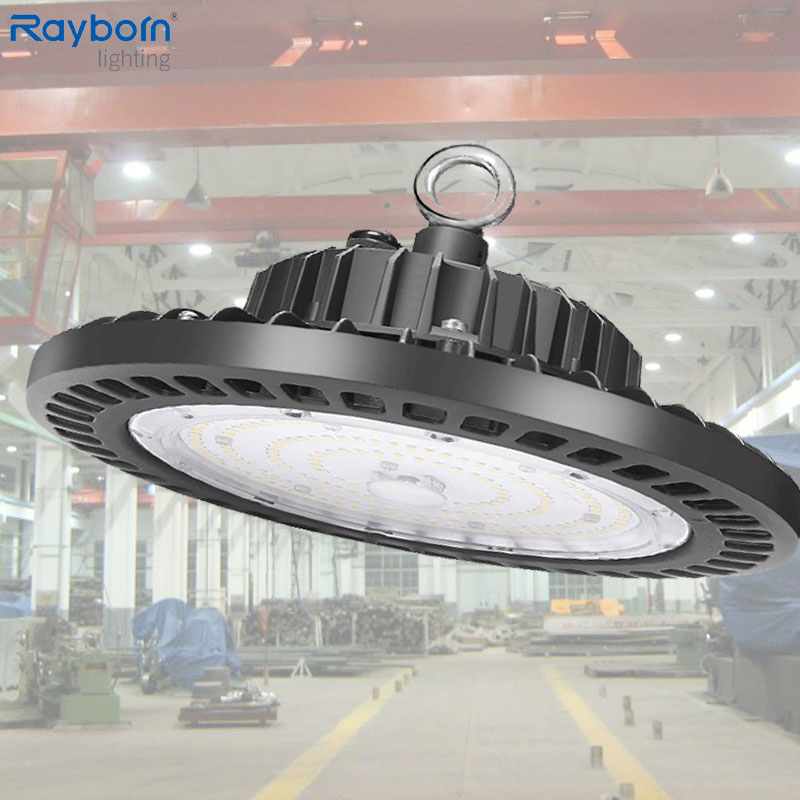

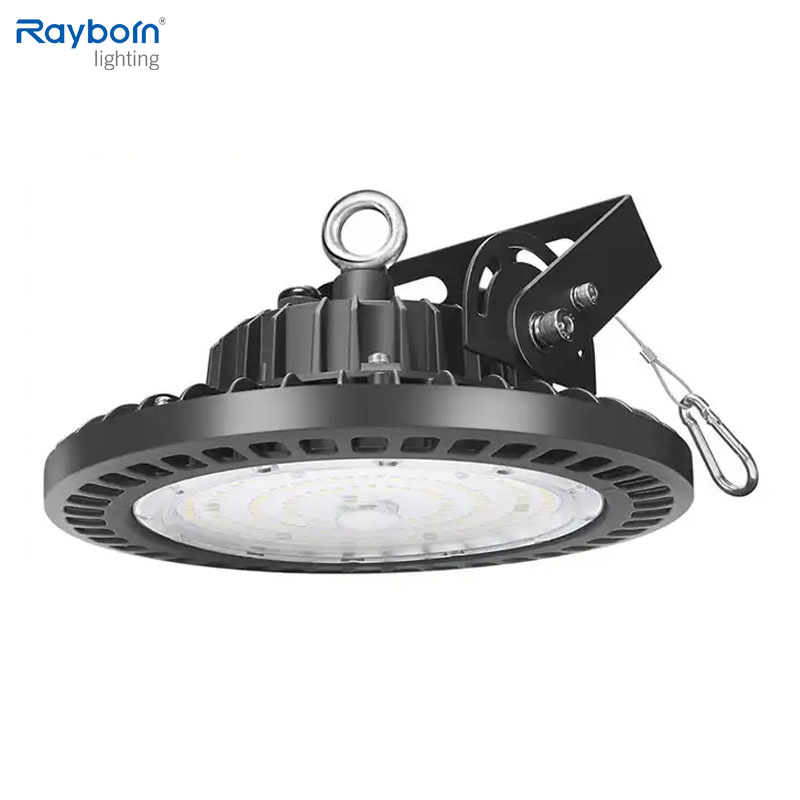

5 Year Warranty IP65 CE ETL SAA Indoor Industrial Fixtures UFO LED High Bay Light 100W-300W | 140-190lm/W
Product Features
High reliable driver supporting 100-240V/100-277V/347-480V AC. Allows 1-10V dimming. Microwave sensor, Zigbee Smart, and Bluetooth controls available.
3030/2835 SMD LED chips deliver 140-170LM/W efficiency. Color temperature options 3000K-6500K, CRI>80% for realistic colors and eye protection.
Hollow outer casing design provides convection heat exchange with ambient air. LED junction temperature kept below 85°C for longer lifetime.
Waterproof design eliminates mist and avoids condensation. Suitable for wet environments, indoors and outdoors.
Reflectors with 60°, 90°, and 120° beam angles are available to meet professional light distribution needs across different sites.
ETL, SAA, CE, and RoHS certified. Comes with a 5-year warranty. Full LM79, LM80, and IES simulation reports are available.
- Durable aluminum housing with convection cooling structure.
- Two installation modes available: Bracket & Hooking Hang.
- Lighter weight and smaller volume configuration helps save freight costs.
- Direct replacement option for traditional LED metal halides.
Product Parameters
Below are the technical specifications for the 100W LED Industrial UFO High Bay Light:
| 100W UFO LED High Bay Light Technical Specifications |
| Item No. |
RB-HB-100WU2 |
| Input Voltage |
AC 100-240V / 100~277V / 277-347V / 480V |
| Frequency Range |
50Hz ~ 60Hz |
| LED Chip |
3030/2835 SMD Chip |
| Power Factor / Efficiency |
PF > 0.96 | Efficiency > 90% |
| System Consumption |
102W |
| LED Luminous Flux |
Warm White |
16000 LM |
| Pure White |
16800 LM |
| Cool White |
17000 LM |
| Viewing Angle |
120° / 90° / 60° |
| Center Illuminance |
Height 6M |
185 LUX |
| Height 8M |
105 LUX |
| Height 10M |
67 LUX |
| Illuminance Area |
Height 6M |
Dia. 1780 CM |
| Height 8M |
Dia. 2336 CM |
| Height 10M |
Dia. 2908 CM |
| Color Temperature |
Warm White (3000K-3500K) | Pure White (5300K-5700K) | Cool White (6000K-6500K) |
| CRI / IP Grade |
Ra > 80 / IP65 Waterproof |
| Working Life-span / Temp |
50,000 Hours / -40°C ~ 65°C |
| Connection Wire Color |
Brown |
Live (L) |
| Blue |
Neutral (N) |
| Yellow / Green |
Ground (G) |

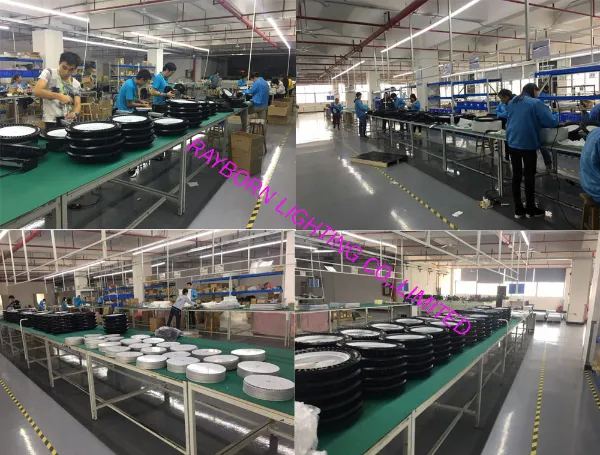

Production Workshop

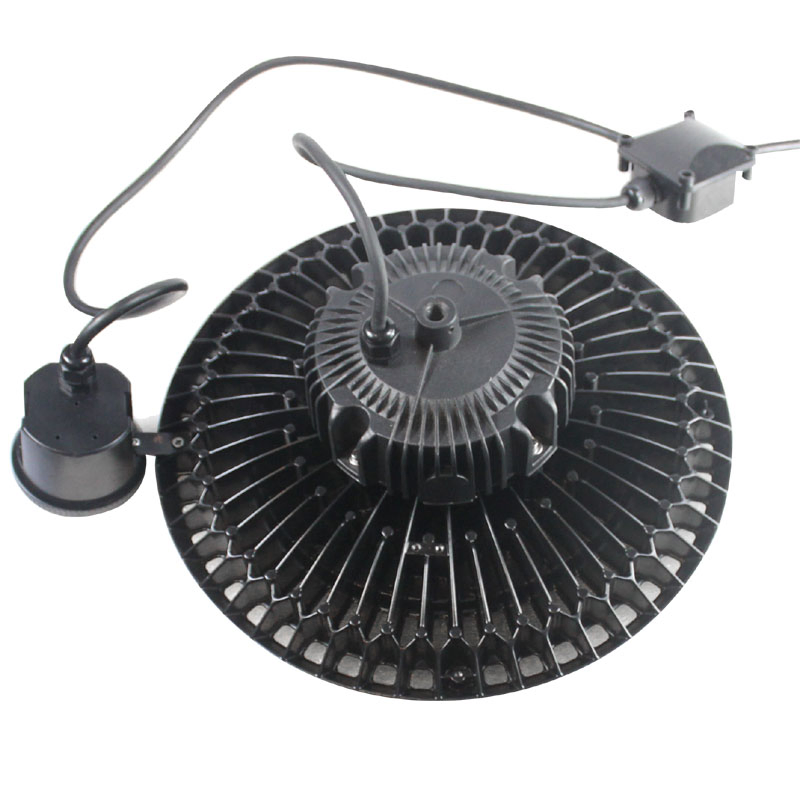

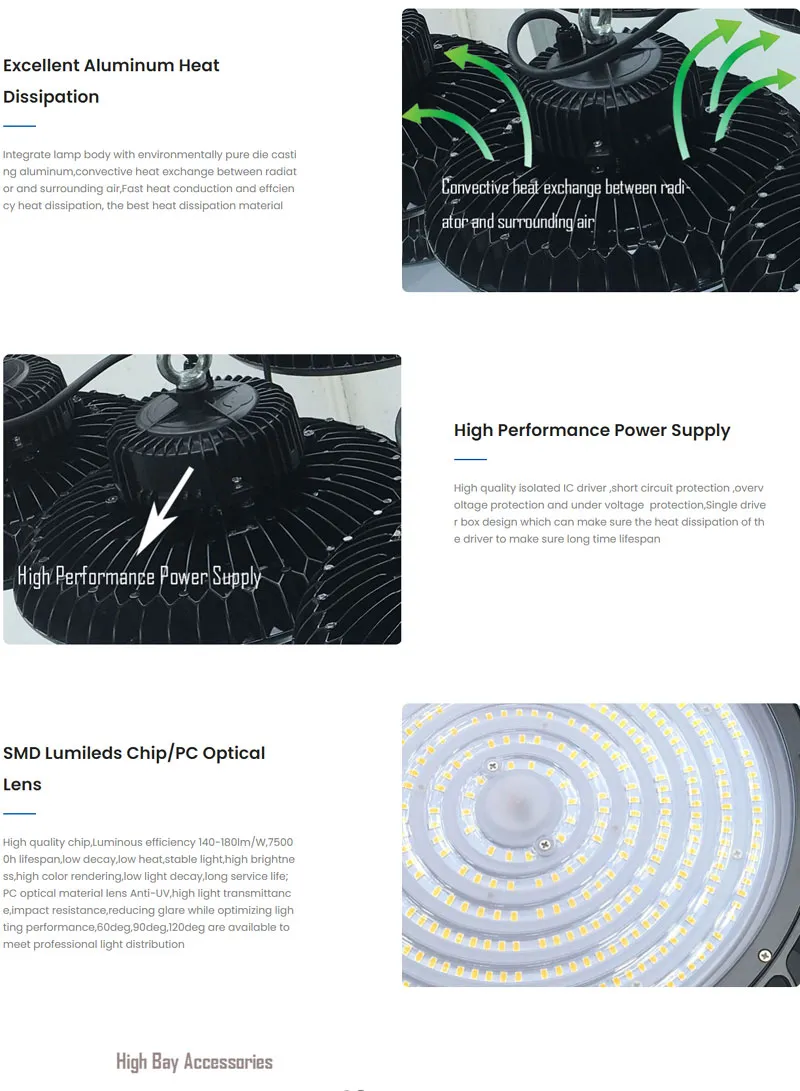

Product Structure Details
- Flexible position alignment adjustable within 180°.
- Copper heatpipe technology conducts heat rapidly from the chips to the radiator, keeping temperature low.
- Utilizes high-quality, high-reliability drivers and premium chipsets.
- IP65 waterproof and anti-condensation design, excellent for outdoor and indoor operations.
- Reflector 60°/90°/120° beam angle for professional distribution requirements.

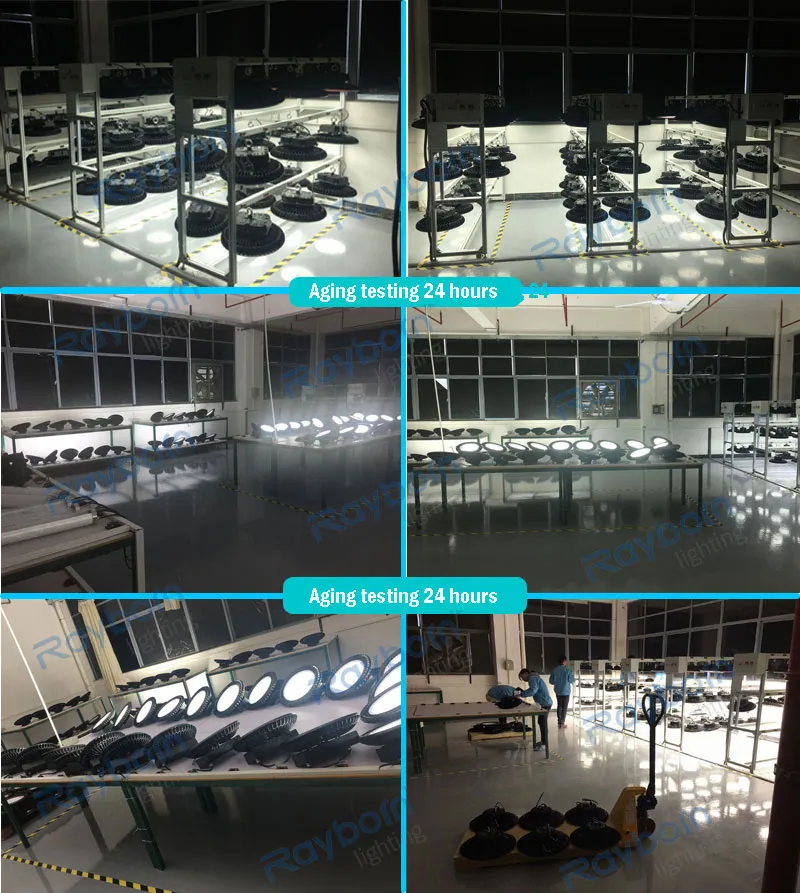

Quality Assurance & Aging Test
All manufactured lights undergo full-load aging testing for more than 24 hours. The aging process allows technicians to check and isolate potential defects like dead lights, flickering, and color variations. Recording checks are done every 3 hours.

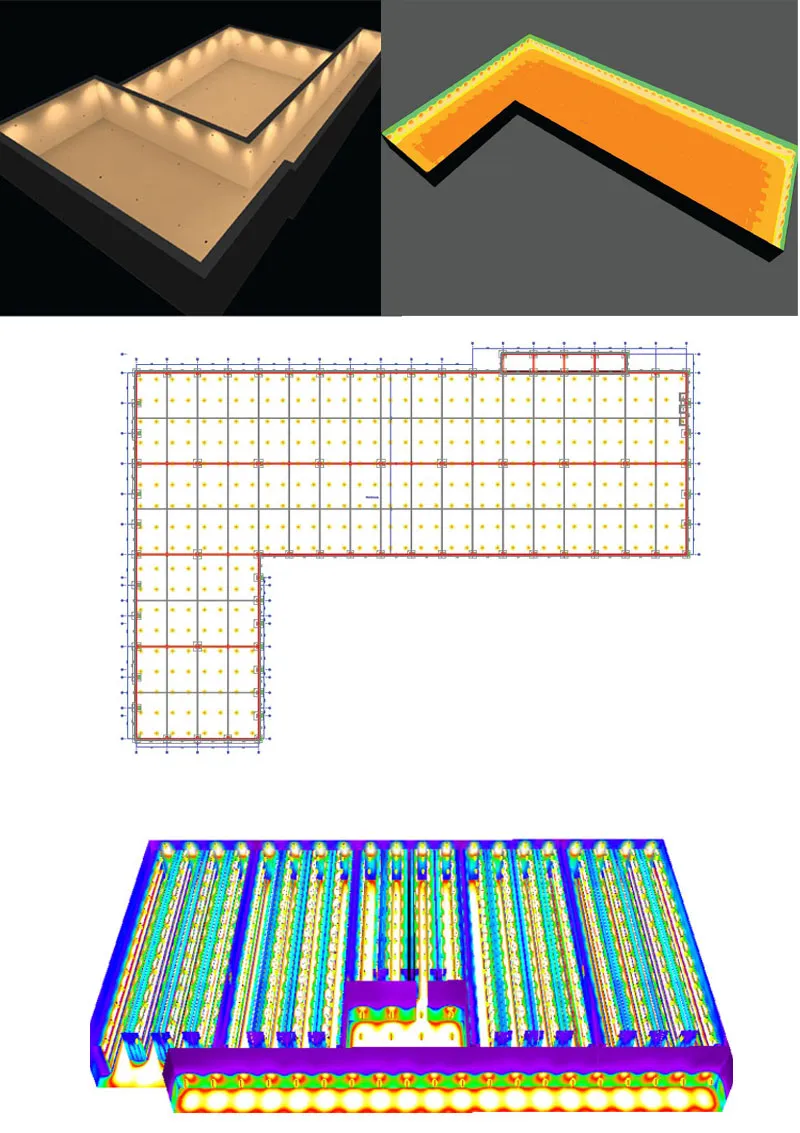

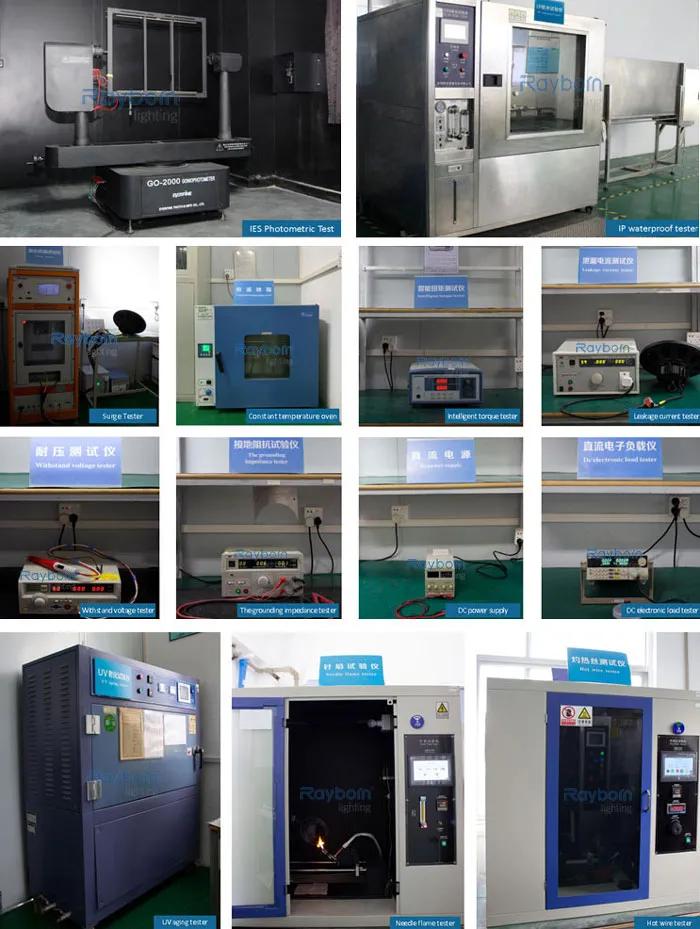

Testing Equipment & Simulation

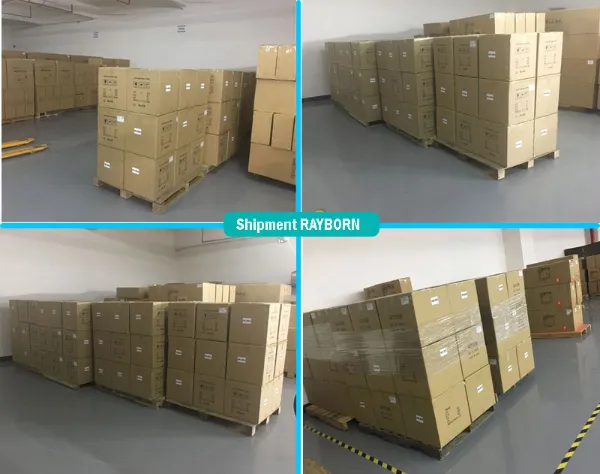

Packaging & Shipping

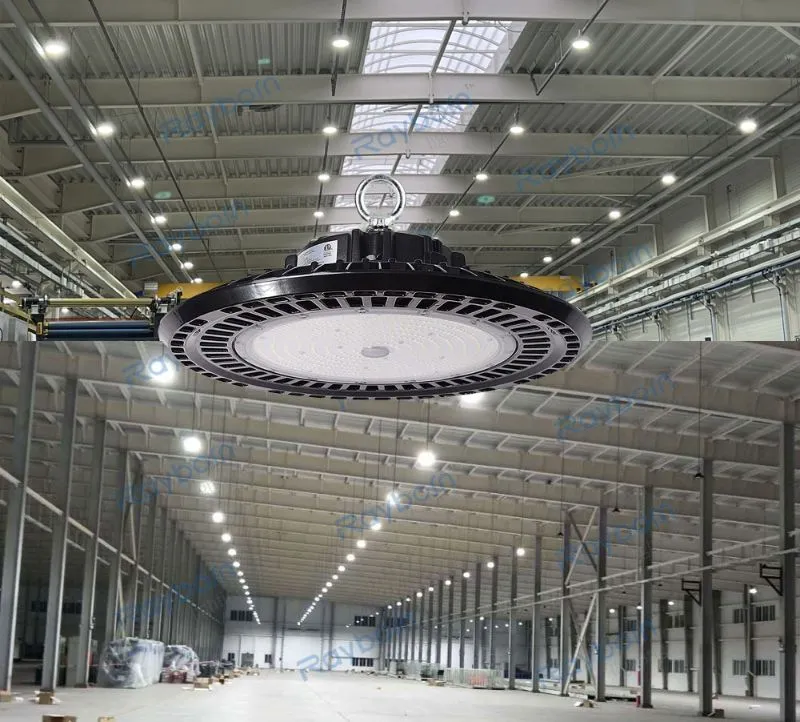

Applications
These industrial luminaires are widely used for both indoor and outdoor spaces, including:
Factories, workshops, warehouses, toll stations, gas stations, stadiums, major supermarkets, exhibition centers, commercial buildings, stadium halls, and parking structures.
Trade Terms
Payment Method
T/T, L/C, PayPal
Sample Lead Time
3-7 Working Days
Order Lead Time
10-15 Days

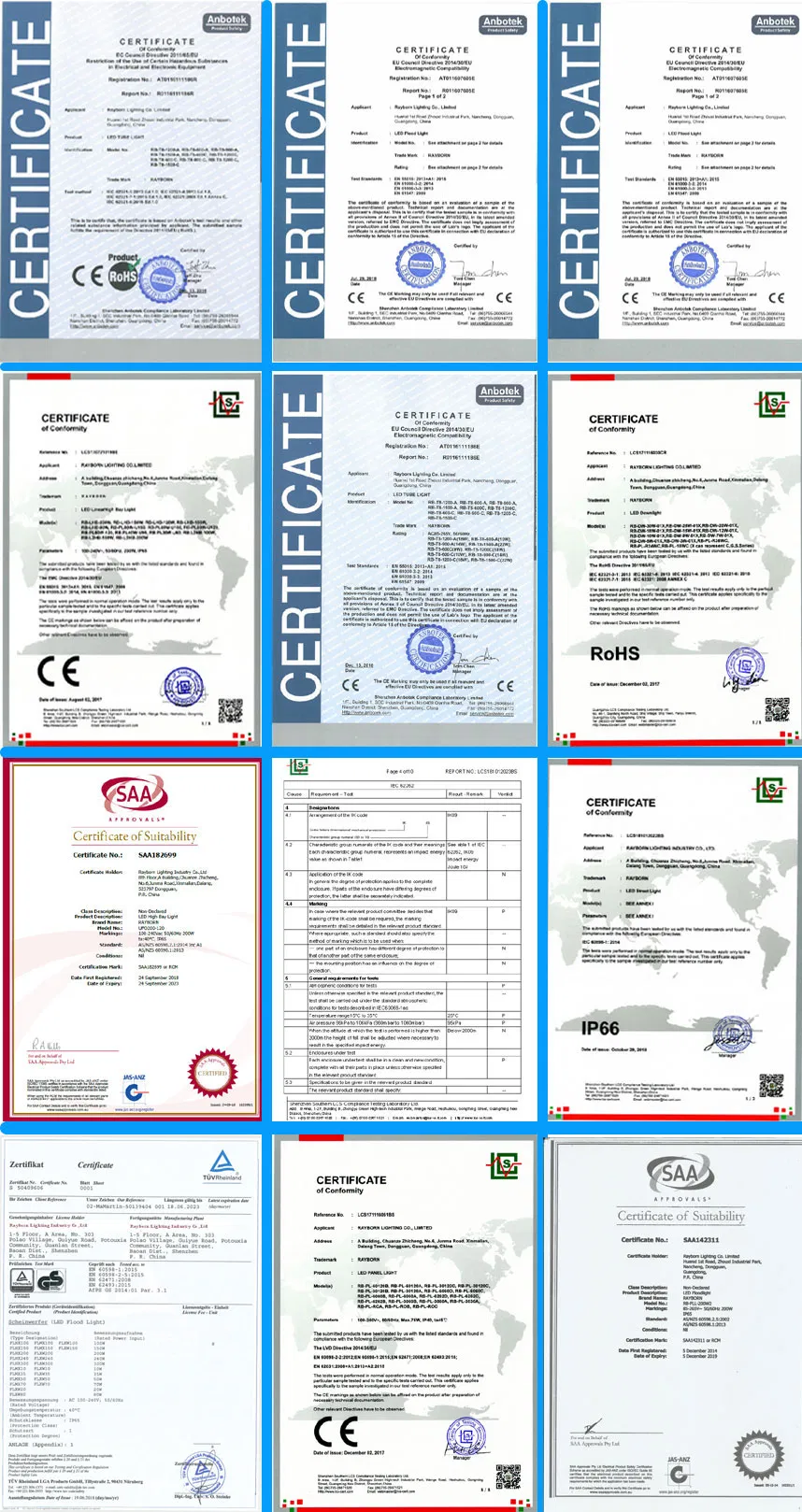

Product Certifications
Frequently Asked Questions (FAQ)
Q1: What is the warranty and lifespan of this UFO LED High Bay Light?
We provide a 5-year warranty on our UFO LED High Bay lights. The working lifespan is rated up to 50,000 hours under standard working conditions.
Q2: Can this high bay light be used in damp or outdoor environments?
Yes. The fixture features an IP65 waterproof rating, which prevents condensation and water ingress, making it highly suitable for both indoor and outdoor wet locations.
Q3: What dimming and smart control options are supported?
Our lights support standard 1-10V dimming. We also offer options for microwave motion sensors, Zigbee smart control, and Bluetooth smart control configurations.
Q4: How does the thermal management system work in this fixture?
The fixture is built using a specialized hollow aluminum casing and copper heat pipes. This combination accelerates heat transfer away from the LED chips via natural convection, maintaining the junction temperature below 85°C.
Q5: What beam angles are available for lighting distribution?
We offer 60°, 90°, and 120° beam angle reflectors to meet different light distribution specifications and ceiling heights in professional industrial sites.
Q6: Which safety and quality certifications do these lights hold?
Our LED High Bay lights are fully certified under CE, ETL, SAA, and RoHS standards to ensure regulatory compliance and high-performance safety.
