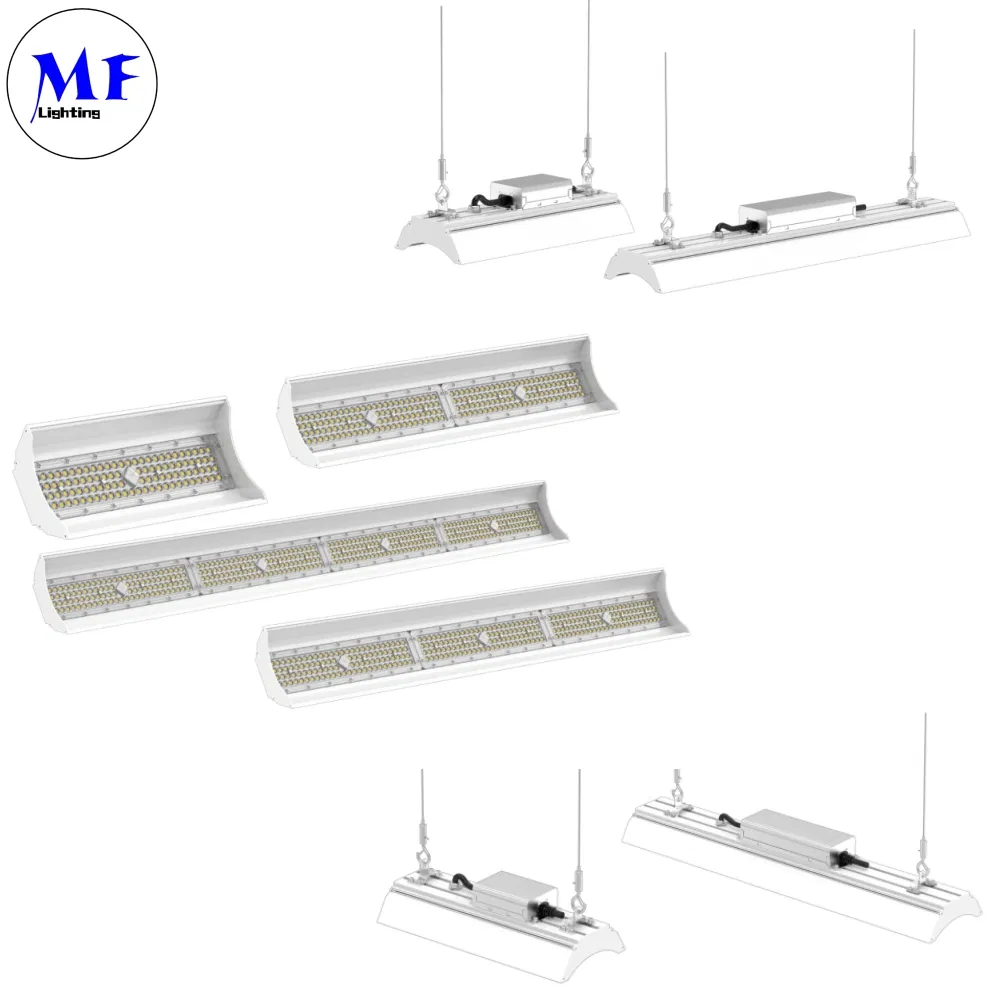

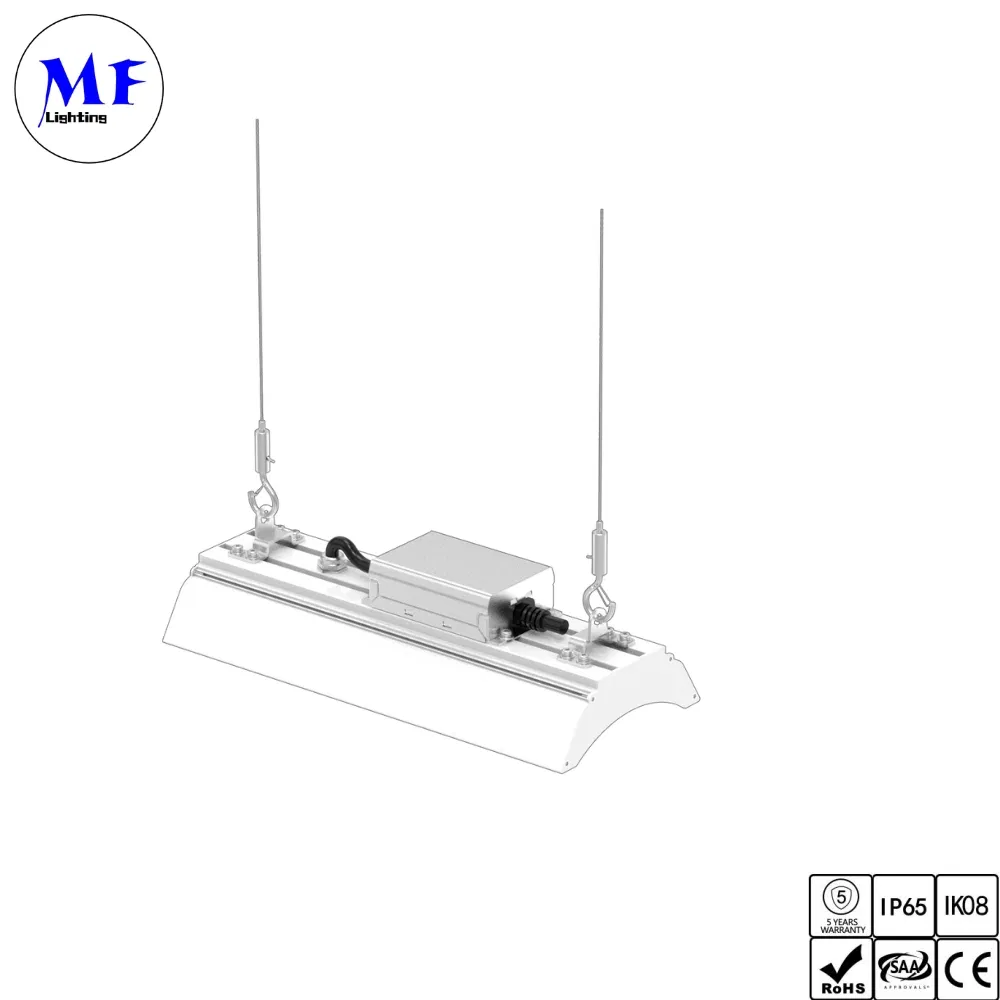

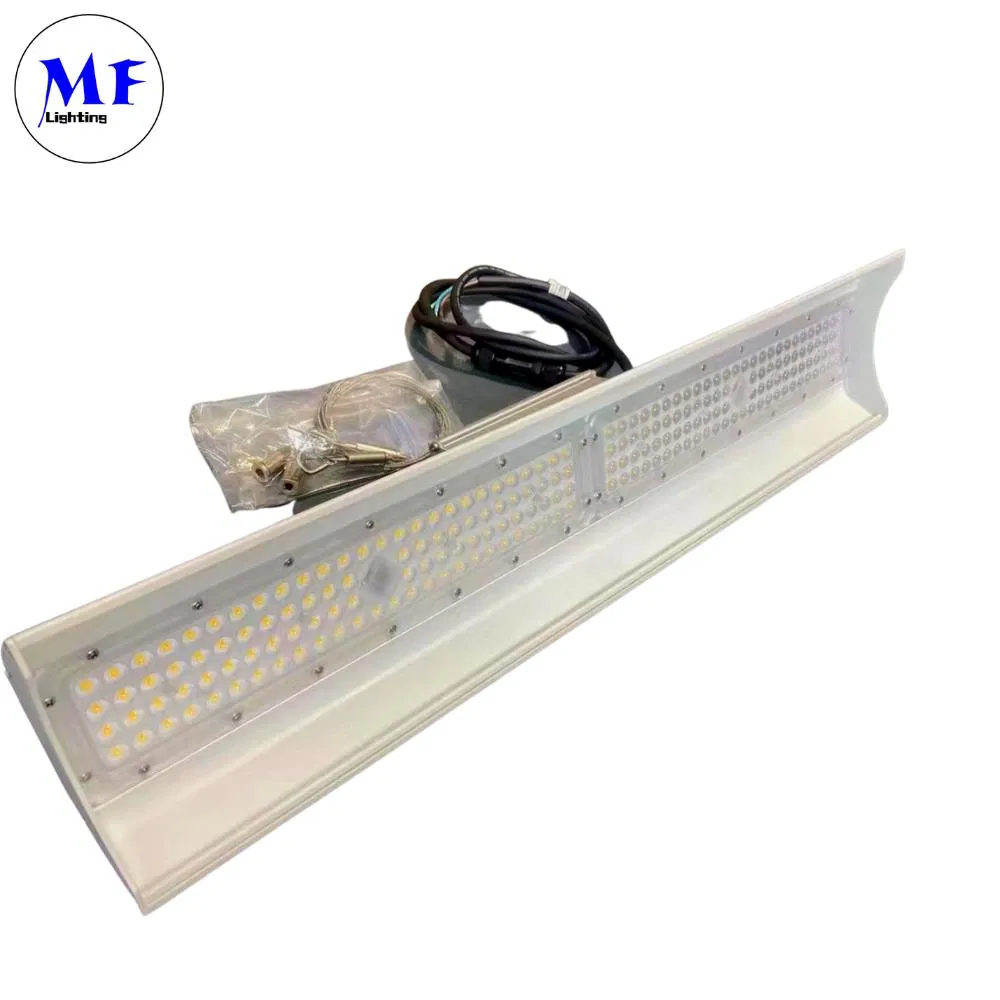

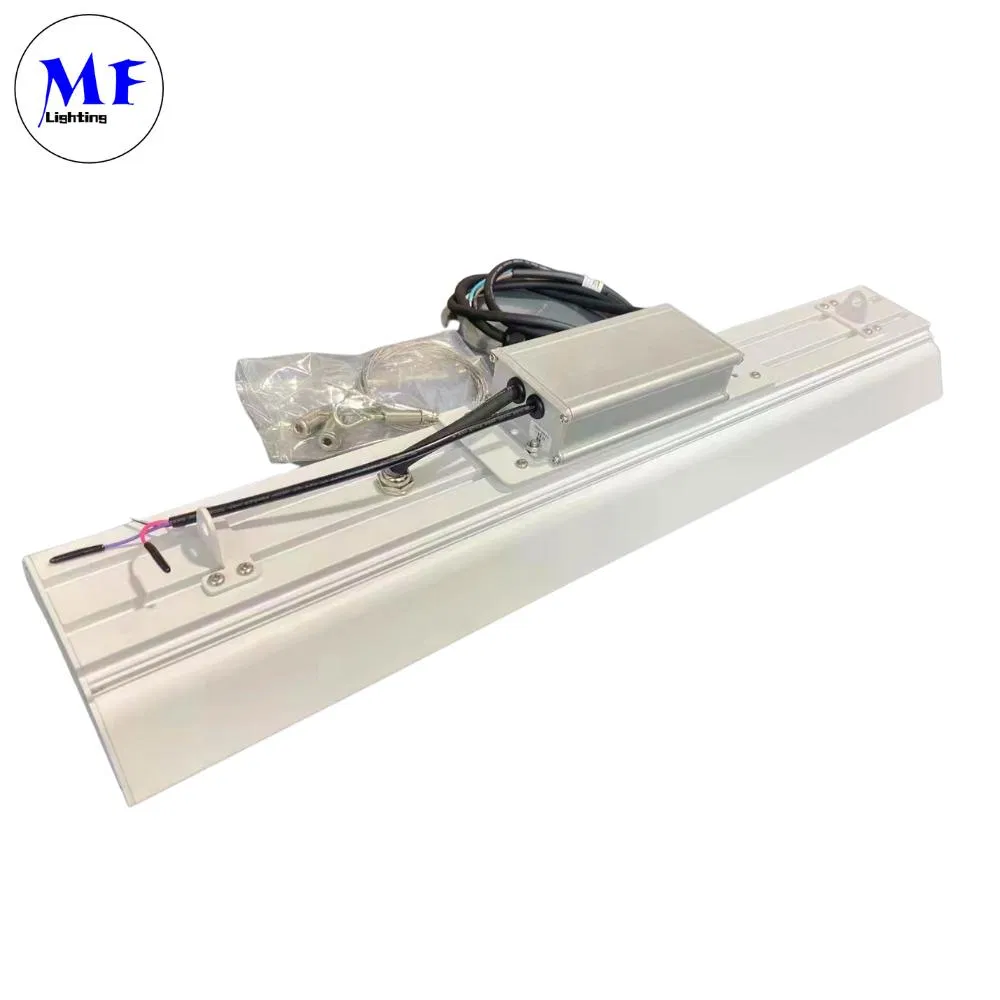

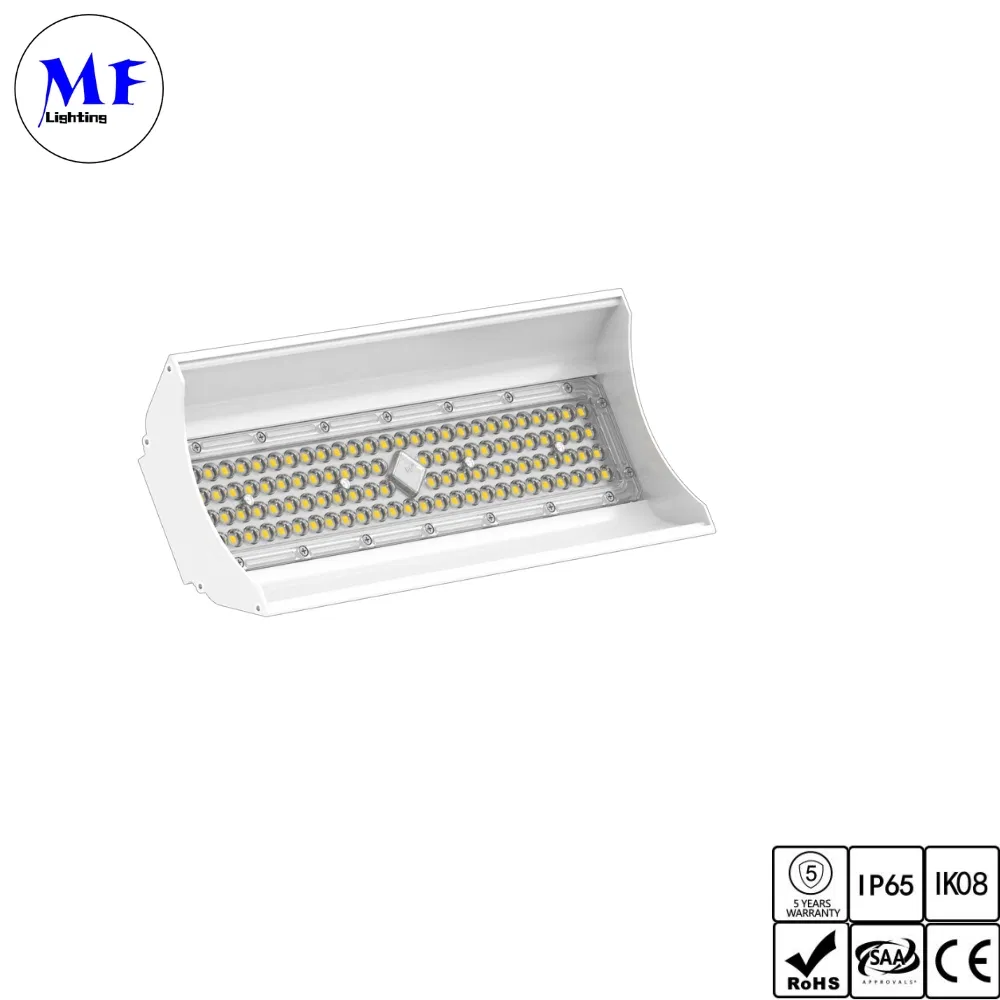

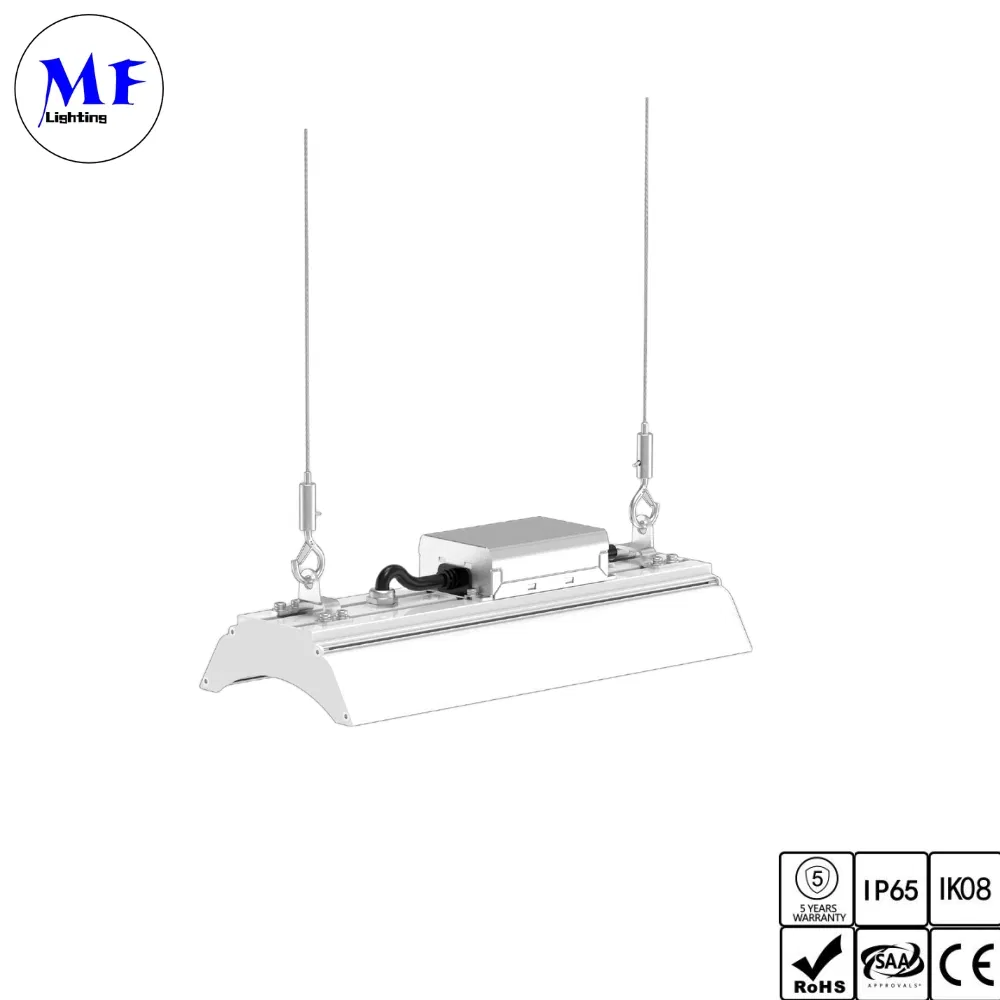

IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
1 / 5
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School

IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview Feature Specification Dimension Photometry Application Packaging
Basic Info
Model NO. Flamingo linear highbay 50W
Power 50W/100W/150W/200W
Usage Mine, Gymnasium, Warehouse, Shopping Mall, Factory, Tunnel, Stadium and Any other Outdoor Indoor
Lifespan ≥50000H
IP Rating IP65 / IP66
Certification CCC, CE, ETL, RoHS, SAA
Beam Angle Adjustable
LED Chips O-Sram or Lu-Mileds
CRI >70, >80ra
Material Aluminum+PC
Voltage AC100-277V 50/60Hz
Luminous Flux 140lm/W-150lm/W
Warranty 5 Years
Ik Rate Ik 08
Thd <10%
Light Control 1-10V / Dali Dimming
Reflector Aluminum Reflector
PF >0.95
Transport Package Carton Box
Origin China
Production Capacity 10000 pieces/Year
Product Description
IP65 IP66 Waterproof 50W Linear Ceiling LED High Bay Light with Aluminum Housing for Factory Restaurant Supermarket Shopping Mall and School
IP65 IP66 Waterproof 50W Linear ceiling LED high bay light with aluminum housing for factory restaurant supermarket shopping mall and school
Features
  • Lu-mileds chips, high brightness, low light decay & long life-time
  • International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V, DALI2.0)
  • Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.
  • Optical UV resistant PC lens with 94% light transmitance, IK08. Light Distribution: 25°/45°/60°/90°
  • Chain installation, bracket installation. Operation temperature: -35°C - +50°C
Specification
Power 50w
LED Chips O-SRAM
Luminous Efficacy 140~150lm/w
CCT 3000K-6500K
CRI(Ra) 70+/80+
Beam Angle 25/45/60°/90°
Driver Brand Mean-well / So-sen
Input Voltage AC100-305V; 50-60Hz
Power Factor >0.95
Output Voltage DC45V
Total Harmonic Distortion <15%
Driver Efficiency 92%
IP Rating IP66 / IP65
Lifespan 60,000 Hours
Housing Aluminum
Lens Material PC
Fixture Size 305*133*77mm
Carton Size 350*180*130mm
Net Weight 1.3KG
Gross Weight 1.6KG
Dimension

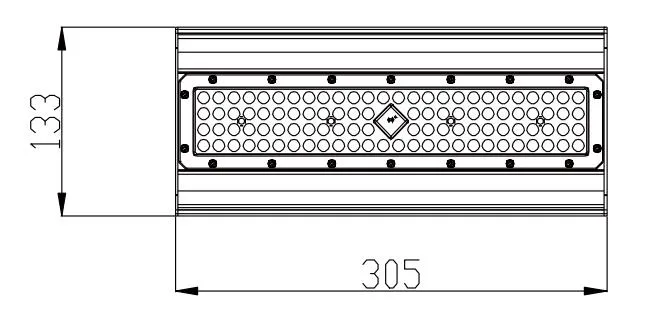

Dimension Image 1
Dimension Image 2
Dimension Image 3

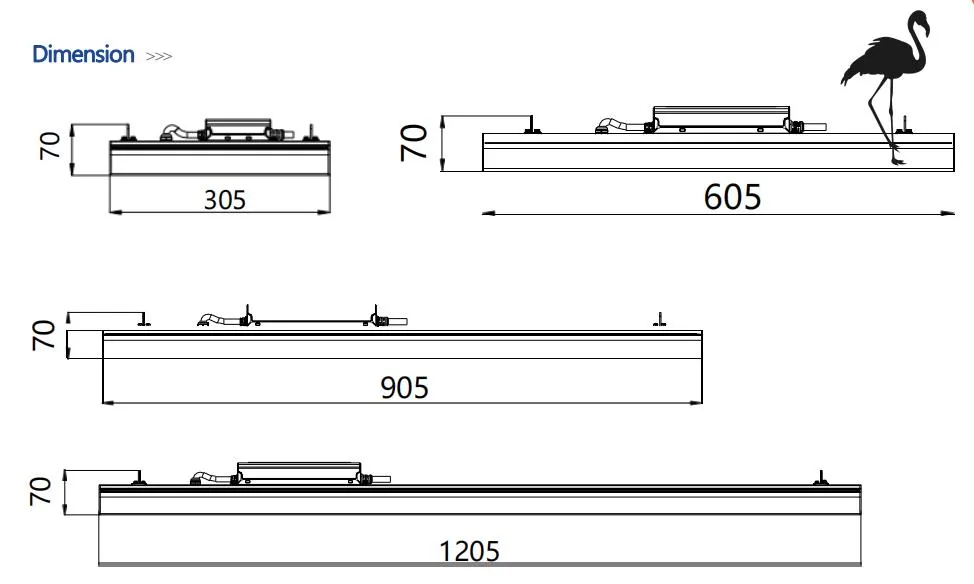

Dimension Layout Diagram
Photometry

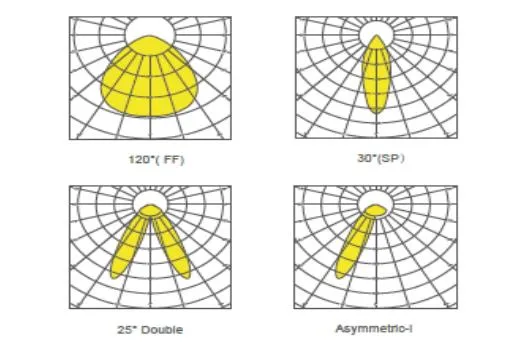

Photometry Chart 1

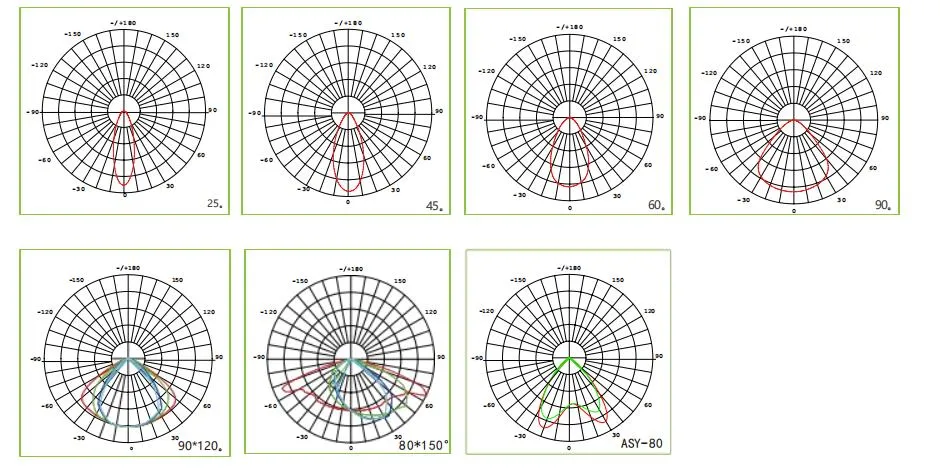

Photometry Chart 2
Application

LED High Bay Lights are versatile lighting solutions that can be used in a wide range of indoor and outdoor spaces with high ceilings. Below are some common applications:

1. Sports Venues: Gymnasium, badminton hall, and other indoor and outdoor sports venues.
2. Warehouses and Storage Facilities: Provide uniform and bright lighting that makes it easier to navigate the space and locate items.
3. Manufacturing Plants: Provide bright and efficient lighting for workers, designed to operate in high-temperature environments.
4. Gymnasiums and Sports Facilities: Bright and uniform lighting for indoor sports facilities like basketball courts and indoor soccer fields.
5. Retail Stores: Create a bright, welcoming environment and highlight products for a pleasant shopping experience.
6. Parking Garages and Outdoor Areas: Illuminate parking garages, loading docks, and construction sites to enhance safety and visibility.
7. Exhibition Halls and Event Spaces: Create a bright and inviting atmosphere, highlighting exhibits, stage areas, and key features.
8. Supermarkets & Shopping Malls: Enhance commercial lighting output and structural rendering.

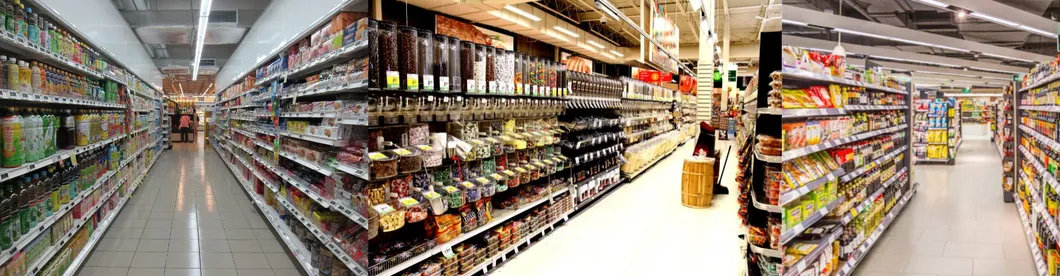

Application Instance 1

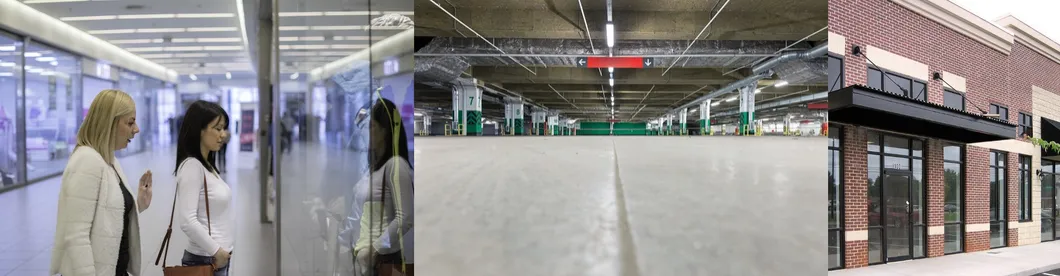

Application Instance 2

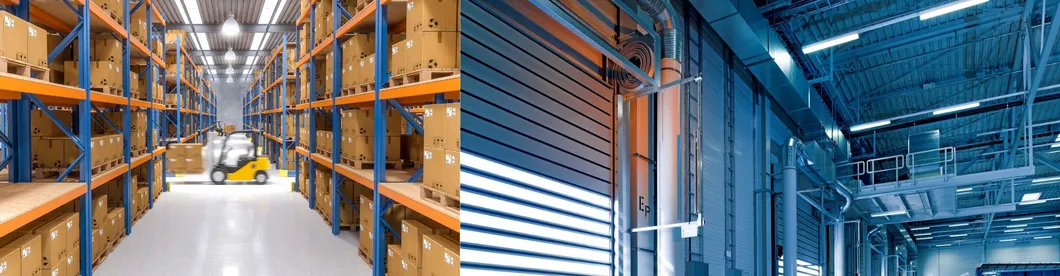

Application Instance 3

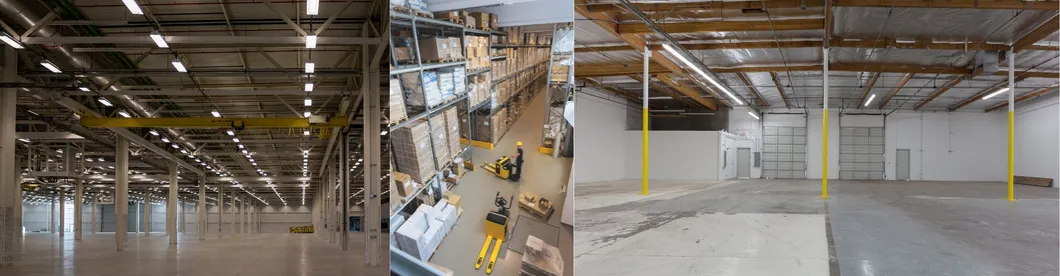

Application Instance 4
Detailed Application Scenario
Packaging
Packaging Detail 1
Packaging Detail 2
Packaging Detail 3

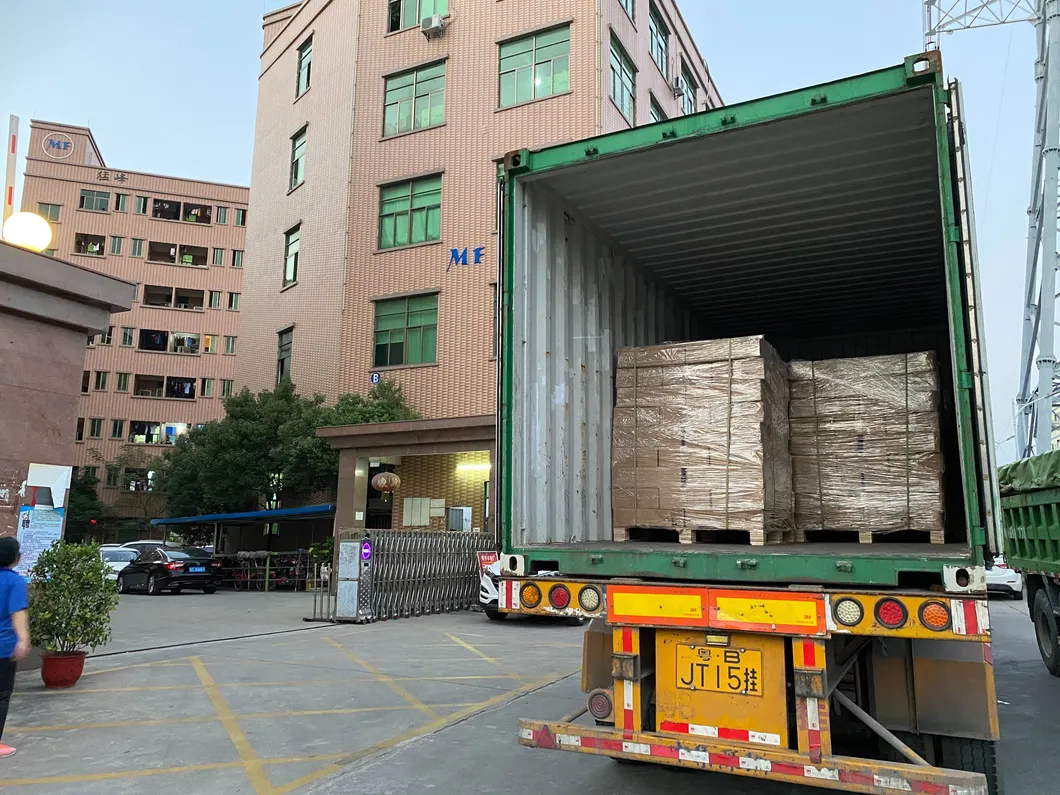

Packaging Box 1

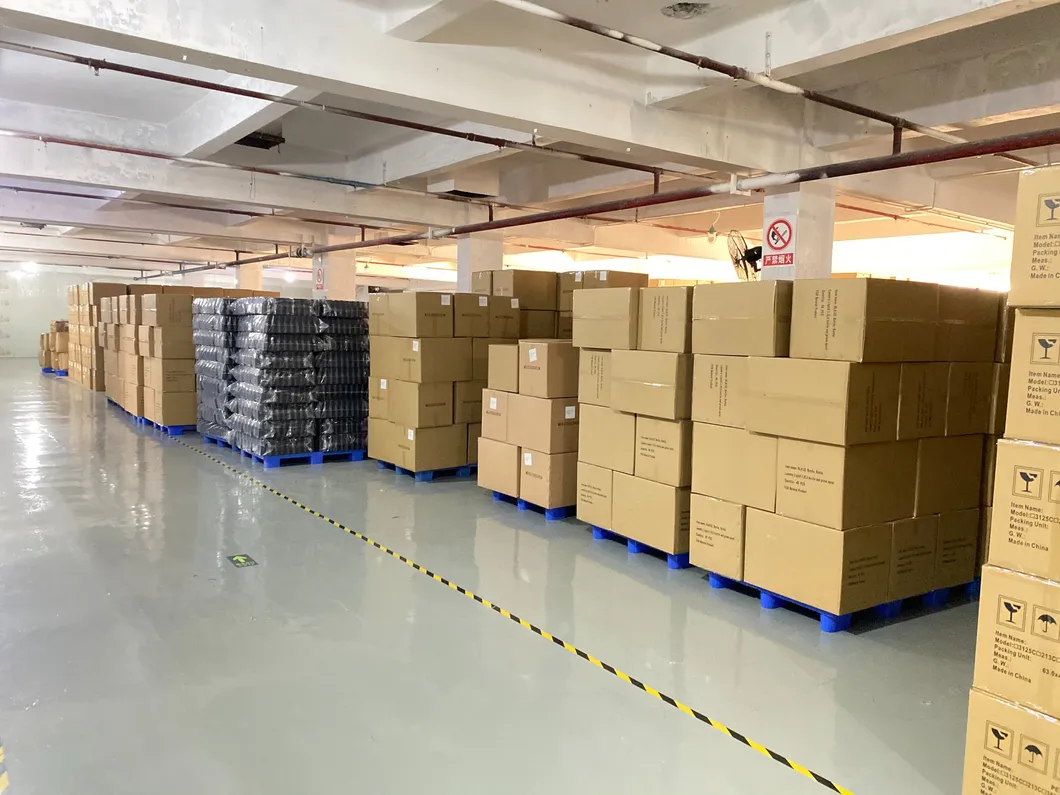

Packaging Box 2

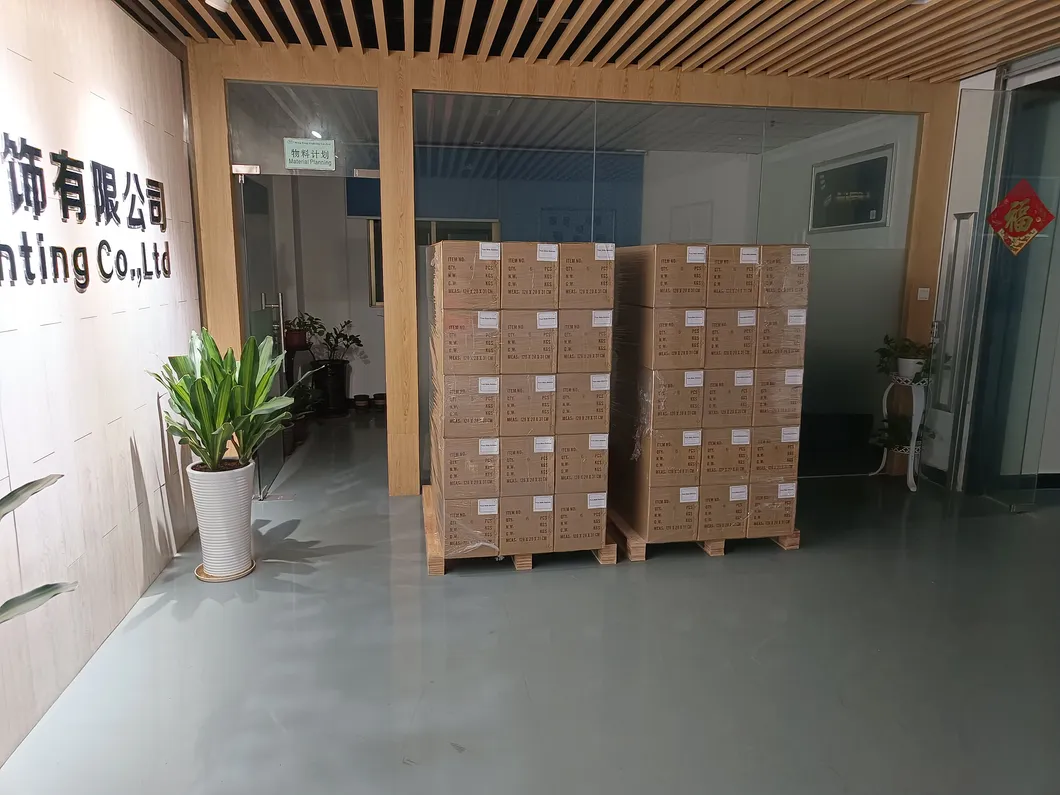

Packaging Box 3
Additional Packaging Info 1 Additional Packaging Info 2
Frequently Asked Questions (FAQ)
What is the lifespan of this Linear LED High Bay Light?
This Linear LED High Bay Light offers an exceptionally long lifespan of ≥50,000 to 60,000 hours, which significantly reduces the need for frequent replacements and maintenance.
Is this high bay light suitable for outdoor use?
Yes, it features dual IP65 and IP66 waterproof ratings, along with a rugged ADC12 aluminum housing, making it highly suitable for both indoor and demanding outdoor environments.
Does this fixture support dimming options?
Yes, the fixture supports both 1-10V and DALI dimming options for efficient and flexible light control.
What is the warranty period on this product?
We provide a comprehensive 5-year warranty on this product, ensuring high-quality performance and long-term reliability.
What light distribution angles are available?
Equipped with an optical UV-resistant PC lens, this high bay light provides multiple light distribution angles: 25°, 45°, 60°, and 90° to suit different ceiling heights and layouts.
