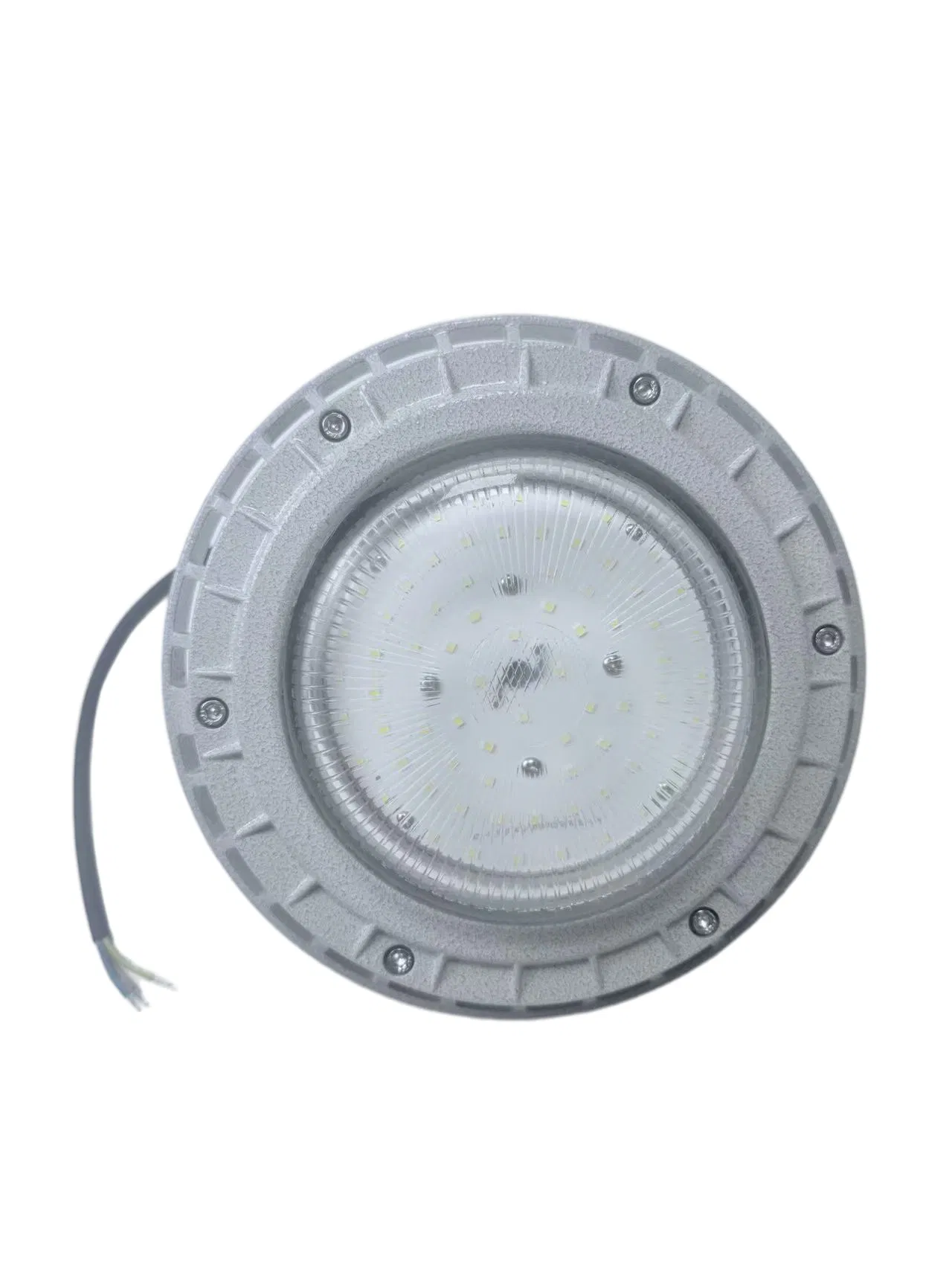

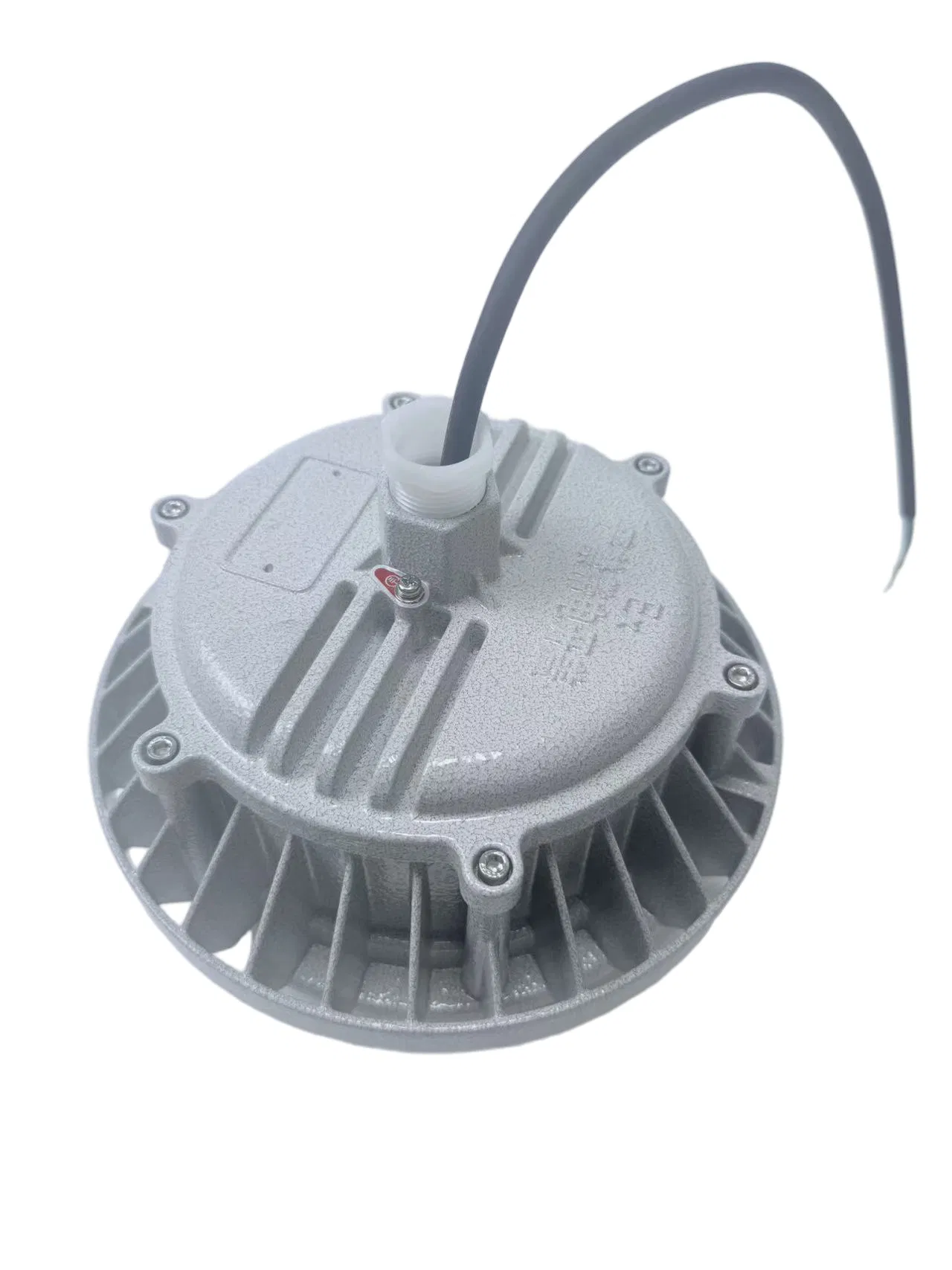

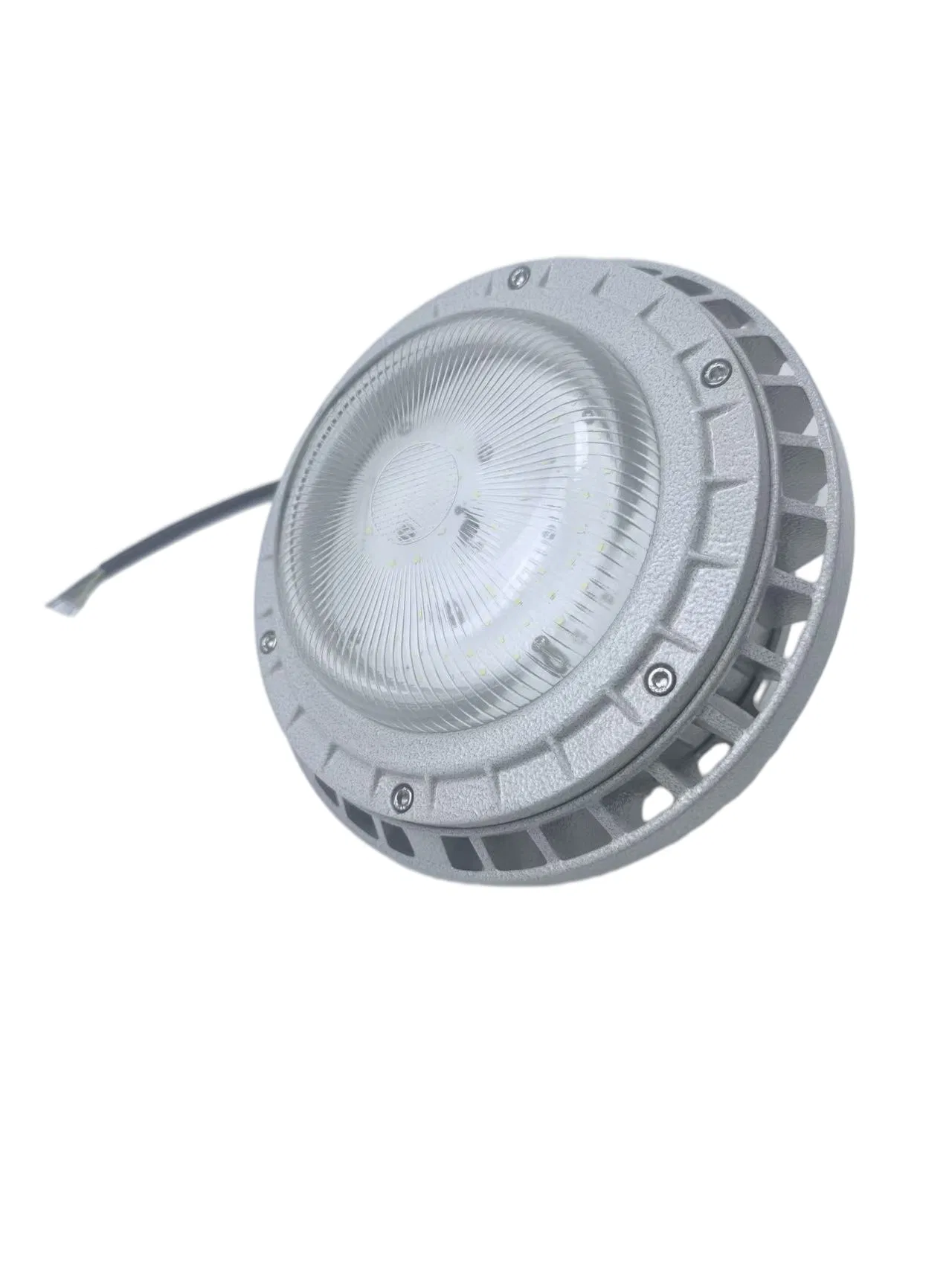

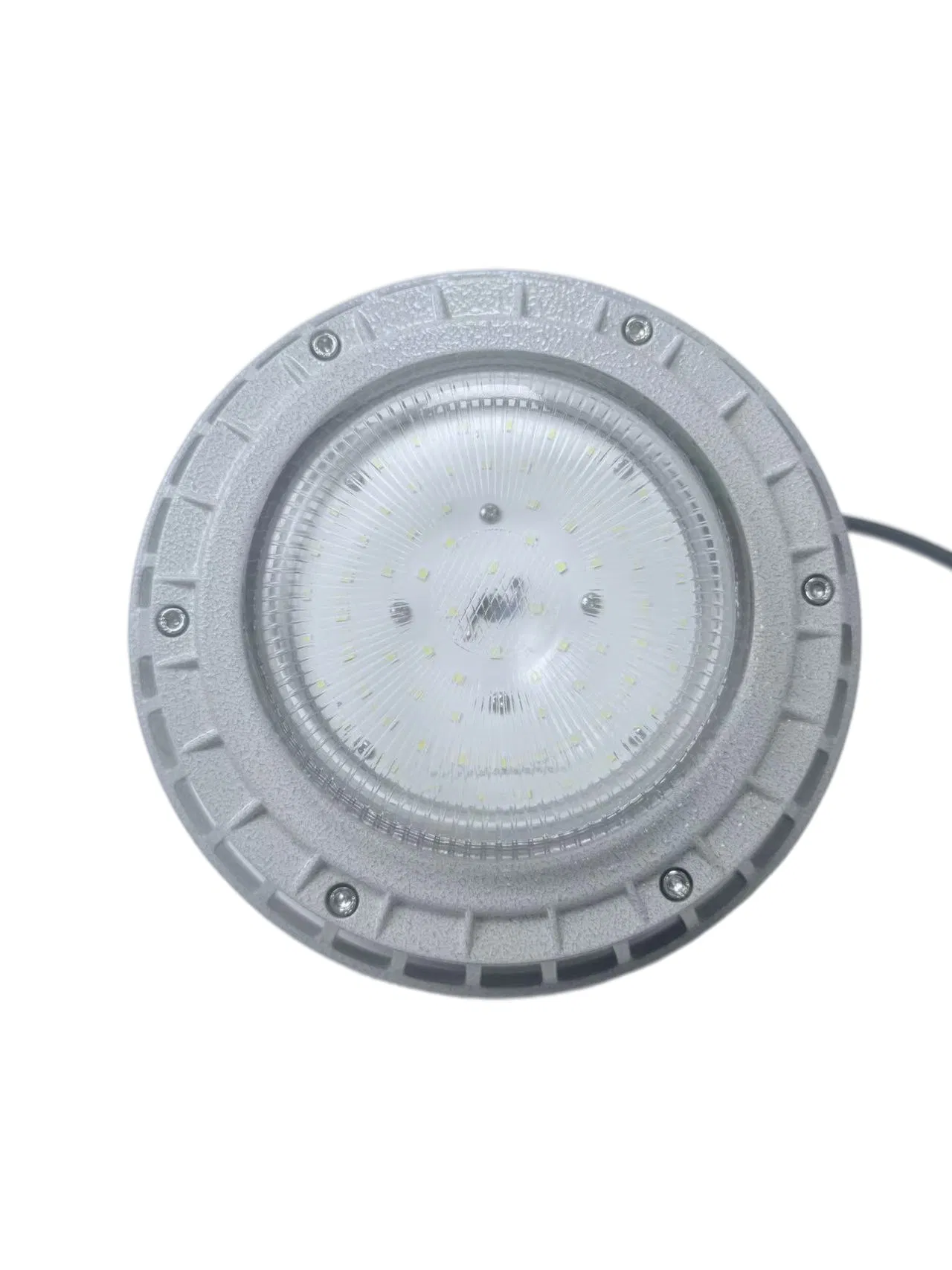

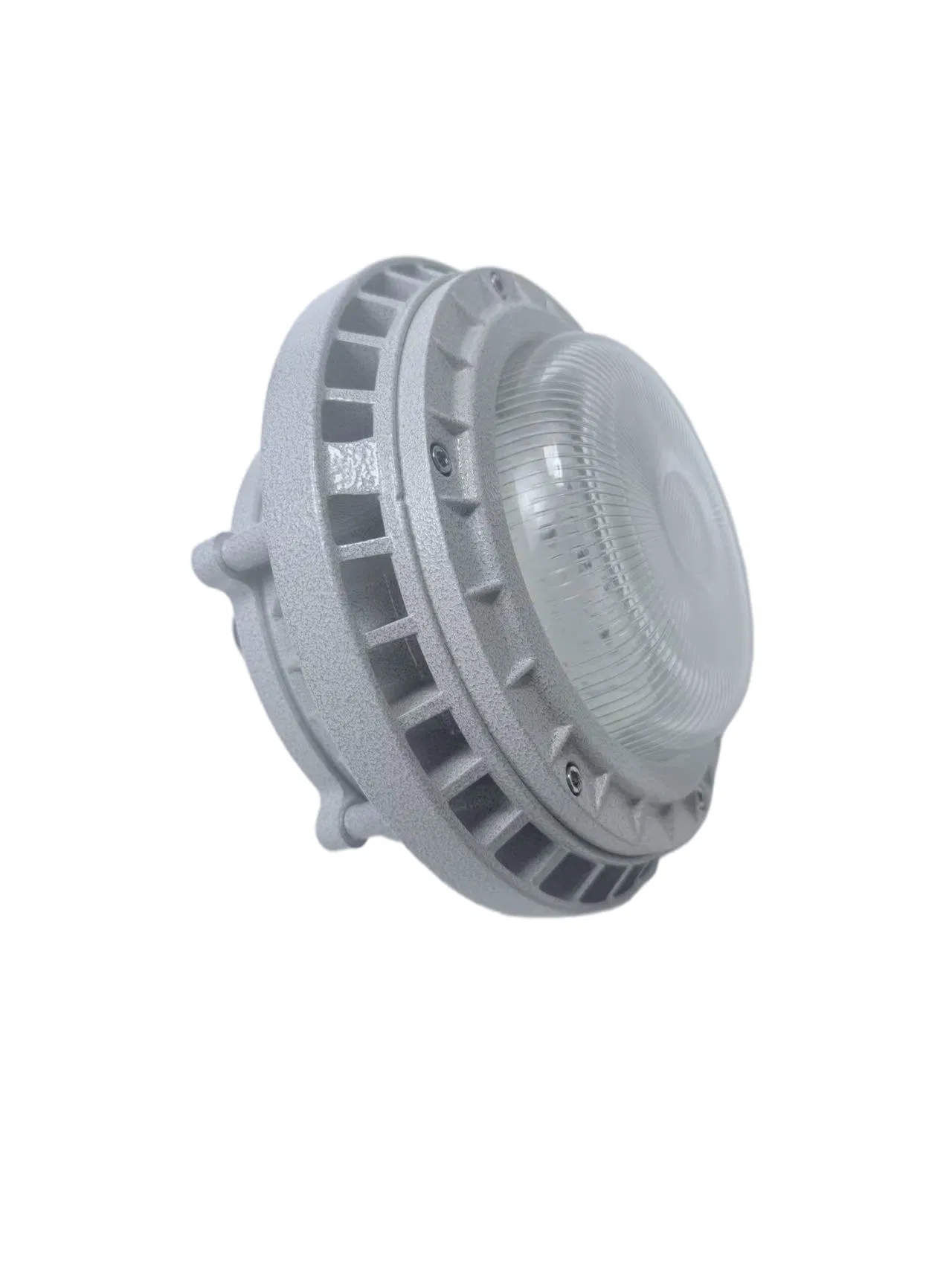

Hrd91-a-2 50W Explosion-Proof Lights Ex Proof Light Explosion Proof Light for Engine Room

Lamp Body Material: Aluminum
IP Rating: IP66
Base Type: Consulting Salesperson

Product Description

Basic Info

Model NO.
HRD91-A-2
Irradiated Area
15-30m²
Input Voltage
AC220V/DC24/36V
Power
20W-300W
Color Temperature
Warm White
Emitting Color
Warm White
LED Chips Brand
CREE
Transport Package
Consulting Salesperson
Specification
Consulting salesperson
Trademark
Consulting salesperson
Origin
China
Production Capacity
50000PCS

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg

Product Description

Hrd91-a-2 50W Explosion-Proof Lights Ex Proof Light Explosion Proof Light for Engine Room

An all-inclusive manufacturer of explosion-proof electrical (electronic) equipment, covering design, research and development, production, inspection, sales and after-sales services. The manufacturer mainly produces over 150 series and 1,200 types and specifications of explosion-proof electrical (electronic) equipment, including explosion-proof various enclosures (cabinets), explosion-proof operation columns, explosion-proof starters, explosion-proof circuit breakers, explosion-proof lamps, explosion-proof air conditioners, explosion-proof switch buttons, explosion-proof plugs and sockets, explosion-proof plug-in devices, explosion-proof fans and blowers, and explosion-proof pipe fittings accessories. The explosion-proof products are mainly applicable to explosion-proof gas environments of Class IIA, IIB, and IIC, as well as dust environments of Zone 20, 21, and 22 in Class 2, 3, and 4 areas. They are widely used in environments prone to flammability and explosion, such as petroleum, chemical industry, coal mines, power, gas stations, etc., and are also widely applied in fields like metallurgy, medicine, food, bioengineering, hazardous chemical warehouses, paint workshops, laboratories, aerospace engineering, etc.

  • The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity.
  • Exposed stainless steel fasteners with high corrosion resistance.
  • The flame-proof thread flame-proof joint surface of the rabbet has a pure flame-proof structure and more reliable explosion-proof performance.
  • Standard three box separation structure design, modular installation and combination. Effectively reduce temperature rise to ensure long life of lamps.
  • Multi point lighting, high light utilization, uniform illumination without glare.
  • High strength material, transparent tempered glass, with strong impact resistance, heat resistance and high light transmittance.
  • The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc.
  • Power factor cos φ ≥0.95.
  • Steel pipe or cable wiring.

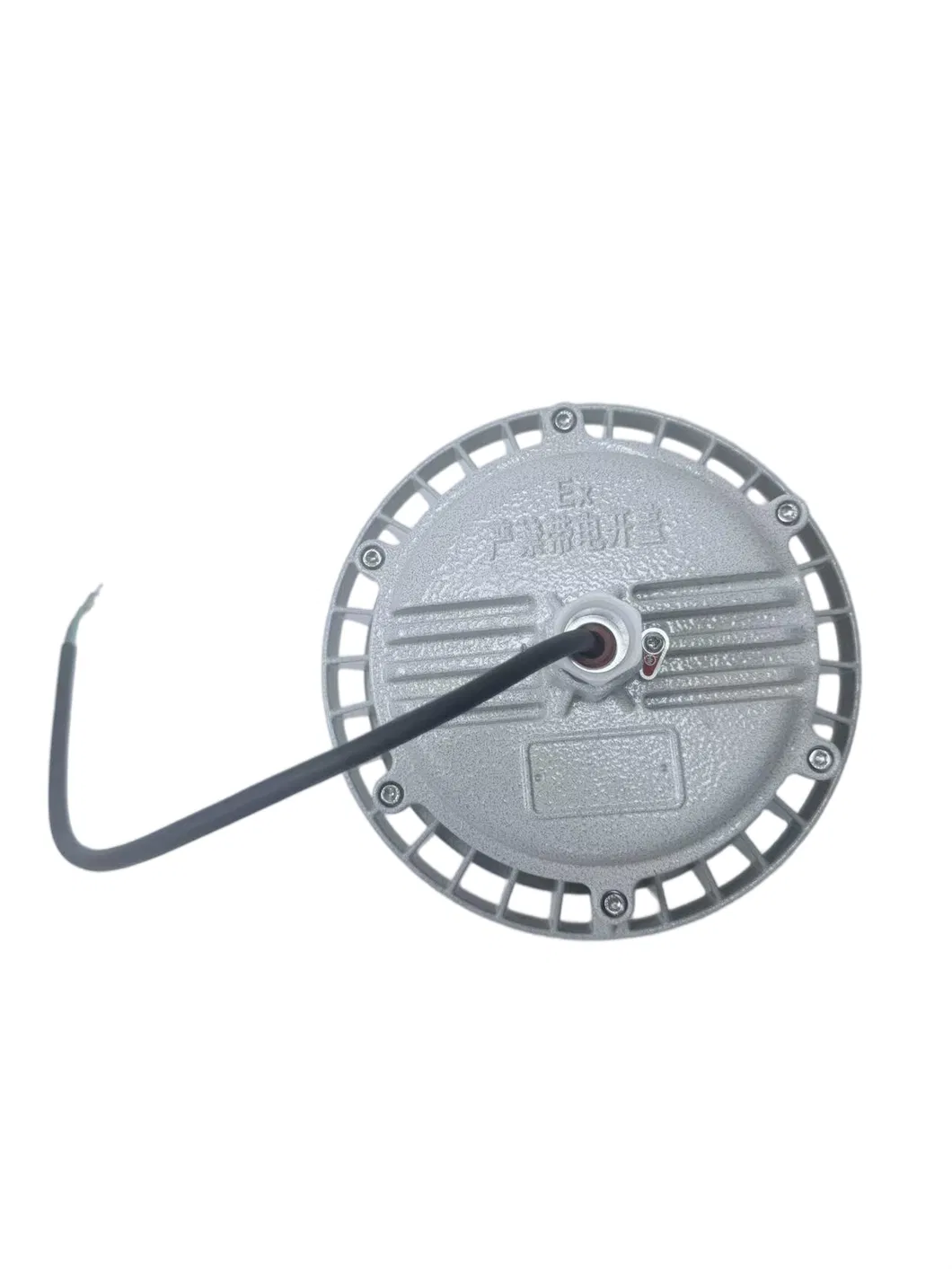

Product Layout 1 Product Layout 2 Product Layout 3
Product Layout 4 Product Layout 5 Product Layout 6
Model and specification Explosion proof sign Light source Lamp type Power (W)
HDR91-A-2 Ex db IIC T6 Gb
Ex tb IIIC T80ºC Db
LED I 50
II 105
III 200
IV 300
Rated voltage/frequency Inlet thread Cable outer diameter Degree of protection Anti corrosion grade
220V/50Hz G3/4 Φ10~Φ14mm IP66 WIF1/WF2
Explosion Proof Detail Explosion Proof Detail Explosion Proof Detail
Additional Detail 1 Additional Detail 2 Additional Detail 3

Frequently Asked Questions

Q Are you a manufacturer or a trading company?
We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.
Q What fields are your products used in?
They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.
Q What kinds of transportation methods do you support?
We support DHL, UPS, FedEx, and maritime transportation.
Q Will you accept customized requests?
Our explosion-proof lights have a customized range. You can communicate with our sales representatives to place an order.
Q What is the ingress protection and anti-corrosion rating of this light?
The degree of protection is IP66, and the anti-corrosion grade is WIF1/WF2.
Q What are the explosion-proof marking specifications for Model HRD91-A-2?
The explosion-proof signs are: Ex db IIC T6 Gb and Ex tb IIIC T80ºC Db.
