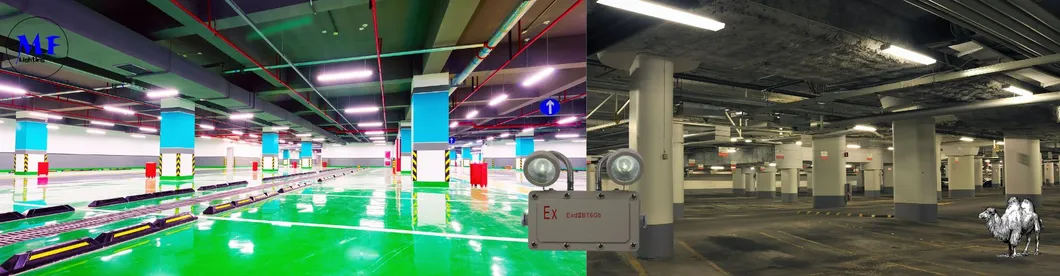

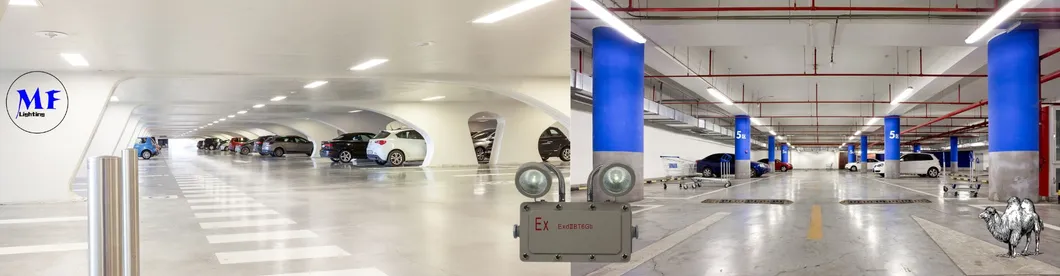

Suitable for tunnels, mines, chemical warehouses and other environments

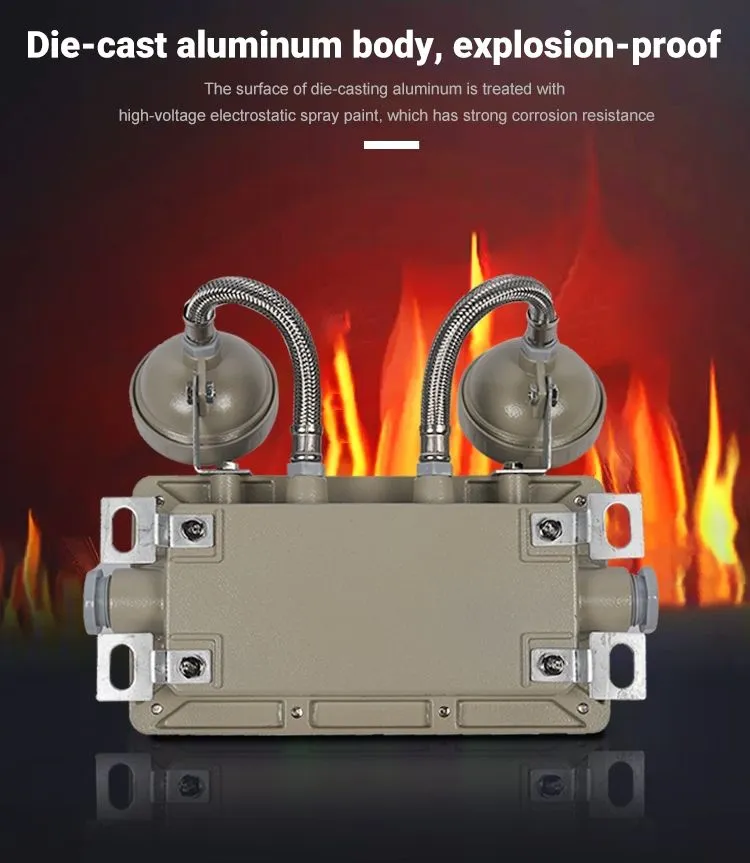

Die-casting aluminum technology, solid and durable
Toughened glass, sturdy and drop-resistant
5W high brightness light source

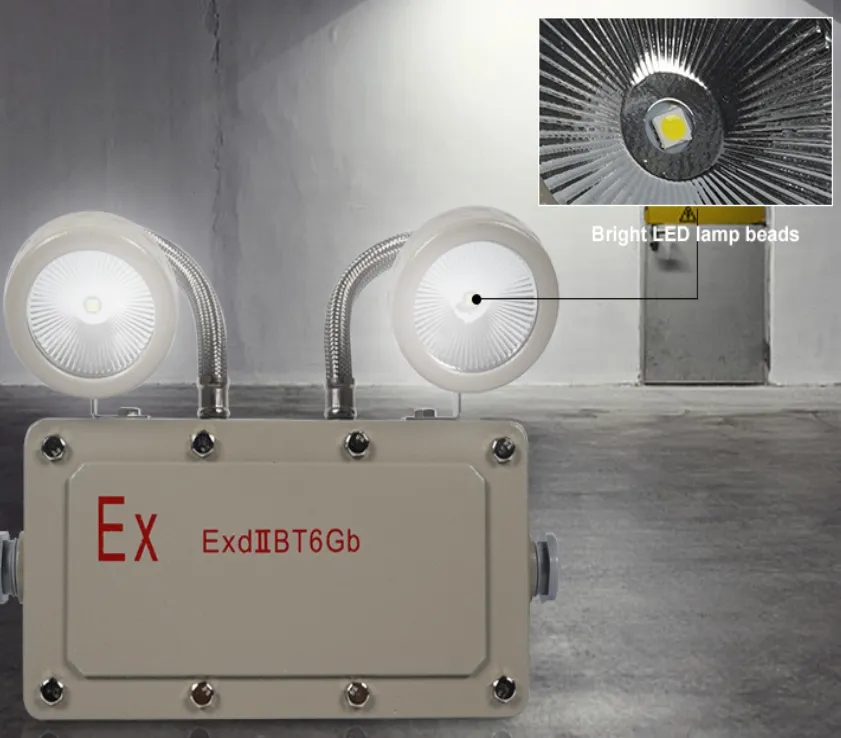

Bright LED light source
Balanced lighting, no dark areas, large-angle illumination is better

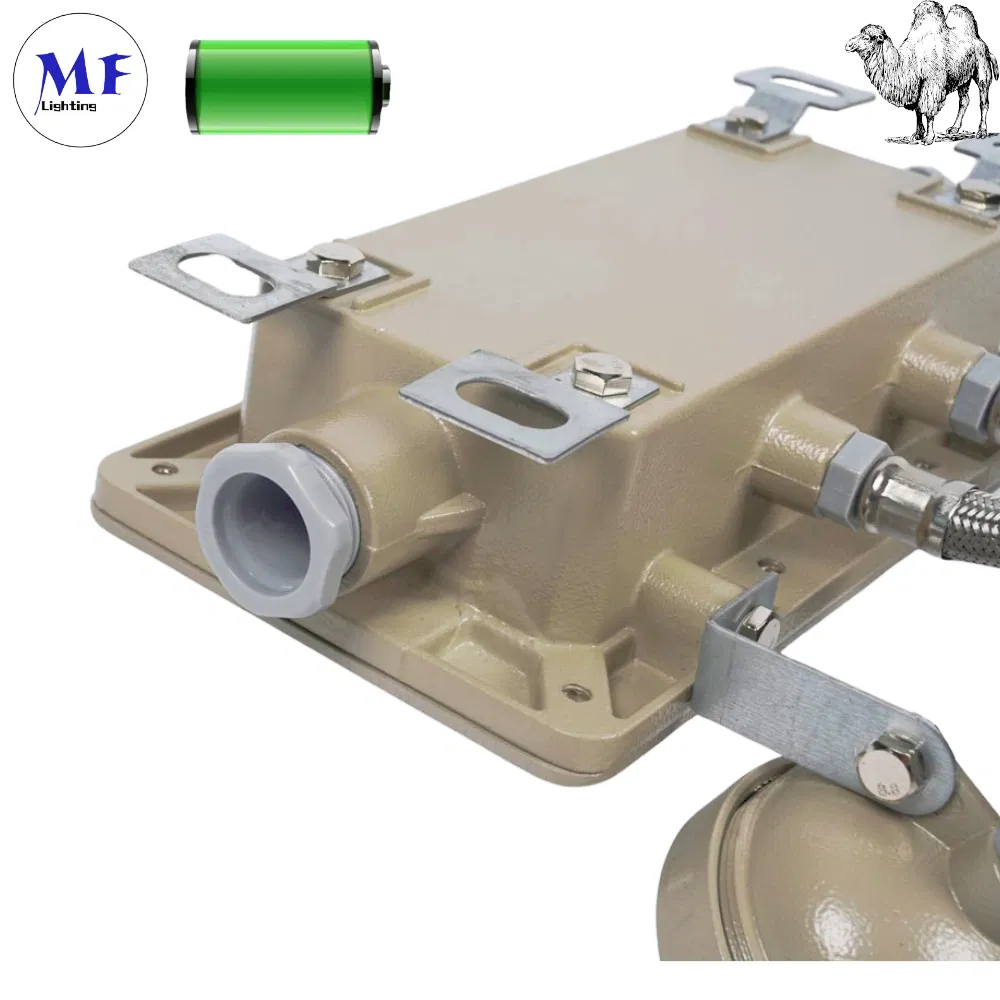

Aluminum one-piece die-casting
The material is solid, heavy and durable, and the heat dissipation effect is outstanding

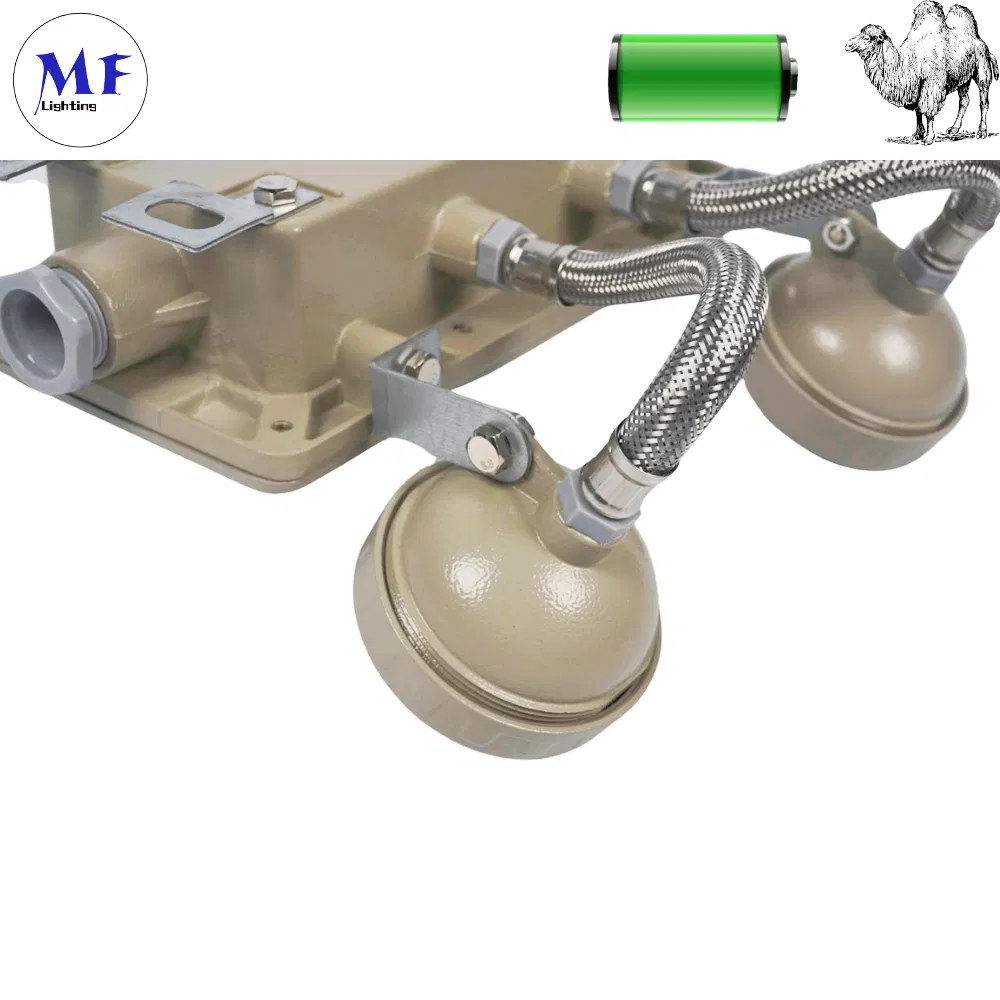

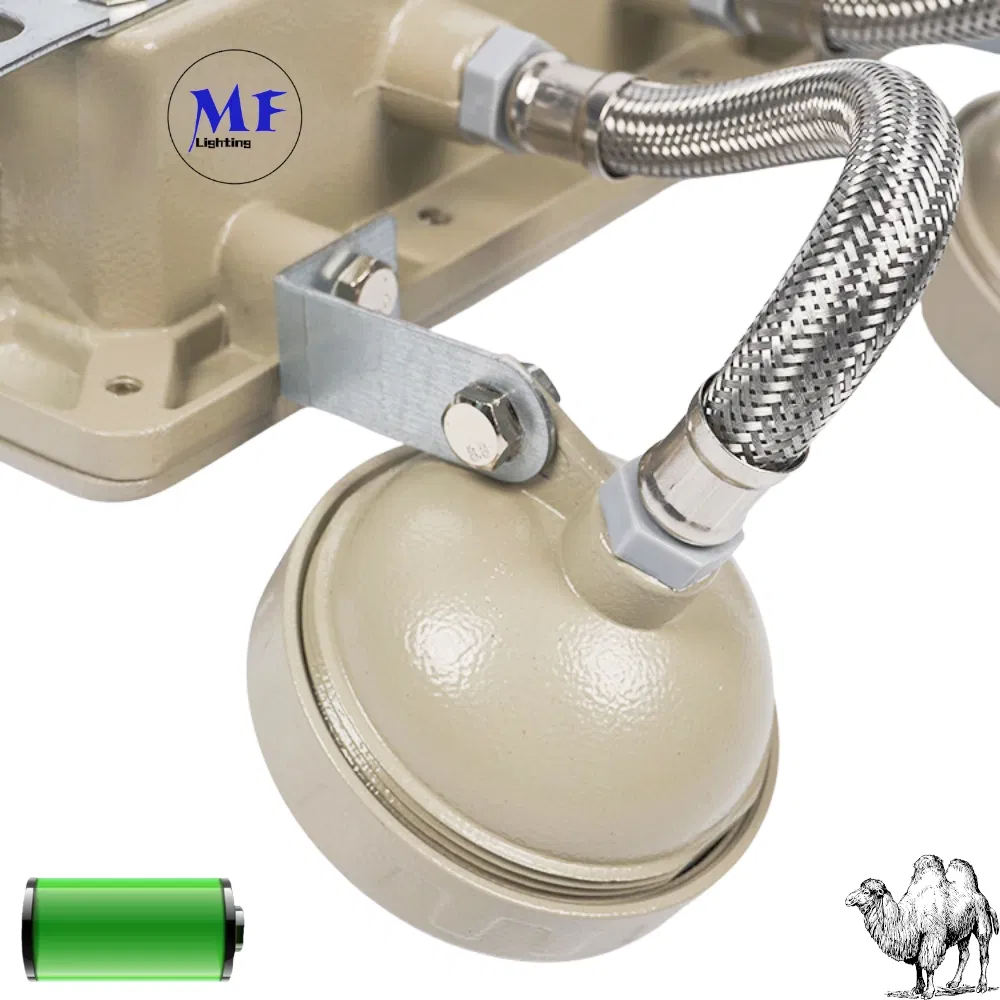

Stainless Steel Waterproof Hose

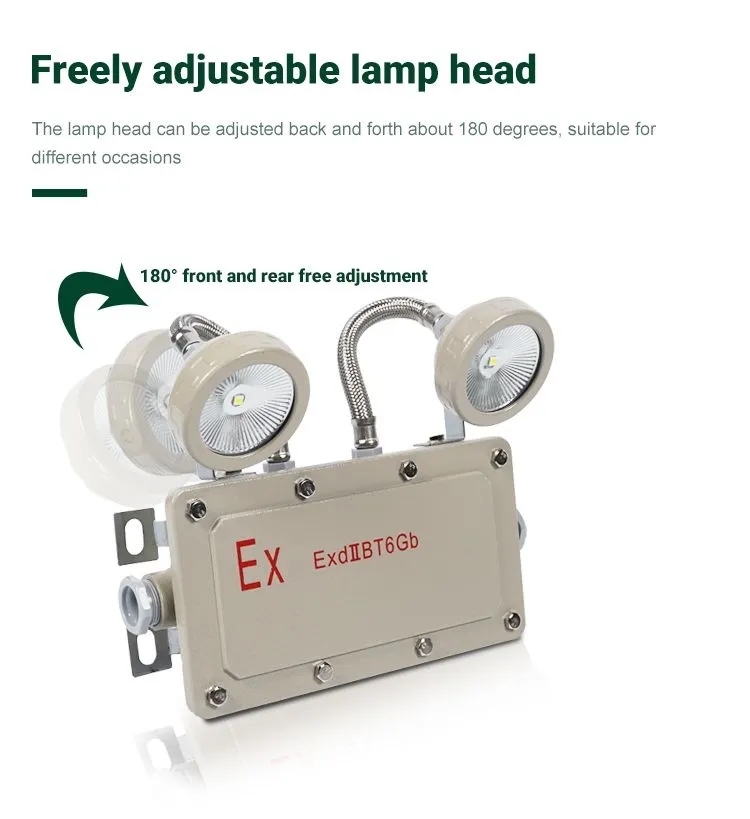

It is suitable for various complex environments and the illumination angle can be converted at will
| Lighting Data | Electrical Data | ||
|---|---|---|---|
| LED Type | Cree CREE | Power Supply | IEC certified driver |
| System Efficacy | 110lm/W | Input Voltage | 100~240V ac |
| System Power Consumption | 2x5W | Power Frequency | 50~60Hz |
| CCT | 6000K | Charging Time | 24 H |
| Beam Angle | 90° | Discharging Time | 3H |
| CRI | Ra80 | Power Efficiency | >90 |
| Lens | Clear/Mist | Power Factor | >0.90 |
| SDCM | <5 | Battery | Lithium Battery 1.2V800mAh |
| Material Data | Packing Data | ||
| Fixture Material | Metal +Alu.+Temple glass | Junction Temperature(Tj) | <70ºC(Ta=30ººC) |
| Powder Coating | AkzoNobel | Storage Temperature | -40~+80ºC |
| Cable | 3x 0.75mm | Operating Temperature | -40~+60ºC |

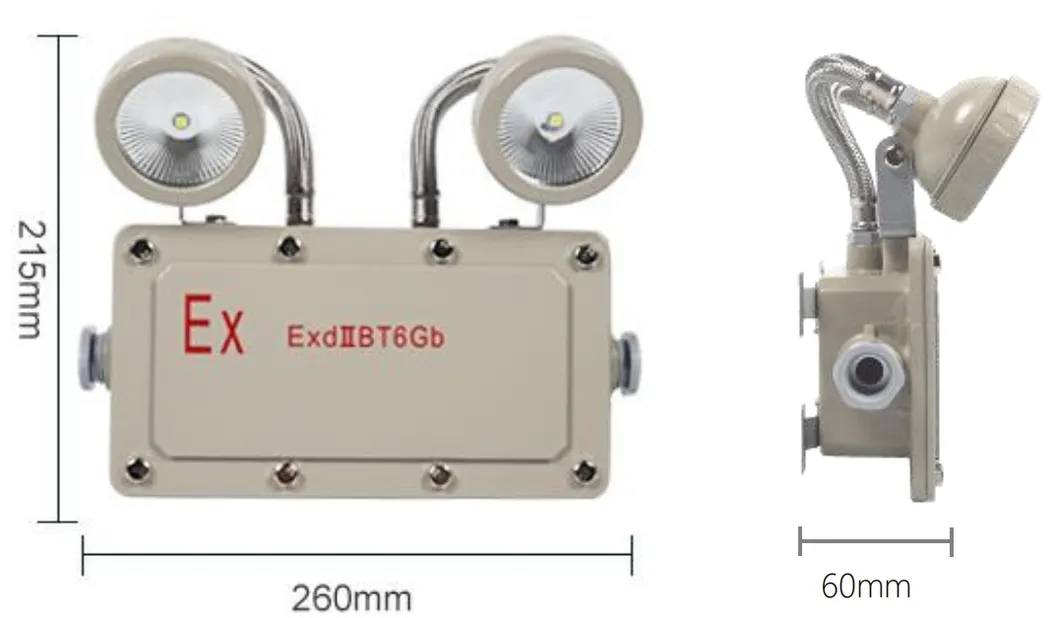

| Ingress Protection | IP66 | Outlook Size(MM) | 260×60×215 |
| Life Span | 10 years at 12 hours/day | Export Carton Size | 57x46x25.5CM/8pcs/10KG |

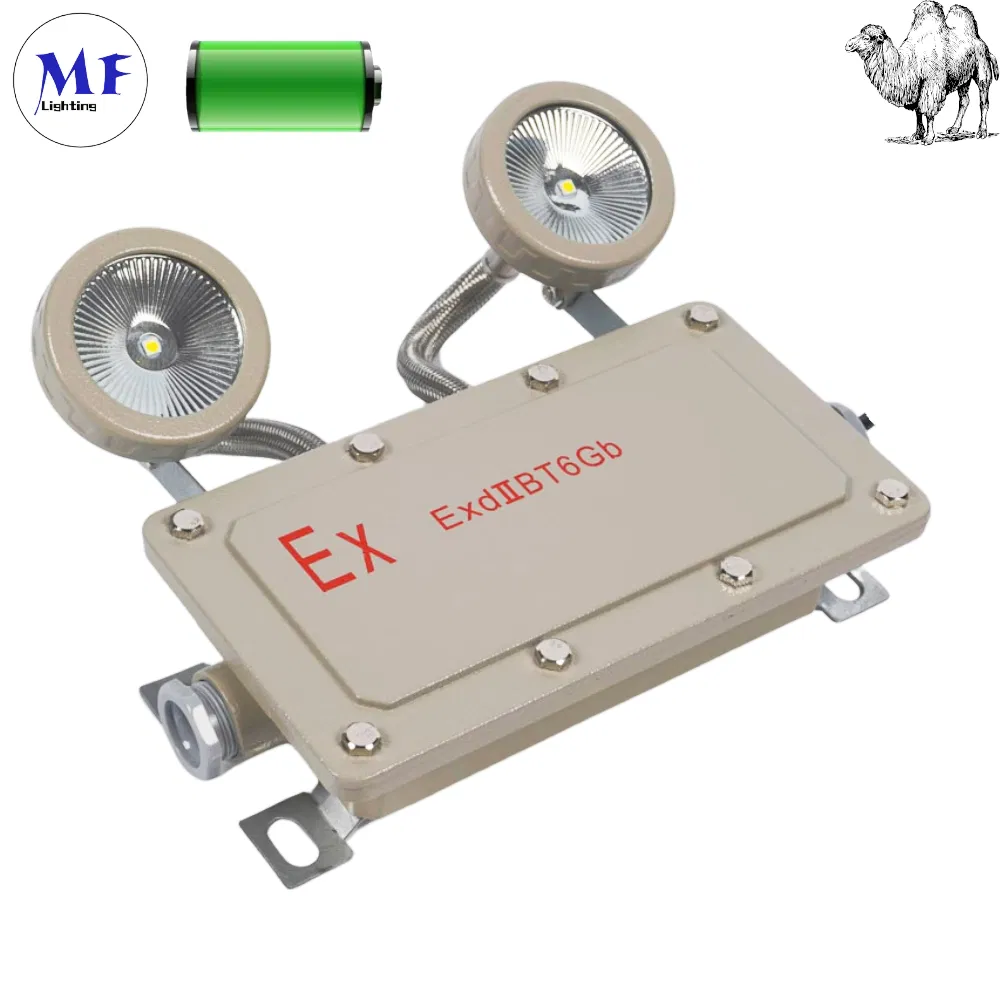

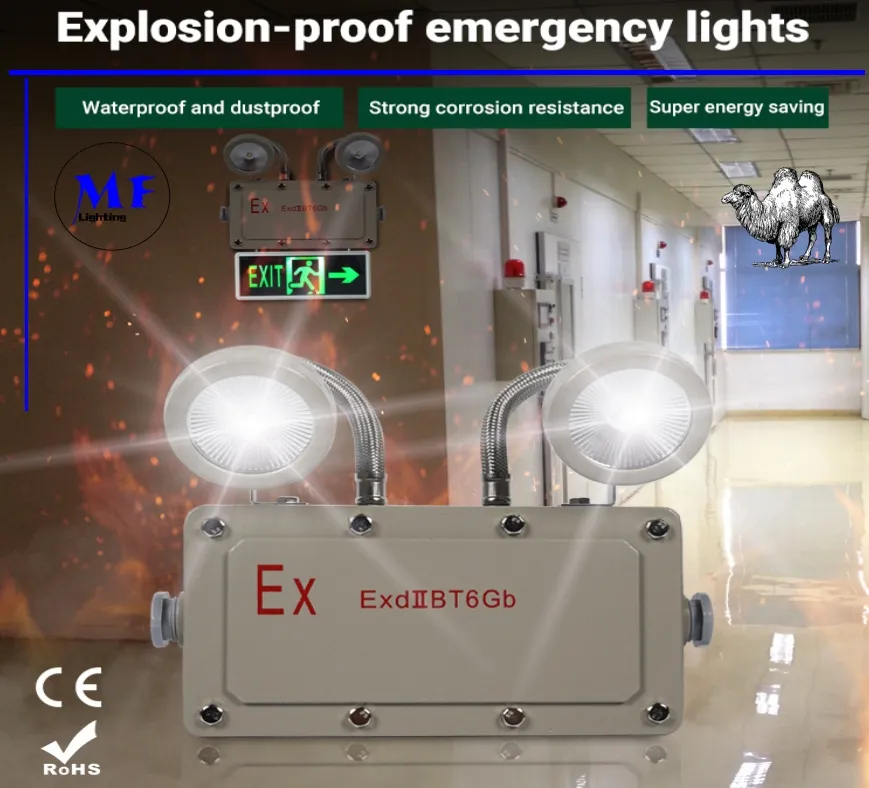

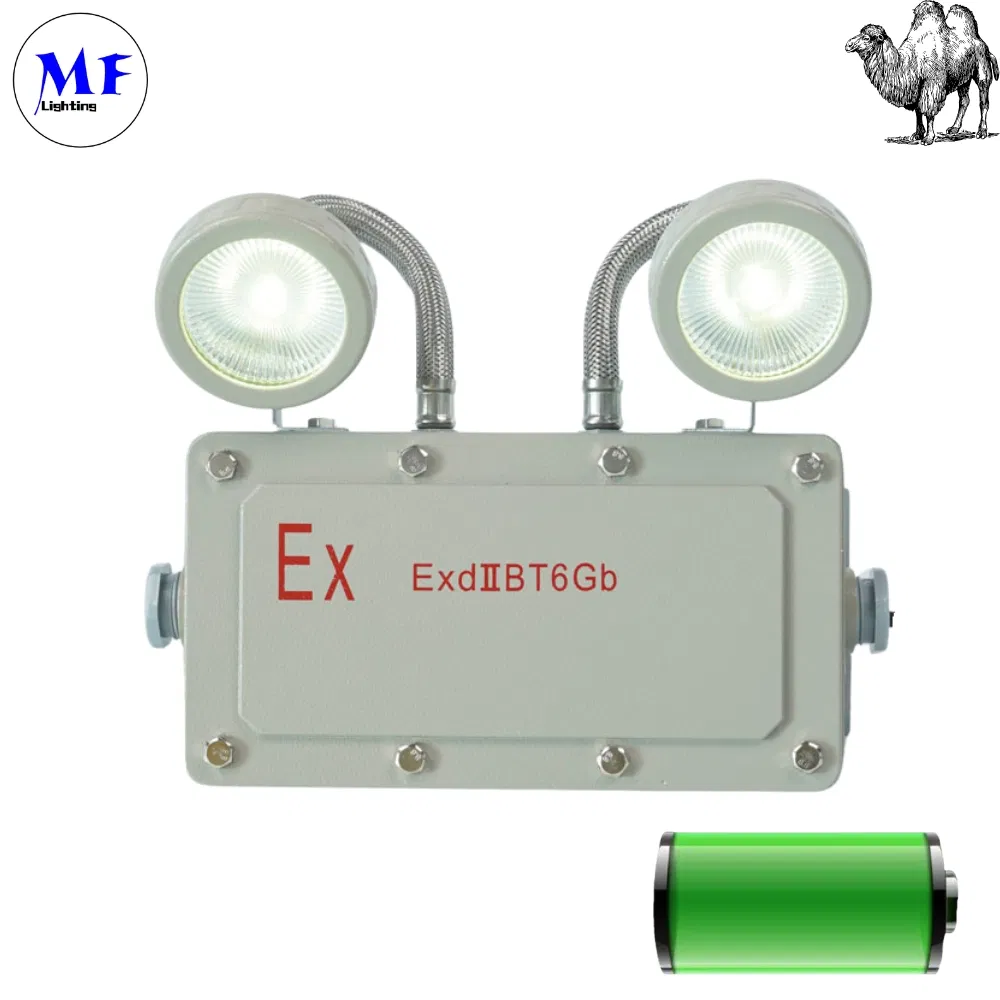

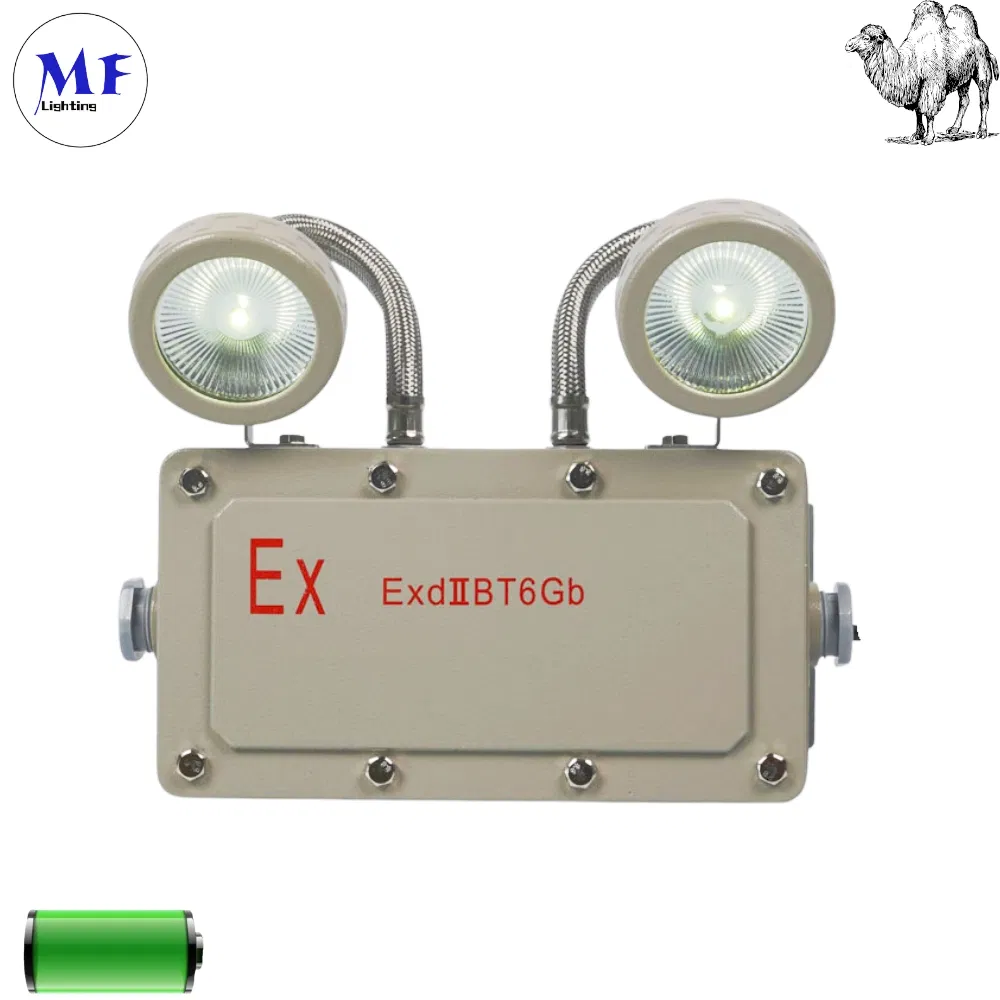

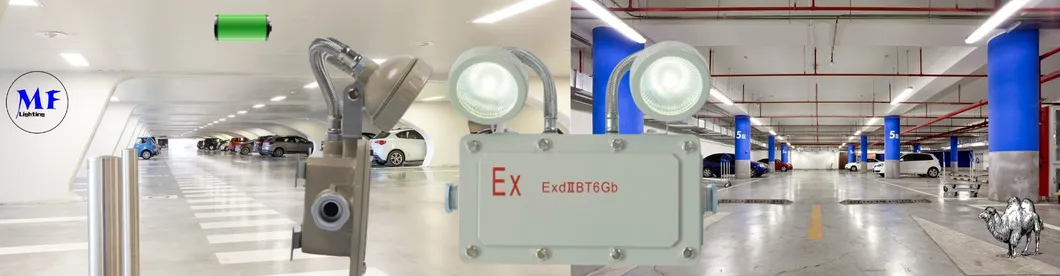

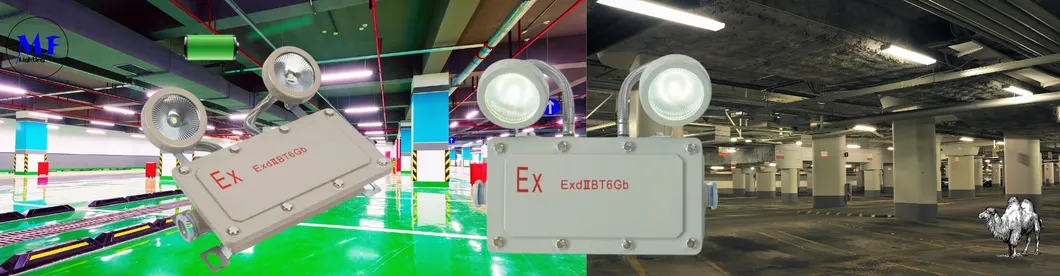

Explosion-proof emergency light is a kind of emergency lighting and evacuation indication equipment specially designed for use in flammable and explosive environments, and its application is wide, covering multiple industries and fields.
