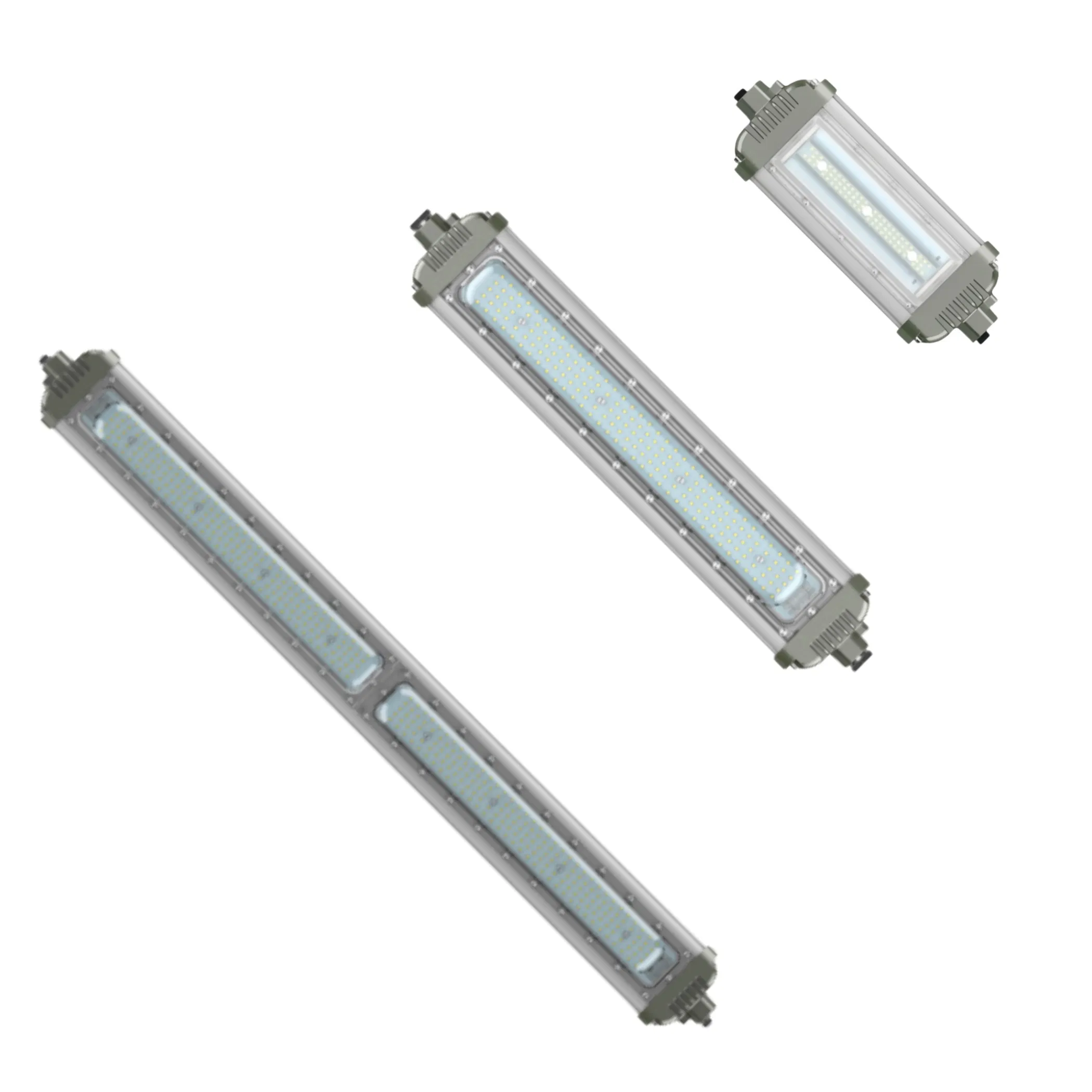

| MODEL | RATED POWER | LED Qty | SIZE | WEIGHT |
|---|---|---|---|---|

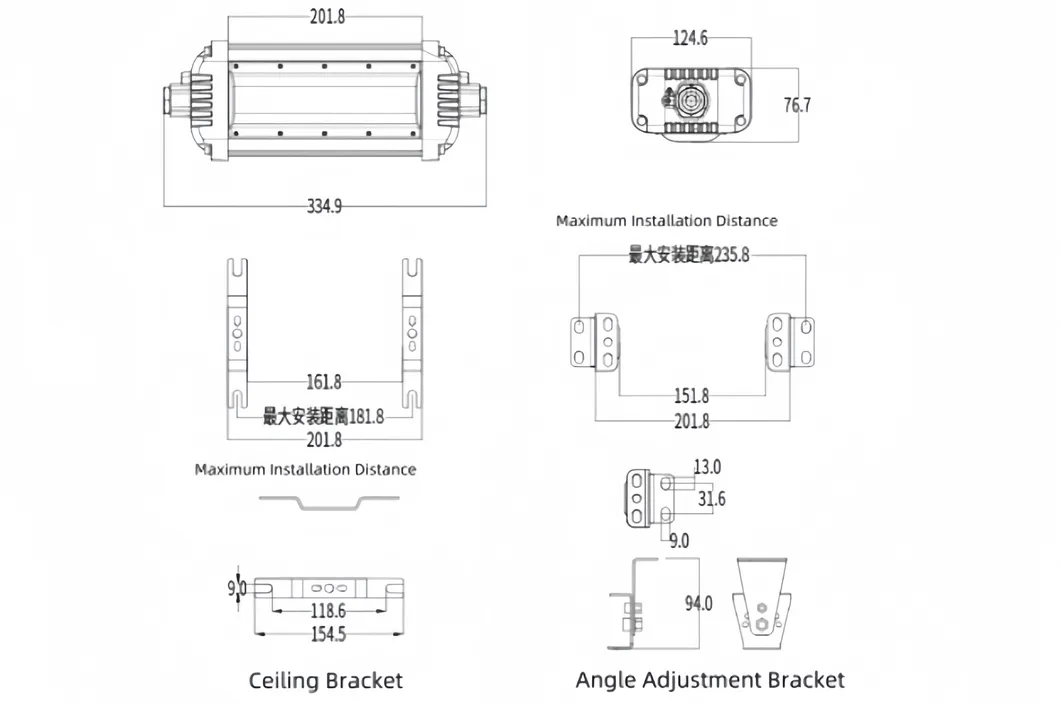

| MXEL-8192-300 | 20-30W | 70pcs | 335x125x77mm | 1.7Kg |
| MXEL-8192-600 | 40-60W | 120pcs | 635× 125×77 mm | 3.2Kg |

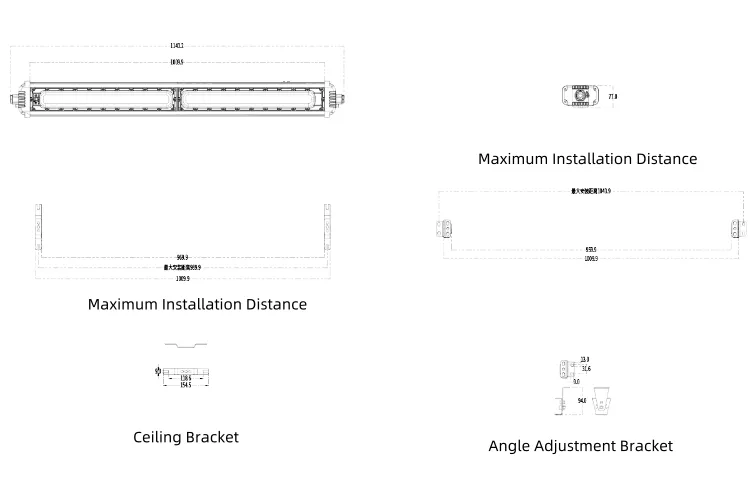

| MXEL-8192-1200 | 70-120W | 240pcs | 1143x125x77mm | 6.2Kg |
| ITEM | WATT | LUMEN | VOLTAGE | CUSTOMIZABLE |
|---|---|---|---|---|
| MXEL-8192 | 20W | 2400lm | AC 220V 50/60Hz |
0.3M 0.6M 1.2M Meters Optional |
| 30W | 3600lm | |||
| 40W | 4800lm | |||
| 50W | 6000lm | |||
| 60W | 7200lm | |||
| 70W | 8400lm | |||
| 80W | 9600lm | |||
| 100W | 12000lm | |||
| 120W | 14400lm | |||
| COMMON | MODEL: | 8192 | INPUT VOLTAGE: | AC220V 50/60Hz |
| EFFICIENCY: | 120Lm/W | POWER FACTOR: | > 0.95 | |

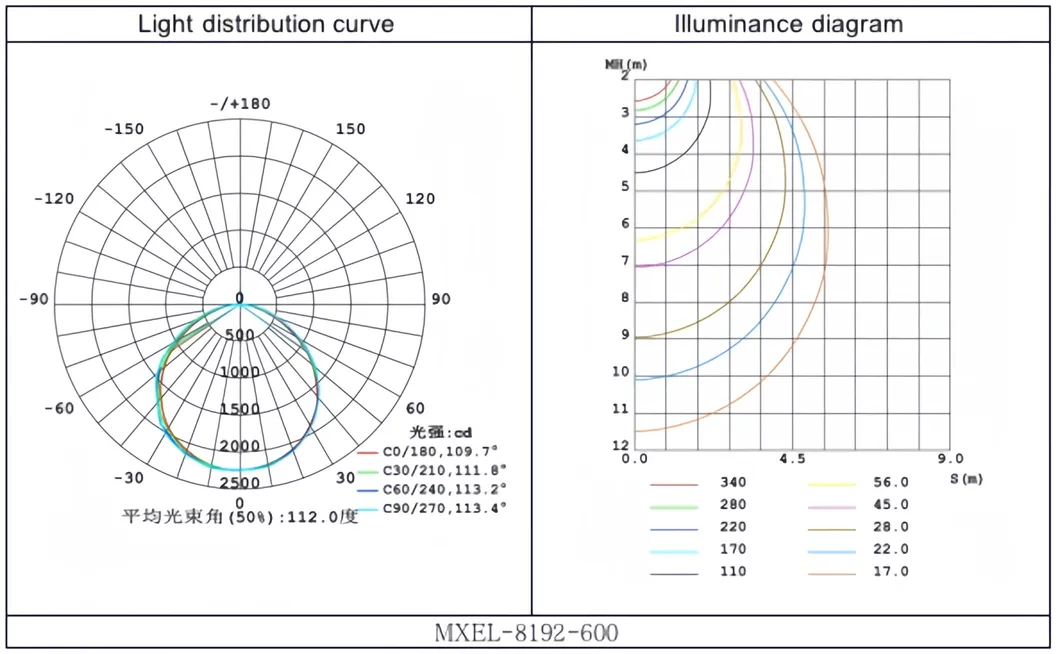

| BEAM ANGLE: | 120° | WORK TEMP: | -20~40°C | |
| CCT: | 3000-6500K | BEADS SPECIFICATIONS: | 2835 | |
| CRI: | ≥70RA | Ex-PROOF MARK: | ExnRIICT6Gb | |
| MATERIAL: | Die Cast Aluminum | START-UP TIME: | ≤0.2s | |
| IP GRADE: | IP66 | LIFESPAN: | > 100000h | |
| IK GRADE: | IK10 | WARRANTY: | 5 years | |
| CORROSION RESISTANCE GRADE: | WF2 | IMPLEMENTATION STANDARDS: | GB3836.2, GB3836.9 | |
| CERT | ATEX, CE, IP66, IK10 | |||
| FEATURES |
Electrical components: the light source adopts the first-line brand LED light-emitting chip, with ultra-high luminous efficiency and an average service life of 100000 hours. The power supply adopts the latest wide voltage technology, with constant current output, short circuit, overvoltage protection and other functions. Heat dissipation design: the radiator adopts integrated profile extrusion, with firm structure and excellent heat conduction and heat dissipation performance. Optical lampshade: integrated injection molding of high-strength optical PC material, corrosion-resistant and impact resistant, light transmittance up to 95% ~ 98%, uniform and soft light irradiation and anti glare. Protection and anti-corrosion: the surface of the lamp body radiator is anodized, the die-casting parts are treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel, combined with high-precision processing technology. It has the characteristics of high anti-corrosion, high waterproof and high dust prevention, so as to meet the long-term normal operation of the lamp in various harsh environments. |
|||
| APPL |

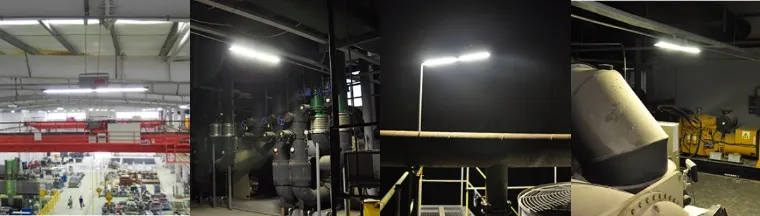

• Warehouse • Paint Shop • Plastic Manufacturing • Gas Station • Sports Venues • Pharmaceutical Sector • Water Treatment Facilities • Transportation • Food and Beverage Processing |
|||
First, it is safe. In dangerous environments with flammable and explosive gases or dust, such as petrochemicals, underground coal mines, flour mills, etc., ordinary lamps may generate electric sparks or high temperatures that may cause explosions. Explosion-proof fluorescent lamps are specially designed to effectively prevent the arcs and sparks that may be generated inside from being released into the surrounding environment to avoid explosion accidents.
Secondly, the lighting effect is good. Fluorescent lamps have high luminous efficiency and can provide sufficient brightness to ensure good visibility in the working area, which helps people work efficiently and safely.
Furthermore, it has a long service life. Its lamp tubes and other components are relatively durable, which reduces the trouble of frequent replacement of lamps and reduces maintenance costs. It is suitable for dangerous places where replacement is inconvenient.

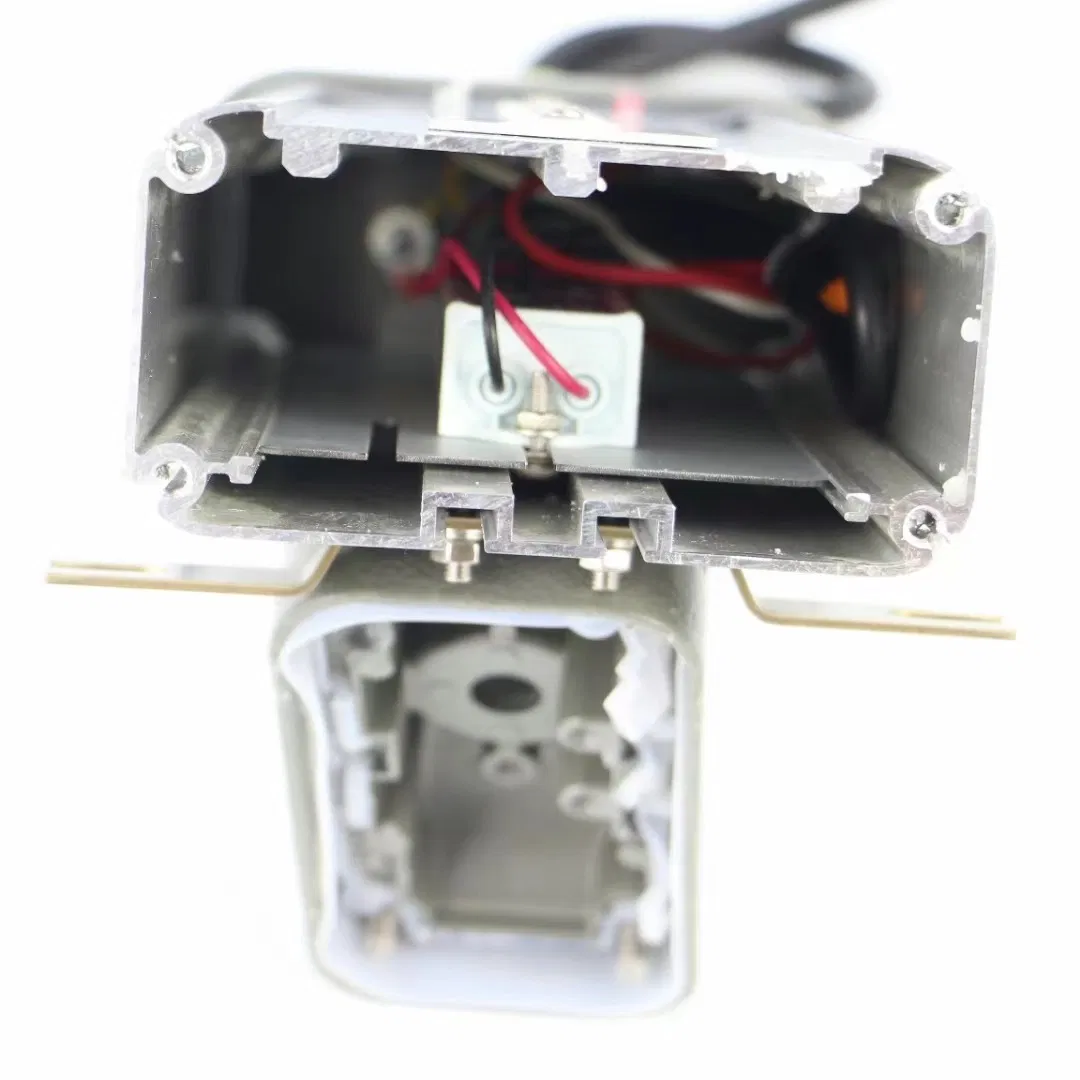

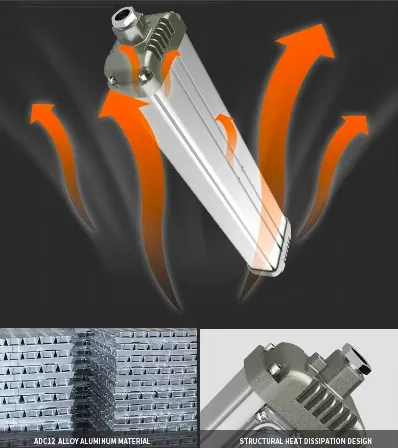

The whole lamp adopts air diversion and heat dissipation structure design. The radiator adopts special ADC12 alloy aluminum material for die casting, which is formed by high pressure die casting, with high strength, fast heat conduction and strong heat dissipation. Adopt silicone grease with thermal conductivity of 3.0, which can conduct heat more quickly.

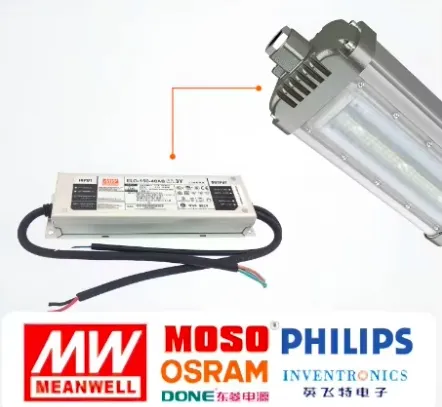

Adopt first-line well-known brand power supply, with guaranteed quality and three guarantees. The power supply adopts the latest wide voltage technology, which has the characteristics of constant current output, lighting protection, surge protection, short circuit and overvoltage protection, etc. The power factor is as high as 0.99, and the quality is more stable.

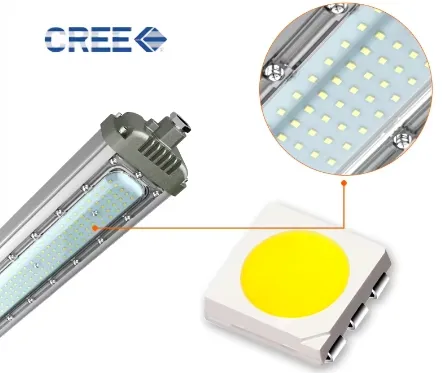

The first-line brand CREE LED light-emitting chip is adopted, which has high brightness and high light efficiency, and the chip light efficiency is >120 lm/W. The performance is stable and the average service life of the chip is as long as 100,000 hours. Smt array patch technology is adopted, which has high heat conduction efficiency and low light attenuation.
