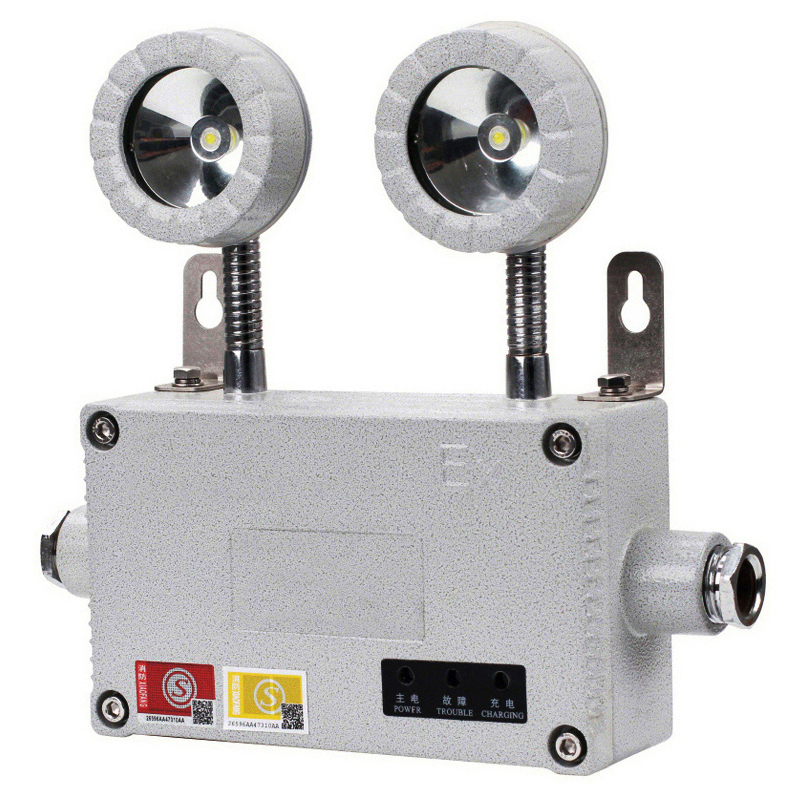

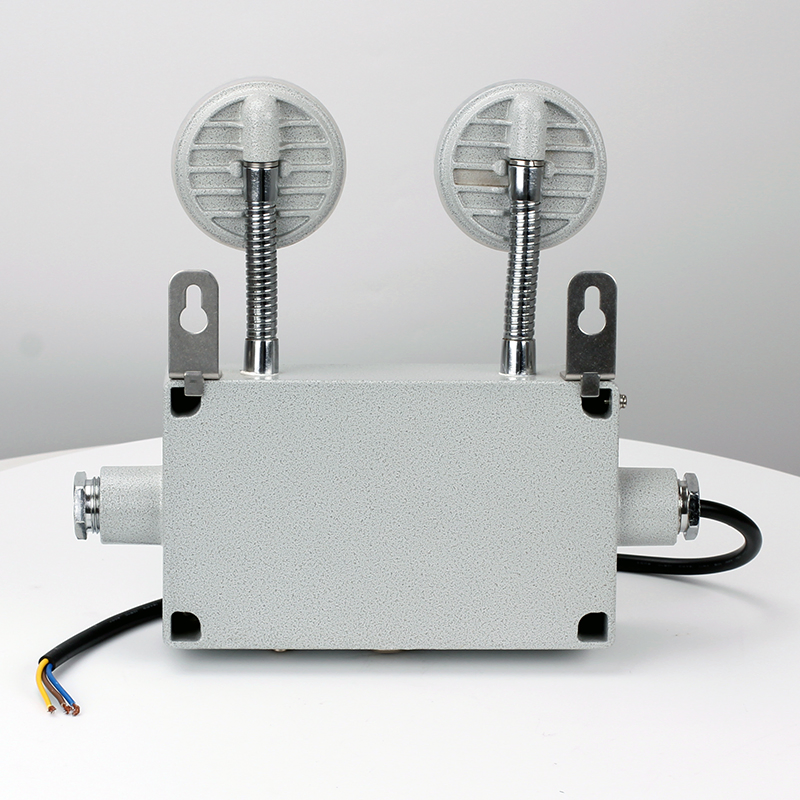

Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
1 / 5
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp

Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview
Product Parameters Overview Header
Basic Specifications
Model NO.
BCJ51 IIB/C
Battery Type
Lead-acid
Warranty
3-Year
Emitting Color
White
Sign Orientation
out, Left, Right, Left and Right
Specifications
2*3W
Input Voltage(V)
AC/DC 24V, AC/DC 36V, AC 220V, AC 380V
Lighting Solutions
Dialux Evo Layout
Performance & Physical Info
Use Environment
Inflammable and Explosive Places
Characteristics
Waterproof, Dustproof, Corrosion-Resistant
Luminous Efficiency
120 Lm/W
CRI (Ra)
80
Color Temperature (CCT)
2700-6500K
Production Capacity
100000 Pcs/Month
Origin
Zhejiang, China
Dimmer Support
No
Packaging & Delivery
Package Size
33.00cm * 28.00cm * 32.00cm
Package Gross Weight
15.000kg
Transport Package
1. Carton Box. 2. Customer Brand OEM Packing Box.
Product Parameters

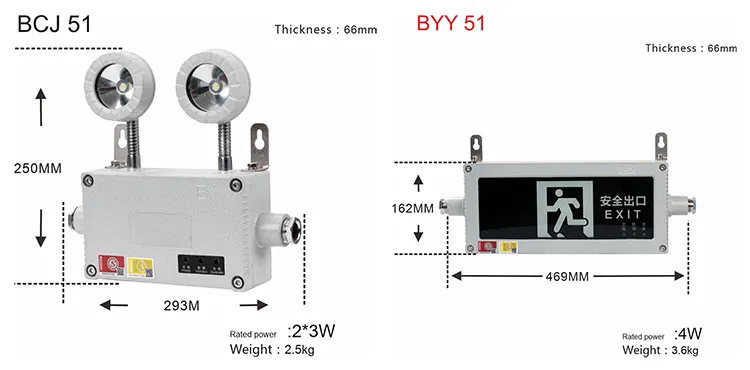

Product Parameter Details
Model & Spec Explosion Proof Sign Light Source Lamp Type Power (W) Charging Time (h) Emergency Time (min) Weight (kg)
BCJ51- Ex db eb ib mb IIC T6 Gb
Ex tb IIIC T80ºC Db
Ex ib IIIC T80ºC Db		 LED I 2*3 24 120 2.5
BCJ52-
BYY51- 4 3.6
BYY52-
Rated Voltage/Frequency Inlet Thread Cable Outer Diameter Degree of Protection Anti-Corrosion Grade
220V/50Hz G3/4 Φ10~Φ14mm IP66 WF2
Product Description
Product Description Details
  • Non-polar connection layout design.
  • Handheld encoder coding support.
  • Short circuit independent recoverable protection.
  • Made of special cast aluminum alloy by die-casting; surface sprayed with high voltage static electricity.
  • Exposed stainless steel fasteners with high corrosion resistance features.
  • Aluminum alloy die-casting shell; treated with high-speed shot peening and high-voltage electrostatic spraying for corrosion resistance and anti-aging durability.
  • Evacuation signs can be freely selected or customized according to specific user requirements.
  • Ultra high brightness LED light source with low power consumption, long service life, and long-term maintenance-free operation.
  • Normally lit; automatically charges under normal power supply and switches to emergency lighting in case of power failure or accidents.
Applicable Scope:Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC Explosive Gas Environments
Security Level:IP66, WF2, Ex db eb mb IIC T6 Gb, Ex tb/ib ib IIIC T80ºC Db
Field of Utilization:Industry, Gas Station, Refinery, Spray Booth, Hazardous Locations
Product Alias:Explosion Proof Emergency Light, Explosion Proof Exit Light, Explosion Proof Sign Light, Explosion Proof Fire Emergency Light
Function:Emergency Lighting in Hazardous Environments In Case Of Power Failure
Emergency Time:30 Minutes, 60 Minutes, 90 Minutes, 120 Minutes, 180 Minutes
Installation Position:At the exits of normal and emergency exits leading to outdoors
Product Gallery

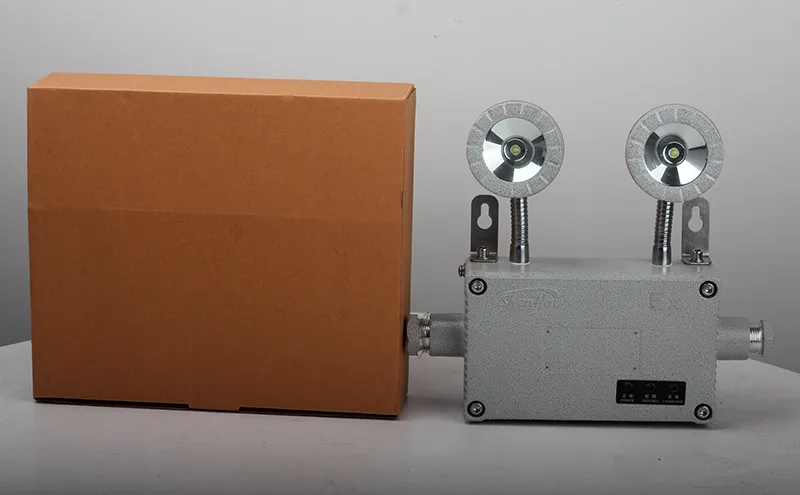

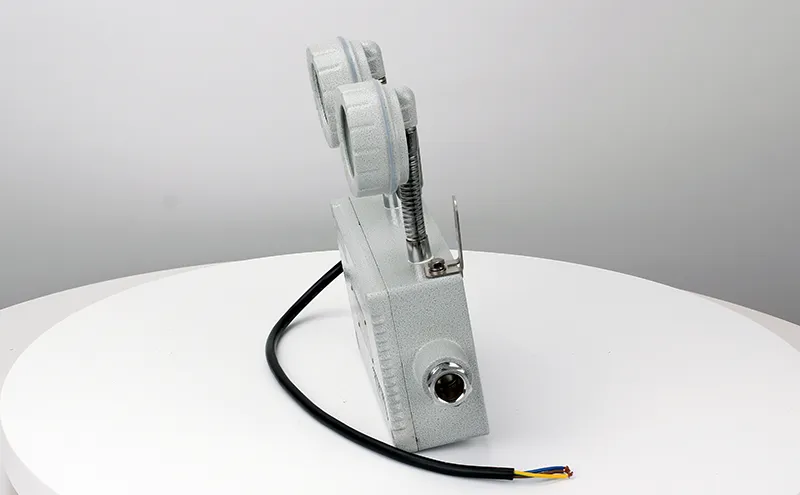

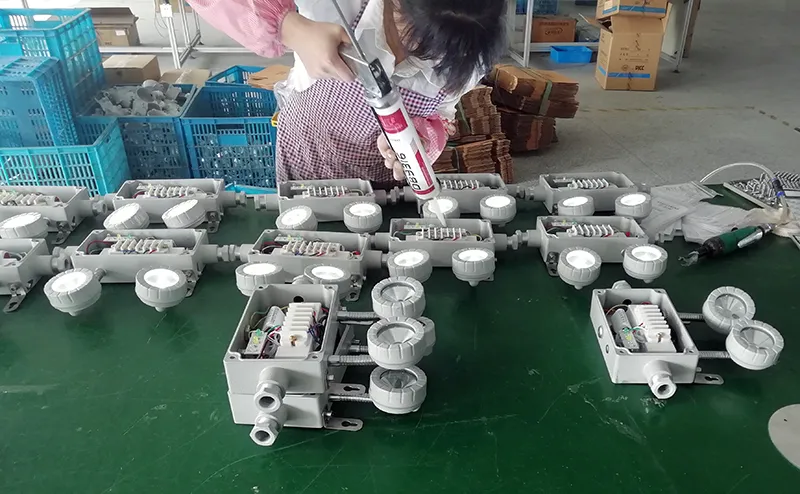

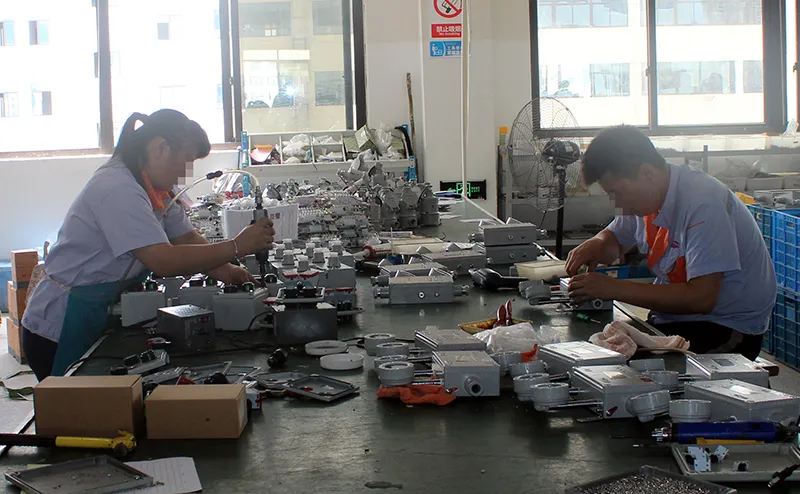

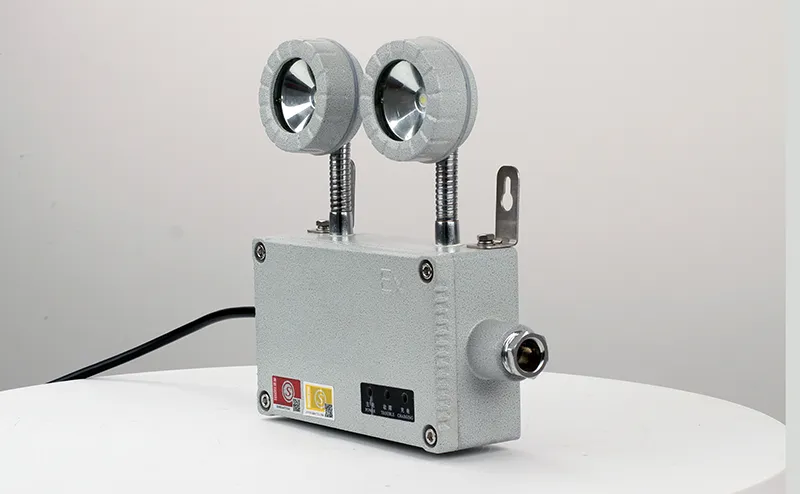

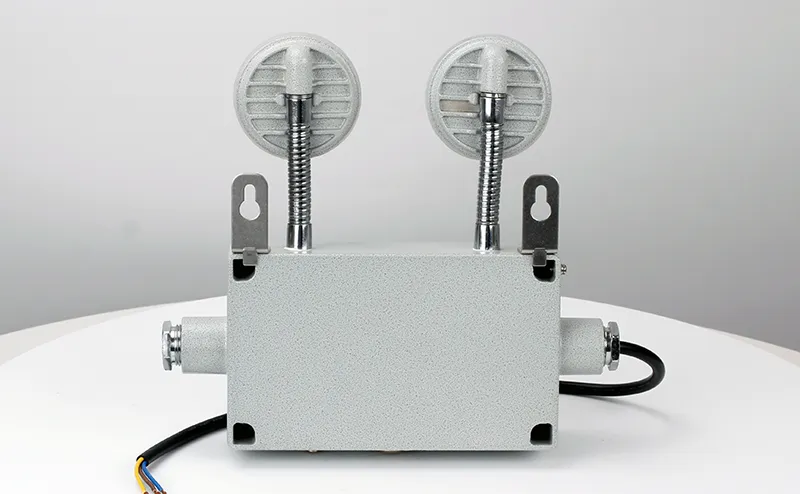

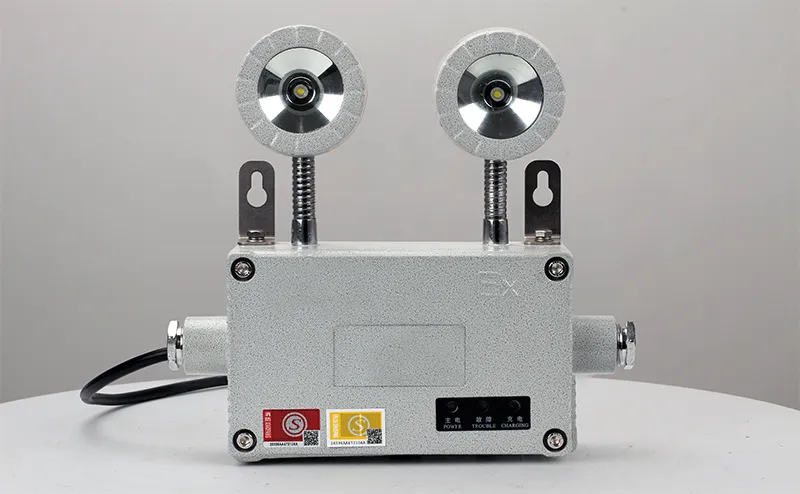

Explosion Proof Light Front Details Explosion Proof Light Side View Explosion Proof Light Installation View Explosion Proof Emergency Light Angle View Explosion Proof Emergency Exit Indicator Explosion Proof Emergency Sign Construction Explosion Proof Light Details Inside Explosion Proof Light Materials Explosion Proof Light Back Construction
Standards & Performance Details

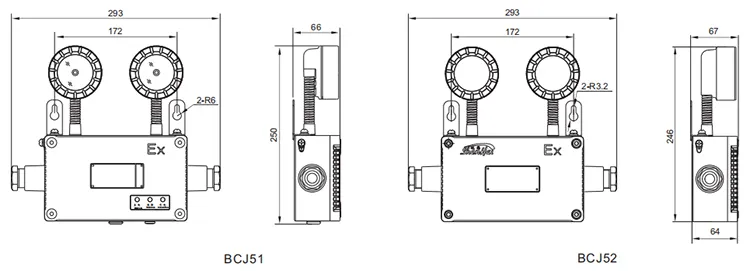

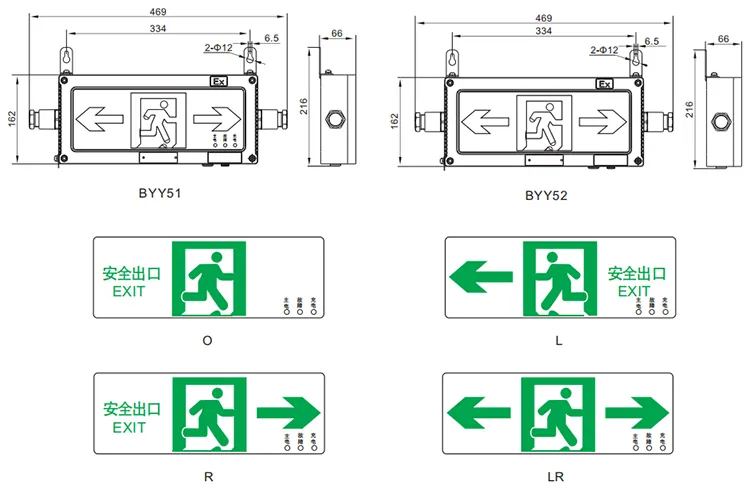

Explosion Proof Performance Schema Product Standards Compliance
  • Applicable for Zone 1 and Zone 2 explosive gas environment.
  • Applicable for Zone 21 and Zone 22 combustible dust environment.
  • Suitable for IIA, IIB and IIC explosive gas environment.
  • Applicable to T1~T6 temperature groups.
  • Designed for petroleum exploitation, oil refining, chemical industry, gas station, and special emergency lighting.

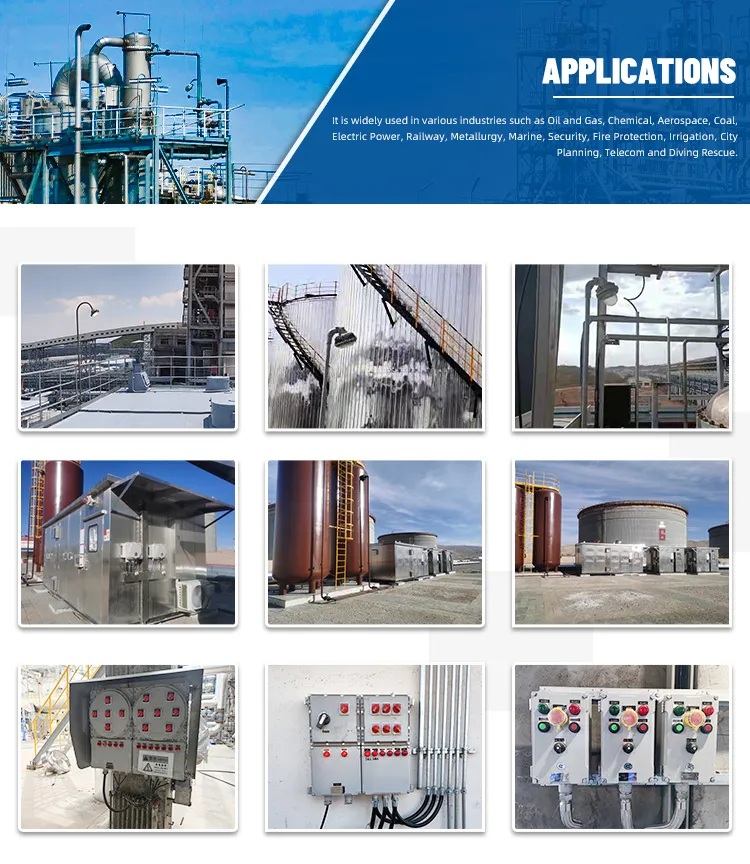

Environment Zone Standard Chart
About Us & Factory Show

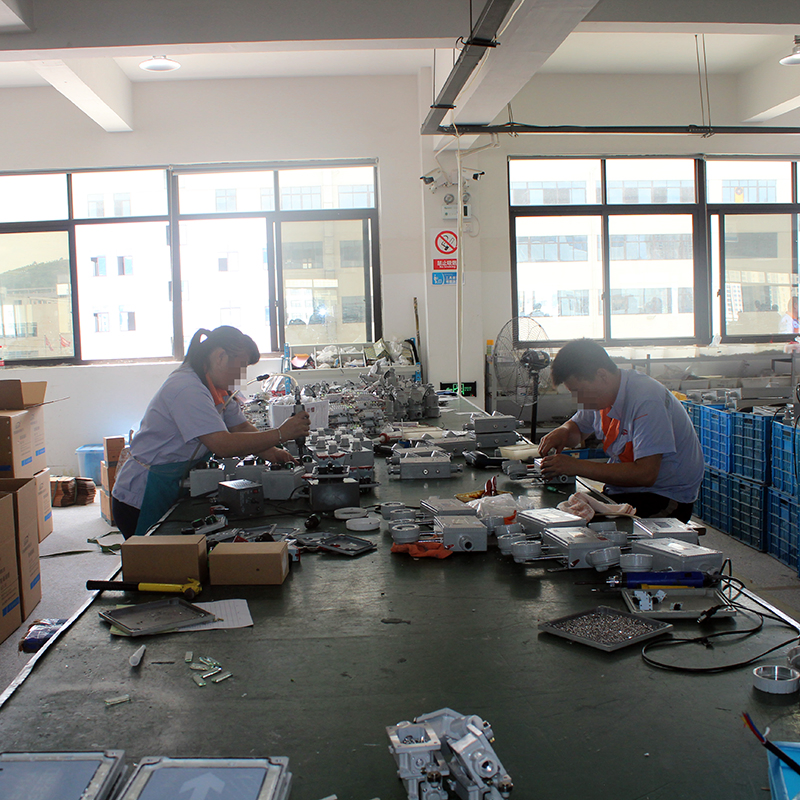

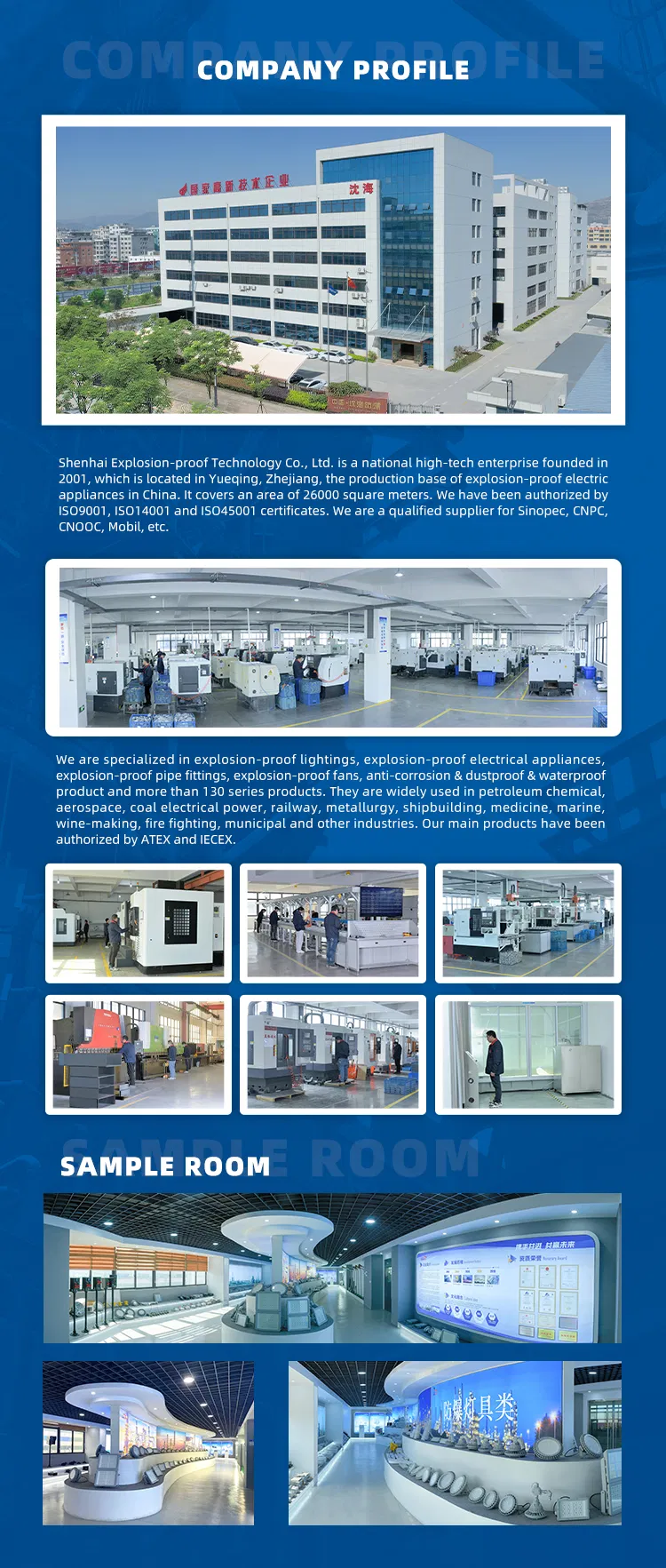

Manufacturing Plant Overview

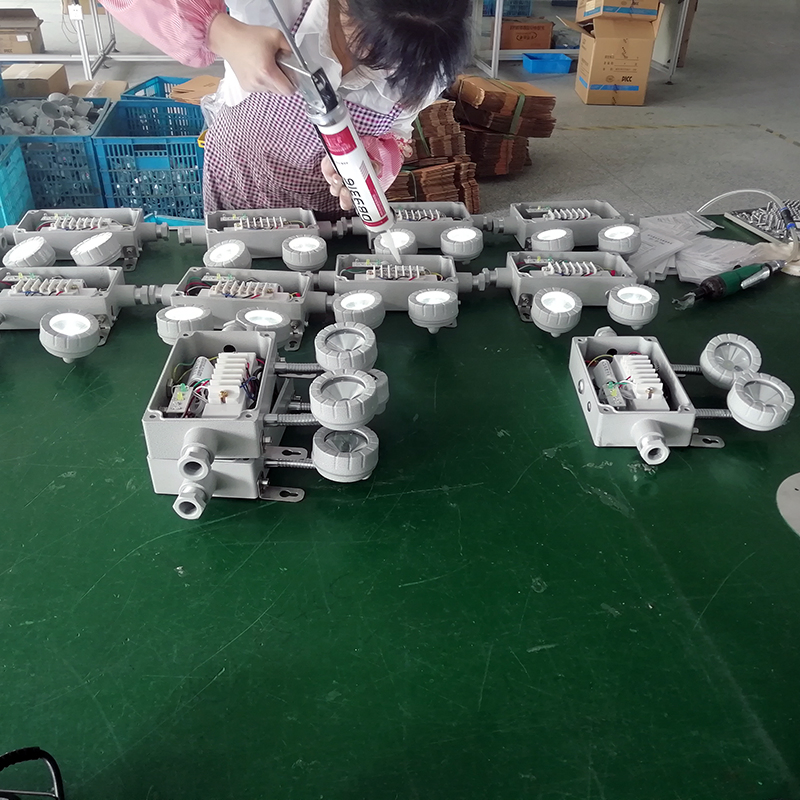

Factory Testing Lab Production Line Layout Precision Inspection Facilities

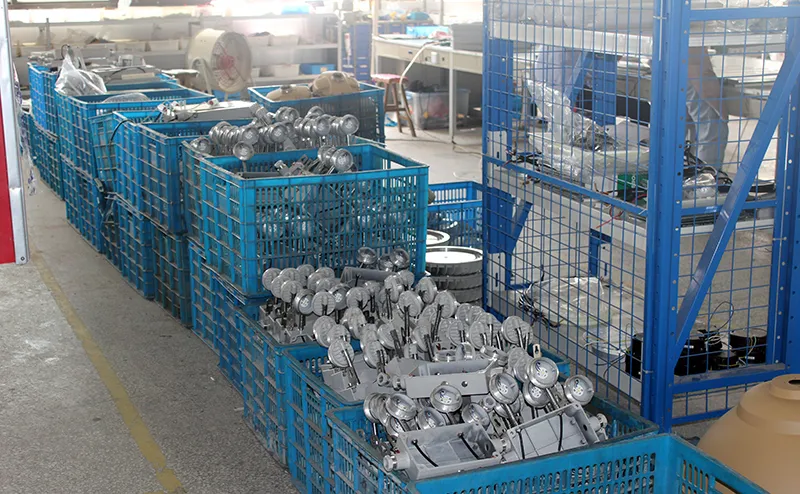

Storage and Logistics Area
Frequently Asked Questions
FAQ Header Support Banner
Q Are you a manufacturer or a trading company?

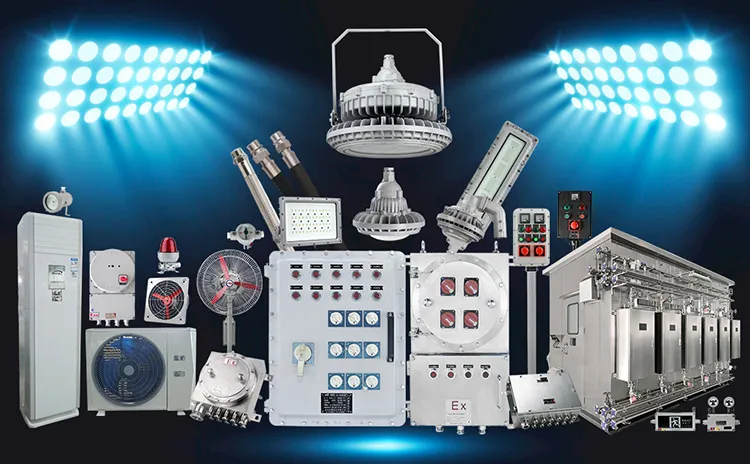

We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.
Q What certificates do you have?
We have passed ATEX, IECEx, and with a lot of National Patents.
Q What fields are your products used in?
They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, municipal, gas station and other industries.
Q Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q Will you accept customized?
Yes. Please inform us and confirm the design firstly based on our sample.
Q What is the typical lead time for production?
Typically, production takes about 15-25 days depending on the ordered quantity and specifications. Detailed schedules will be confirmed upon order placement.
