ATEX Iecex LED Explosion Proof Light IP67 for Zone 1

Overview

Basic Info.

Model NO.

BHD6620

Base Type

No

Irradiated Area

≥30m²

Input Voltage

90-305VAC

Power

80W/100W/120W/150W/160W/180W/200W

Color Temperature

Cool White

Emitting Color

White

LED Chips Brand

Osram

Certification

CCC, CE, EMC, LVD, RoHS, SAA, Atex Iecex Pcec

Warranty

5 Years

Working Life

50000h

Zone

Hazardous Area Zone 1 Zone 2 Zone 21 Zone 22

Name2

LED Explosion Proof Flood Lighting Fixture

IP

IP66

Light Efficient

More Than 130lm/W

Applications

Oil and Gas, Chemical, Petrochemical

Mounting

Ceiling, Wall Mounted

Certificate Institute

TUV

Standard

Atex, Iecex, CE, RoHS, Pcec

Name1

LED Explosion Proof Flood Lighting Fixture

Name 2

Flame Proof High Bay Lamps for Zone 1

Transport Package

1 PCS/CTN

Specification

395*275*200mm

Origin

China

HS Code

9405409000

Production Capacity

5000PCS /Month

Packaging & Delivery

Package Size

40.00cm * 30.00cm * 20.00cm

Package Gross Weight

11.000kg

Product Description

LED explosion proof highbay light with ATEX certificate

Features

✓Zone1,2,Zone21,22
✓Instant on crisp white light output
✓High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
✓Isolated LED compartment reduces temperature within driver housing
✓ATEX and IECEx approved for all Zone 1 ,2 applications and rated for T6 environments.

The explosion proof light is designed specifically for harsh & hazardous environments which require high performance, high reliability, White-Light, safety and durable illumination. with ATEX and IECEx approved for all Zone 1 applications and rated for T6 environments.

ATEX Iecex LED Explosion Proof Light IP67 for Zone 1

Product Parameters

▪Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
▪Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
▪Lamp efficient: >130lm/w
▪Wide voltage: 90-305VAC
▪Surge Protection: 6KV
▪Power factor: > 0.95
▪THD (Total Harmonic Distortion): <20%
▪Inrush current: <65

APPLICATIONS	BHD6620 is a hazardous location LED explosion proof lighting fixture Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
CERTIFICATIONS	ATEX,IECEx certificate issued by TUV, CE, ROHs
HOUSING BODY	Aluminum alloy ADC12, WF2 grade
LENS	4mm thick tempered glass & PC reflector 30º 60º 90º 120º +95% light transmission. Shock and vibrations resistant.

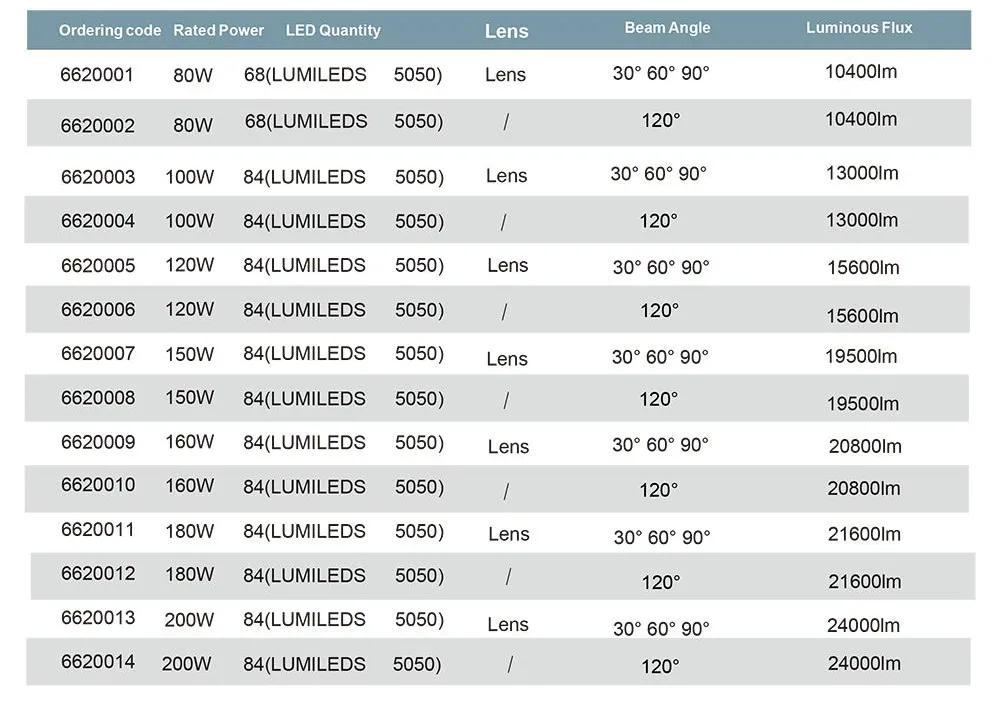

PERFORMANCE	12,000 to 24,050+ lumens Up to 140 lm/w. From 80W up to 200W. L70 (hrs) rated > 65,000.
IP66 & IP67 RATED	Dust tight and protected against the effects of immersion in water to depth between 15 cm and 1 meter. 1-10V, DALI dimming standard. Ideal for heavy industry, mining, refineries, chemical industry, coastal marine facilities and corrosive applications.

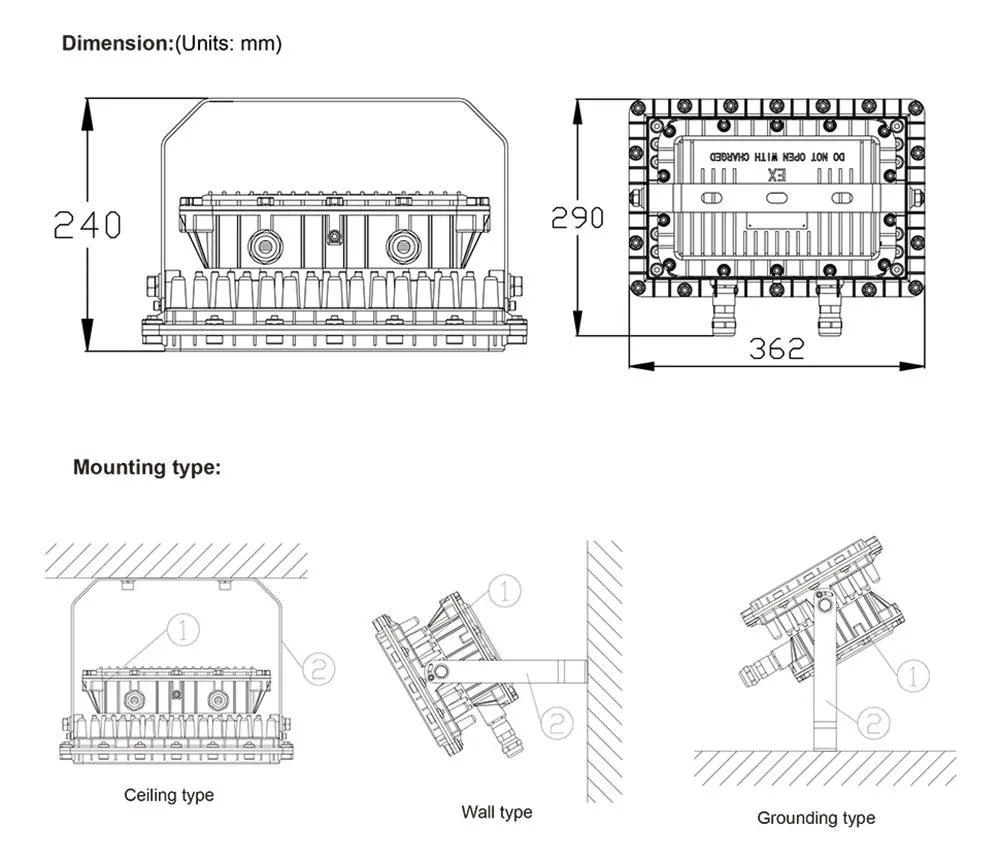

MOUNTING	Surface/wall mount standard (adjustable mount bracket included). Pendant kit optional.
OPERATING TEMPERATURE	-40°C to 50°C
DIMMING	1-10V dimming standard , DALI, Triac

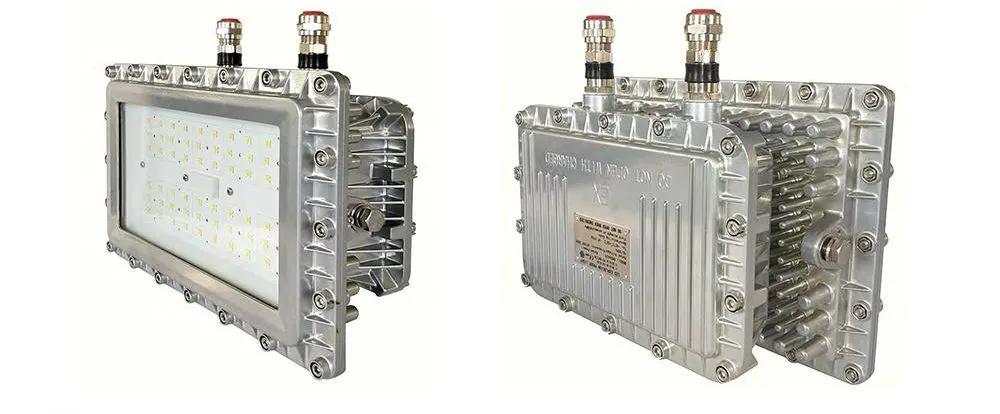

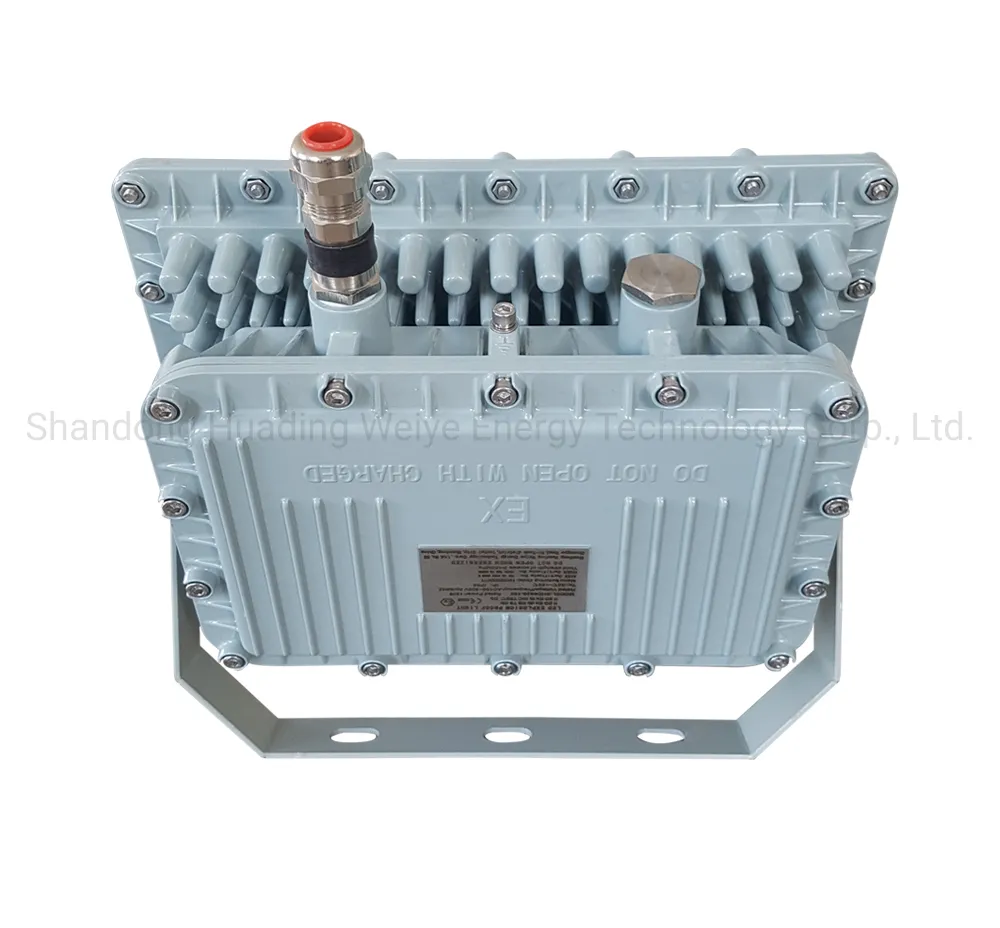

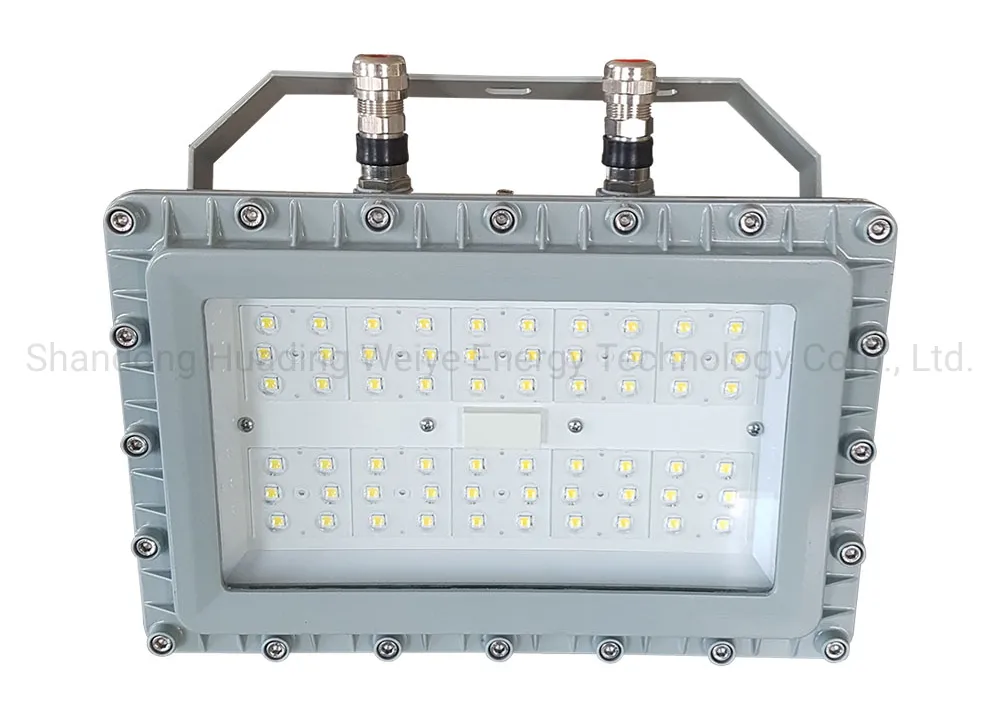

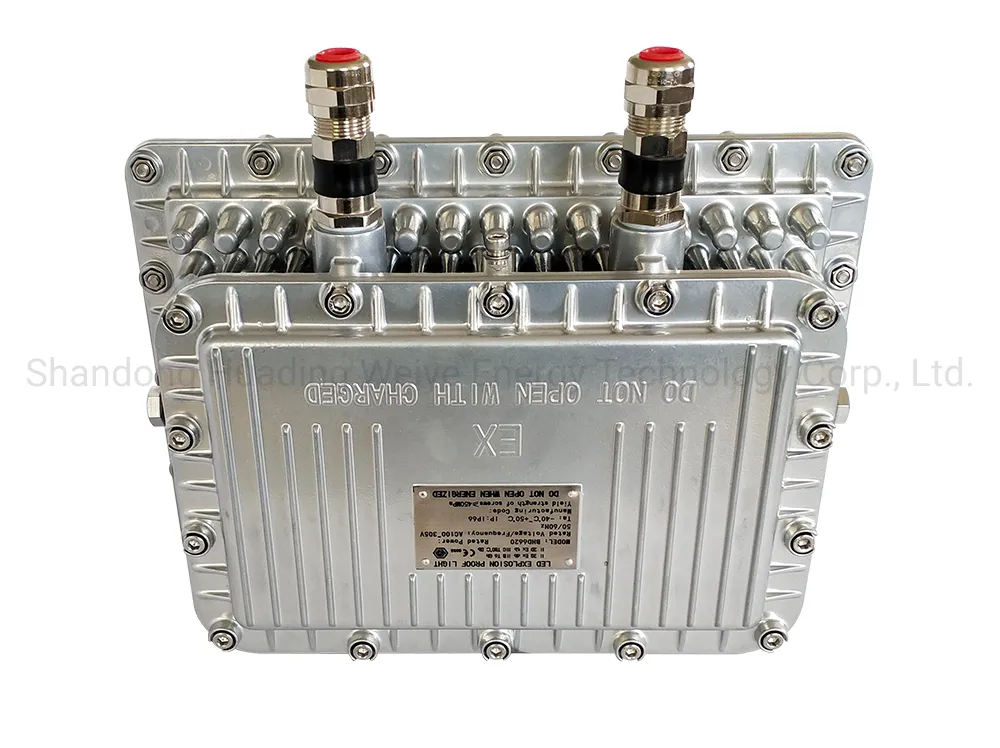

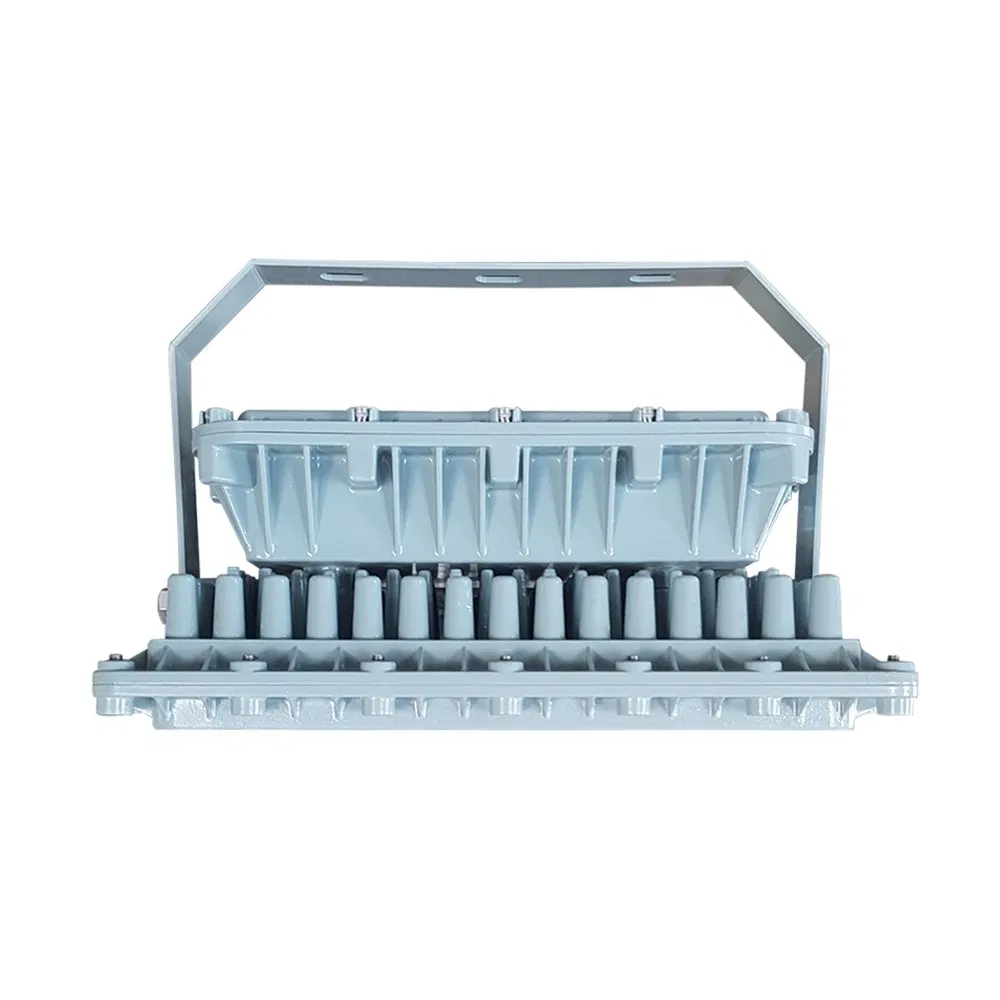

Detailed Photos

Certifications

We have got ISO9001, 14001, Ce, Rohs, ATEX, IECEx certificate

FAQ

1 What is your MOQ?

MOQ is 1 pc.

2 Are you trade company or factory?

We are factory, with a LED lighting engineering R&D center, provide service from design to production.

3 What are your main products?

Business includes explosion proof industry lighting, nuclear power lighting, municipal lighting, tunnel lighting, education lighting, intelligent lighting control system. Professional lighting and intelligent control solutions are provided for coal mine, petroleum, chemical industry, nuclear power, port, tunnel, communication, education, medical industry, etc.

4 How can I get a quotation?

We can offer product list for you, but if want a exact price, please let me know the quantity, the power, and the Luminous Flux.

5 Do you have certificate?

CE, ROHs, ATEX, IECEx, PCEC certificate are available.

6 Can you do OEM or ODM?

Yes.
