| MODEL | RATED POWER | LED QTY | SIZE | WEIGHT |
| MXEL-8192-300 | 20-30W | 70pcs | 335 x 125 x 77mm | 1.7Kg |
| MXEL-8192-600 | 40-60W | 120pcs | 635 x 125 x 77mm | 3.2Kg |
| MXEL-8192-1200 | 70-120W | 240pcs | 1143 x 125 x 77mm | 6.2Kg |
| ITEM | WATT | LUMEN | CCT | LENGTH |
| MXEL-8192 | 20W | 2400lm | 3000K 4000K 5000K 6500K Dimmable |
0.3M 0.6M 1.2M Meters Optional |
| 30W | 2400lm | |||
| 40W | 4800lm | |||
| 50W | 6000lm | |||
| 60W | 7200lm | |||
| 70W | 8400lm | |||
| 80W | 9600lm | |||
| 100W | 12000lm | |||
| 120W | 14400lm | |||
| OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color etc. Digital Smart System(DALI,DMX,0-10V). |
|||
| COMMON | INPUT VOLTAGE: | AC220V 50/60Hz | LIGHT EFFICIENCY: | 120Lm/W |
| POWER FACTOR: | >0.95 | BEAM ANGLE: | 120° | |
| WORK TEMP: | -20~40ºC | BEADS SPECIFICATIONS: | 2835 | |
| CRI: | ≥70RA | EX-PROOF MARK: | ExnRIICT6Gb | |
| IP GRADE: | IP66 | START-UP TIME: | ≤0.2s | |
| LIFESPAN: | >100000h | WARRANTY: | 5 Years | |
| ANTI-CORROSION GRADE: | WF2 | IMPLEMENTATION STANDARDS: | GB3836.2; GB3836.9 |
|
| CERT | ATEX, CE, IP66 IK10, ROHS, ISO9001 | |||
| FEATURES |
|
|||
| APPLICATIONS |
|
|||

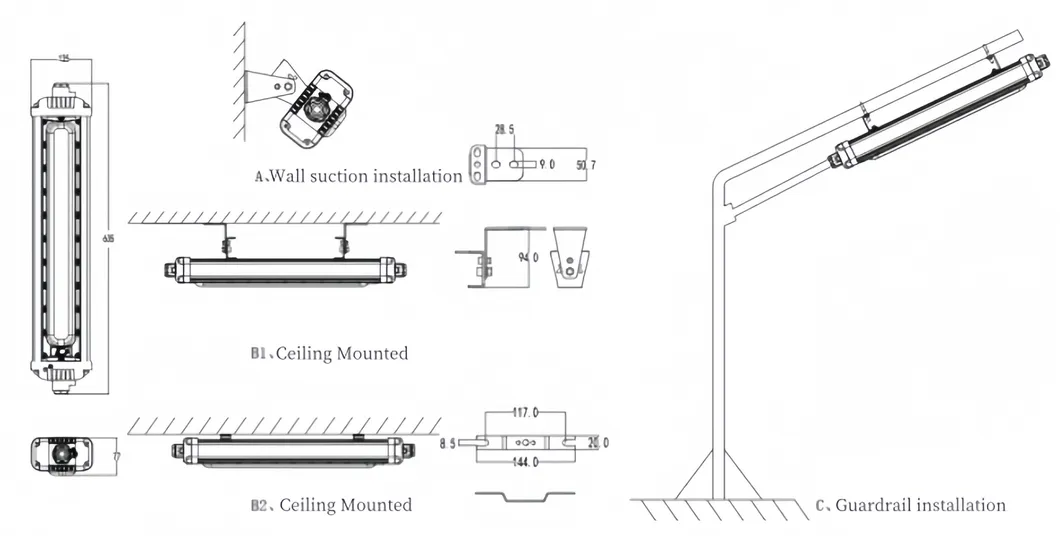

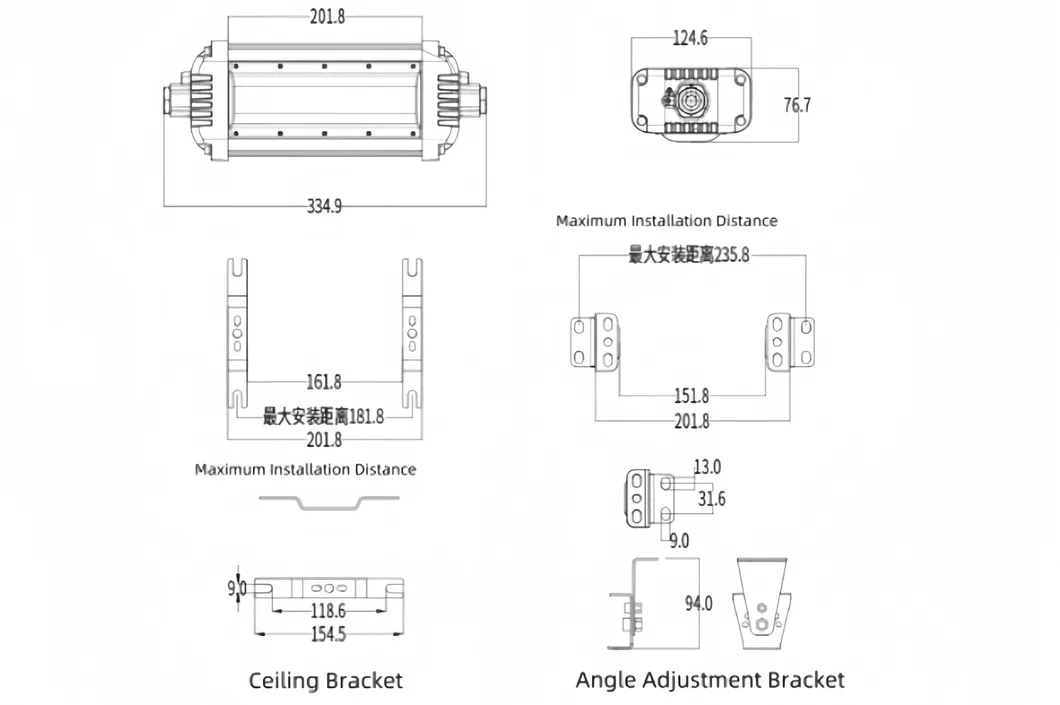

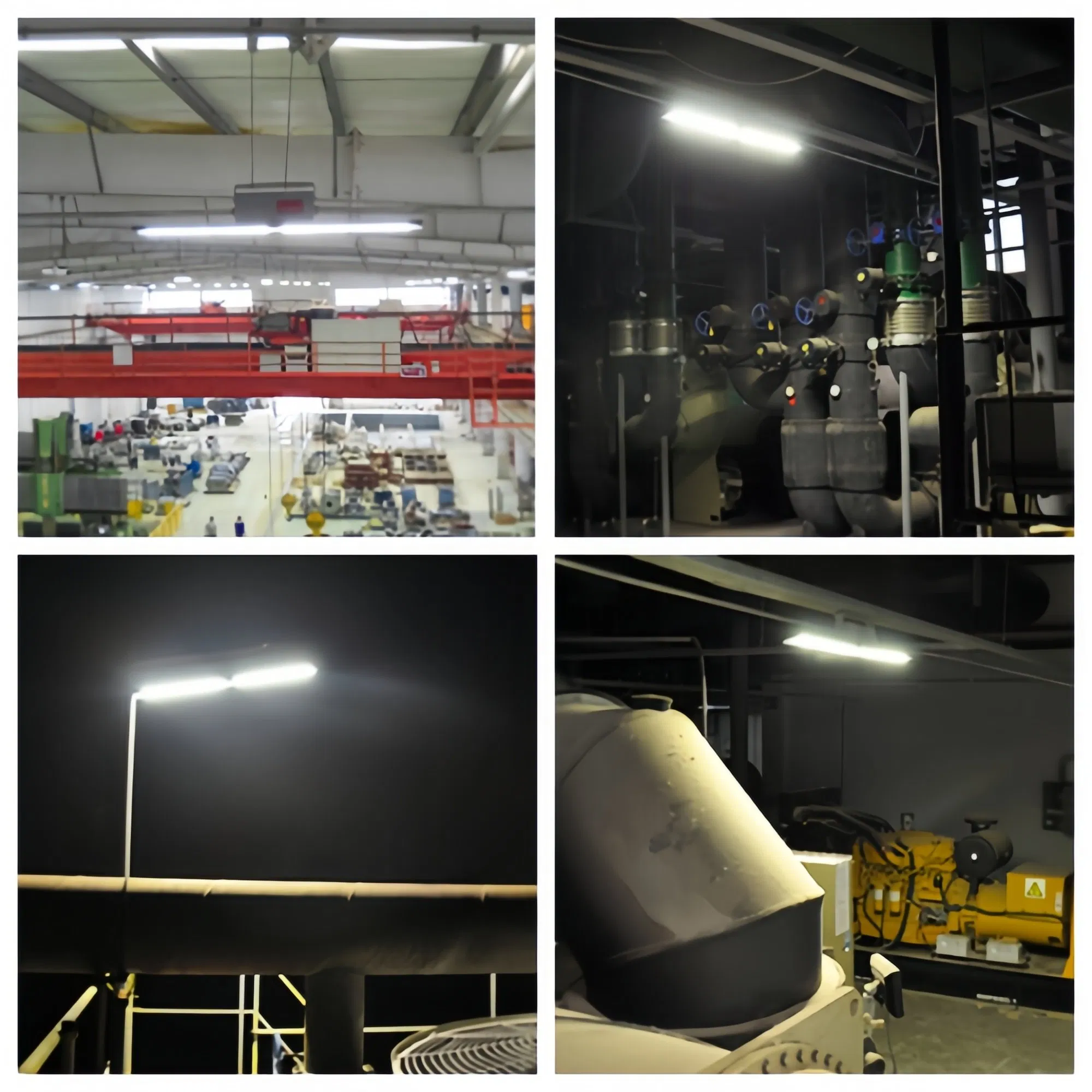

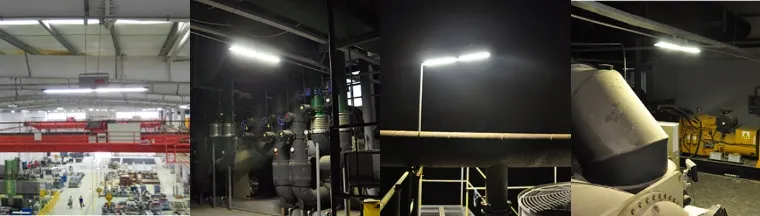

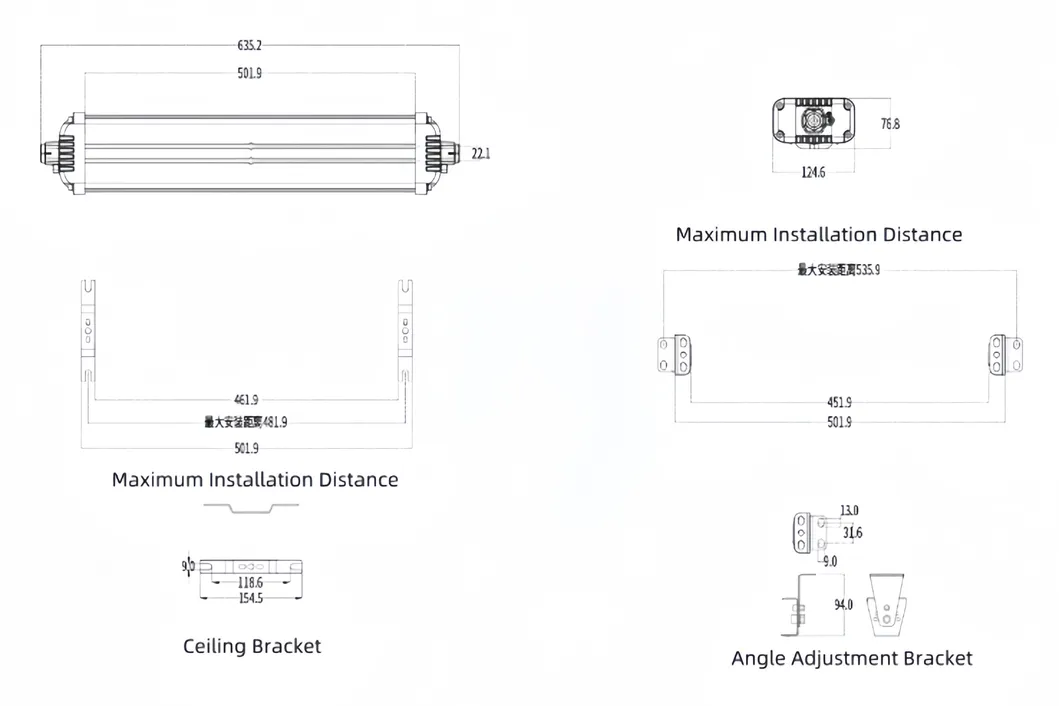

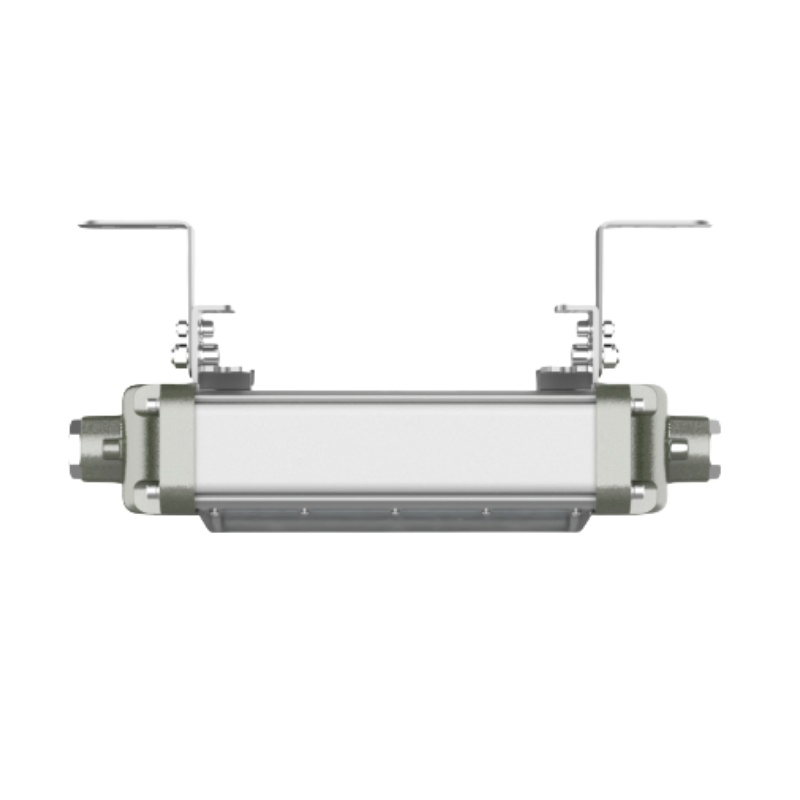

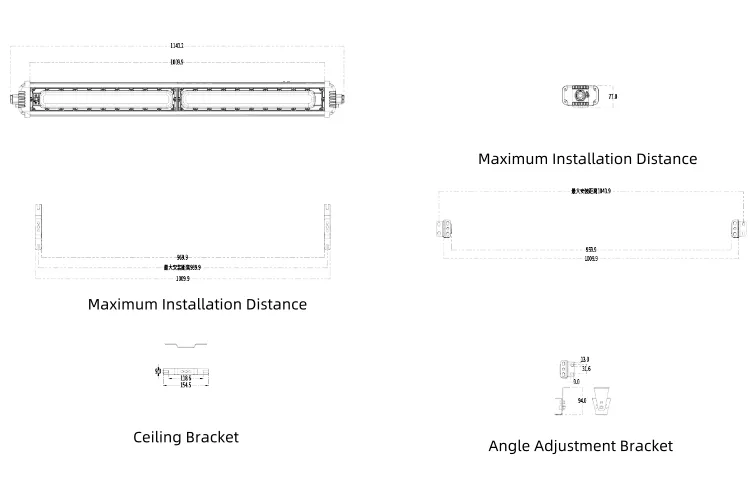

Our explosion-proof lights are designed with versatile installation options to meet a wide range of industrial needs. Available mounting methods include L-bracket, flange bracket, ceiling mount, pendant mount, and U-bracket, providing flexibility for various installation environments. Additionally, models can be equipped with protective accessories such as stainless steel mesh or safety wire guards for enhanced durability and protection. These adaptable configurations ensure reliable performance in hazardous areas such as oil refineries, chemical plants, and mining sites.

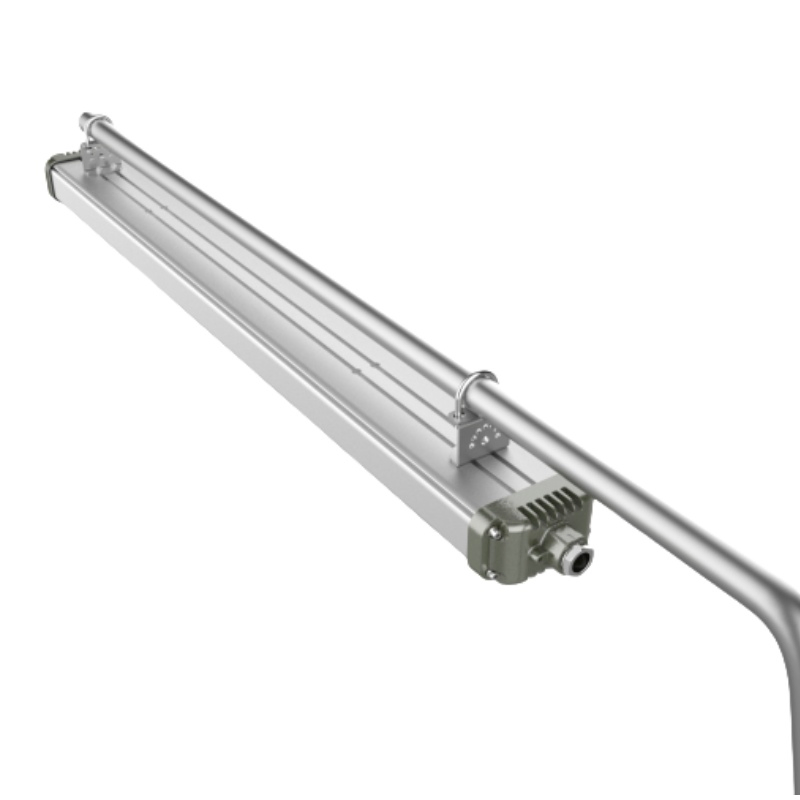

Our explosion-proof lights offer multiple installation methods to suit different industrial environments. Options include L-type bracket, flange bracket, ceiling mount, pendant mount, and U-bracket. Models can also be equipped with stainless steel mesh or safety wire guards for added protection. This flexibility ensures easy installation and reliable performance in hazardous locations.

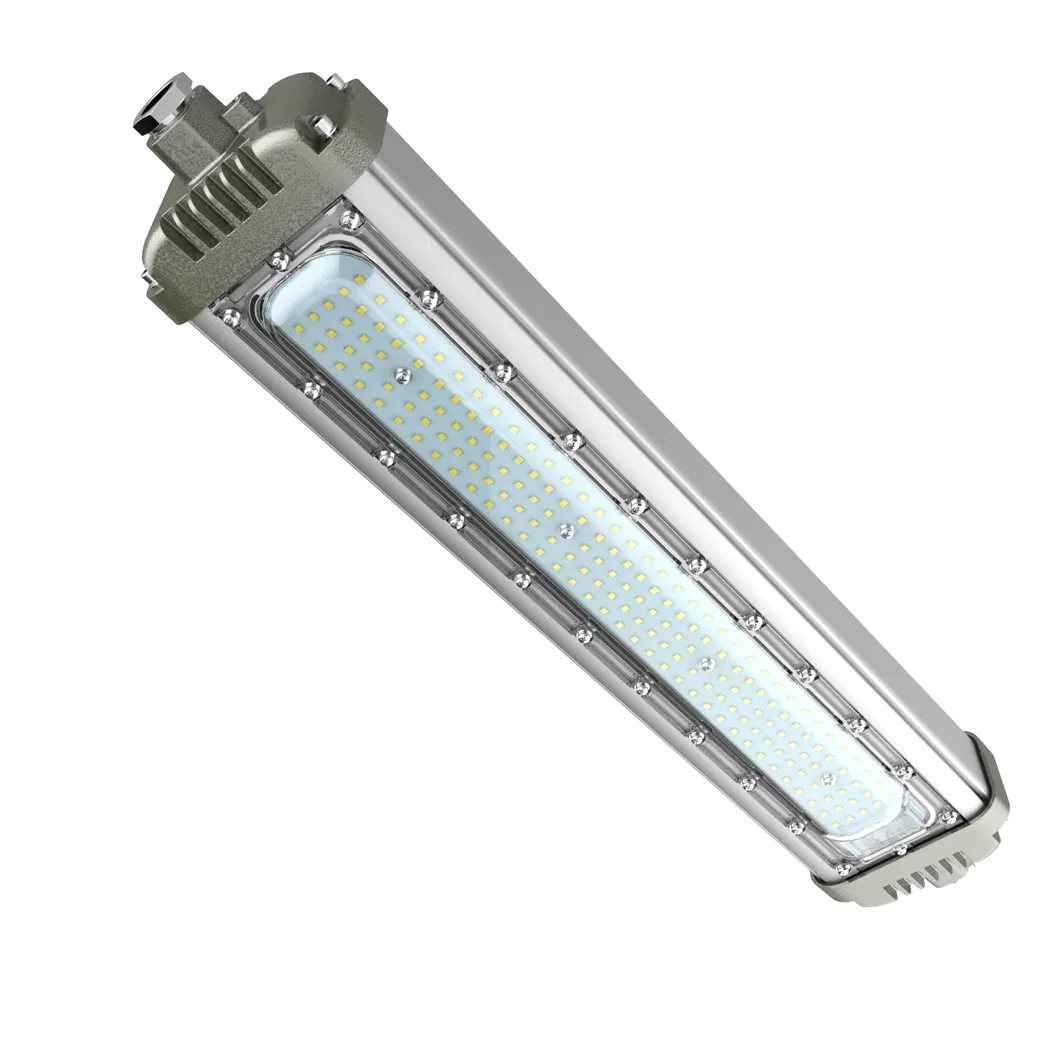

Using 5mm thick borosilicate tempered glass, it's impact-resistant and boasts a light transmittance of 95% to 98%. The interior is treated with a prismatic finish for glare prevention.

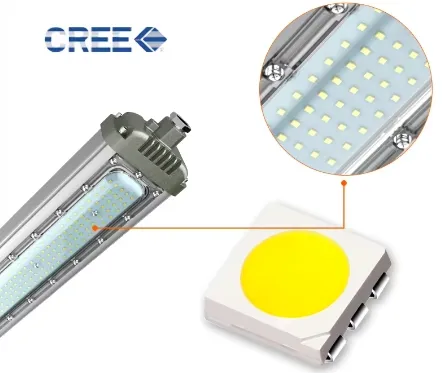

The first-line brand CREE LED light-emitting chip is adopted, which has high brightness and high light efficiency, and the chip light efficiency is >120 lm/W. The performance is stable and the average service life of the chip is as long as 100,000 hours. Smt array patch technology is adopted, which has high heat conduction efficiency and low light attenuation.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Sample needs 5-7 days, mass production time needs 7-12 days.
1pc for sample checking is available.
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-7 days to arrive.
Yes, we offer 2-5 years warranty for our products.
First, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Second, during the guarantee period, we will send new lights. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
