APT03 160lm/W Outdoor IP67 Waterproof LED Aluminum Profile 3-Ton Weight Pressure for Car Parking
Basic Info
Model NO.
APT03
Shape
Square
Application
Decoration, Floor
Power
25W/Meter Max
CCT
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
CRI
Ra 80 / Ra 90
Type
Recessed
Diffuser
PMMA
Lead Time
8 Working Days
Warranty
3 Years
Transport Package
Paper Carton
Specification
1M, 2M, 3M optional. customized length accept
HS Code
9405409000
Production Capacity
1,000PCS Per Day
Product Description

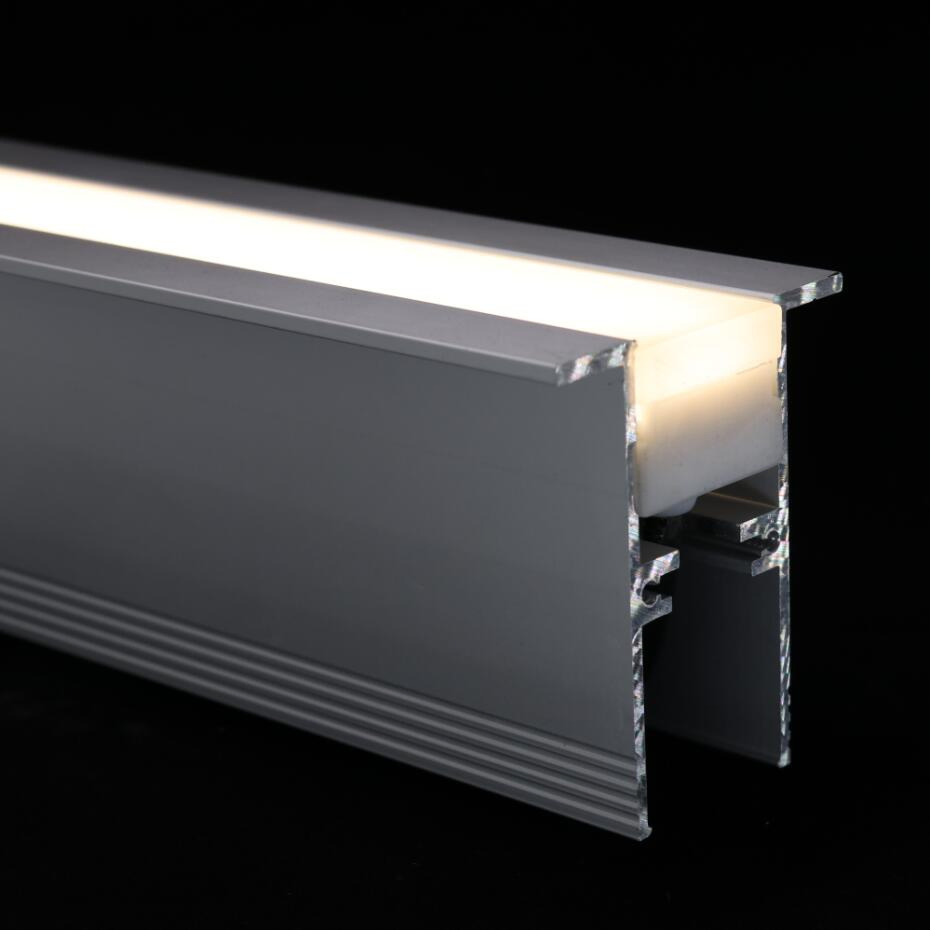

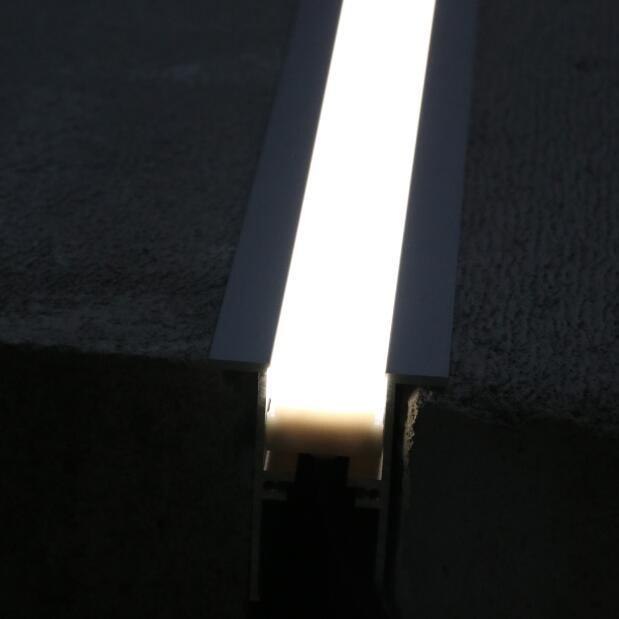

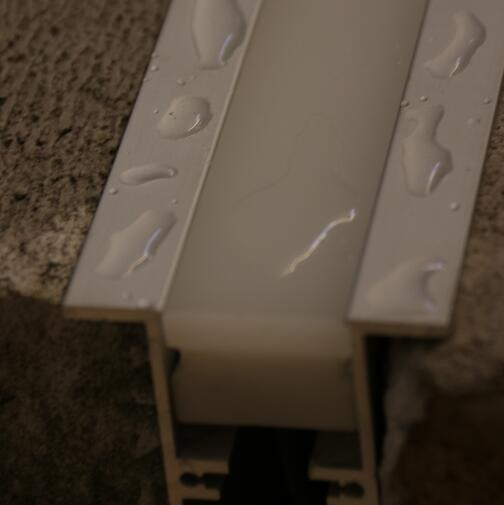

APT03-AL01 LED linear light features a simple and concise design. The 10mm thickness PMMA diffuser delivers perfect dots-free illumination. The PMMA extrusion single-body profile is sealed by an injection machine, ensuring excellent waterproof function with virtually no darkness at the ends. Even when jointing continuous units together, there is no dark area at the joint points. Constructed with high-quality extruded aluminum housing and die-cast aluminum end caps.
Structure Diagram
Key Advantages
Linear light design, homogeneous and dots-free illumination
2500K-3000K, 4000-4500K, 6000-6500K, Red, Blue, Green, Yellow etc.
DC 12V / DC 24V
Ra 80 / Ra 90
1000mm
APT03-AL01 -25W
25W
2835 SMD
1850-2080lm
2500K-3000K, 4000-4500K, 6000-6500K
DC 12V / DC 24V
Ra 80 / Ra 90
1000mm

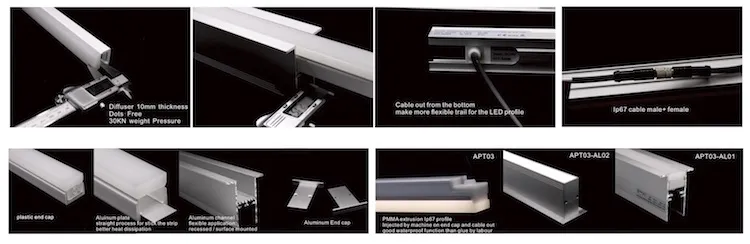

Product Details
Application Areas

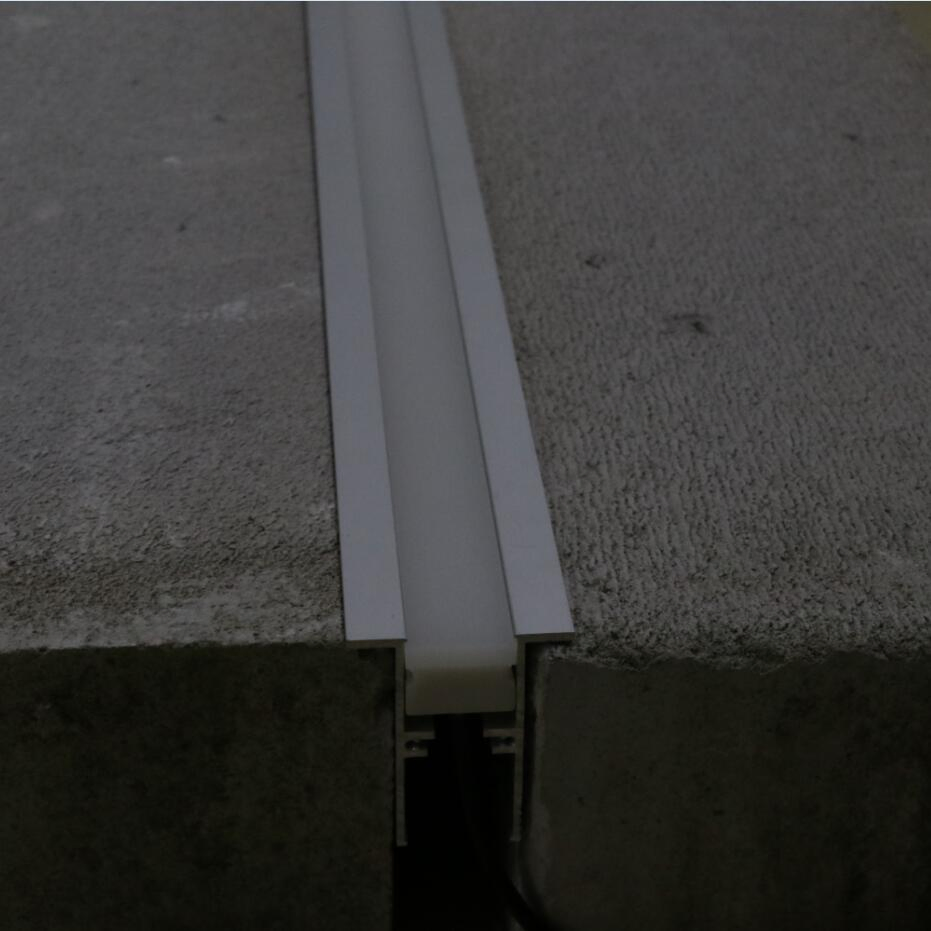

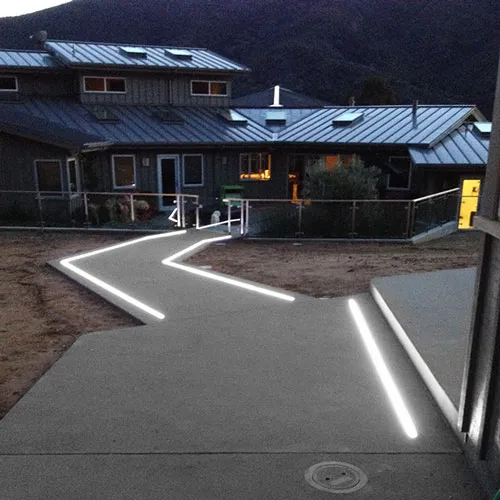

Perfect for parking lots, park areas, pathways, and ground lighting projects to showcase clean, linear light lines directly in the ground.
Frequently Asked Questions
Q1: Can I request free samples for evaluation?
A: We can supply you with samples for free, but delivery charges are covered by customers. To avoid misunderstandings, providing an International Express Account for Freight Collect is highly appreciated.
Q2: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 metric ton for each model.
Q3: How are custom mold fees handled?
A: If we need to open a new mold for your custom ordered profiles, the mold fee will be refunded once the order quantity reaches a designated volume.
Q4: What is the difference between theoretical weight and actual weight?
A: Actual weight refers to the real weight including packaging. Theoretical weight is calculated based on the specifications drawing, multiplying the profile weight per meter by the total length.
Q5: What are your accepted payment terms?
A: Our standard terms are 30% T/T deposit + 70% T/T before container loading.
