| Model NO. | WS-HL-075L30-B |
| Power | 30-75W |
| Emitting Color | 3000-6500K |
| Base Type | Linear Track Light |
| Wire | OEM |
| IP Rating | IP20 |
| Certification | CE, EMC, LVD, RoHS |
| Input Voltage | AC220-240V 50/60Hz |
| LED Chips Brand | San'an, Lumi-LEDs |
| Operating Temp | -20~+40 ℃ |
| Storage Temp | -40~+85 ℃ |
| PF | ≥0.9 |
| CCT | 3000K-6500K |
| Ra | ≥80 |
| Lumen(W) | 160/180 Lm/W |
| Driver | Flicker-Free Brand Driver |
| Installation | Ceiling Installation, Wire Rope Hanging |
| Transport Package | Export Neutral Carton |
| Specification | 750*66*50mm |
| Trademark | OEM |
Package Size: 123.00cm * 33.00cm * 25.00cm
Package Gross Weight: 17.000kg

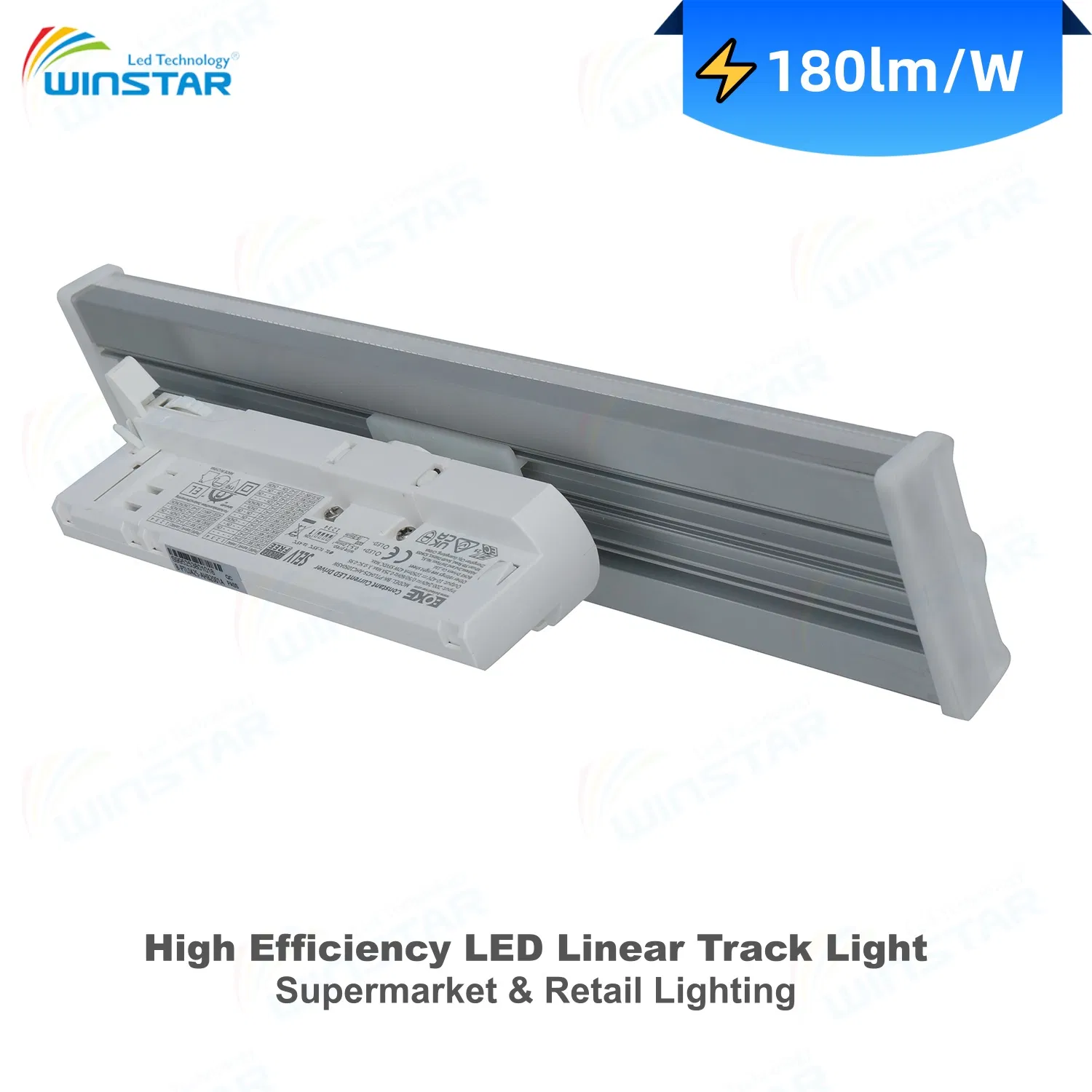

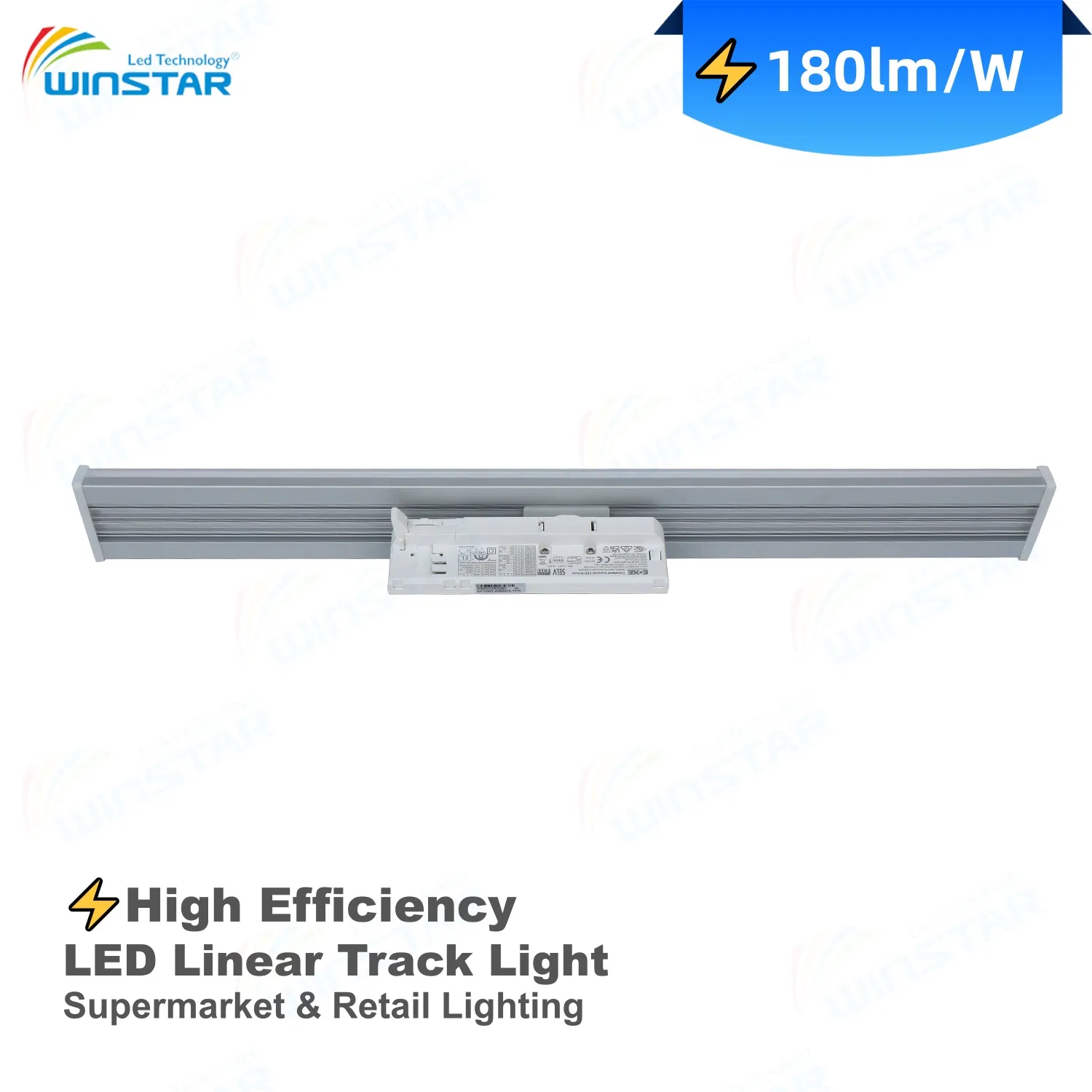

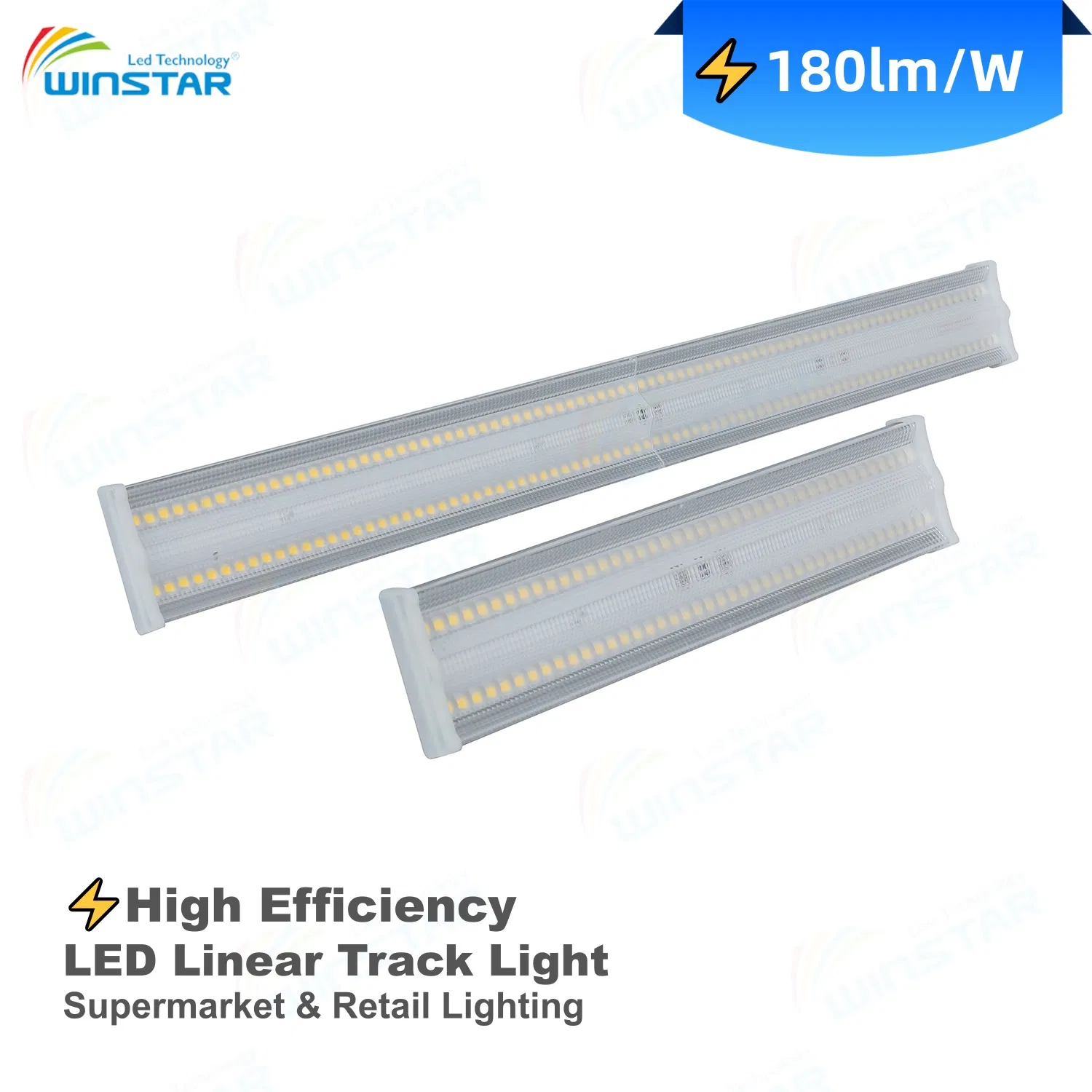

Energy Saving LED Linear Track Lighting System 180lm/W for Supermarket Aisle & Shelf 38W 6840lm CE Certified | 60 90 Degree Beam Angle 5 Years Warranty Light
160-180LM/W | 30W 38W 60W 75W 80W | 3000K-6500K
Professional Linear Lighting Solution for Modern Retail Spaces

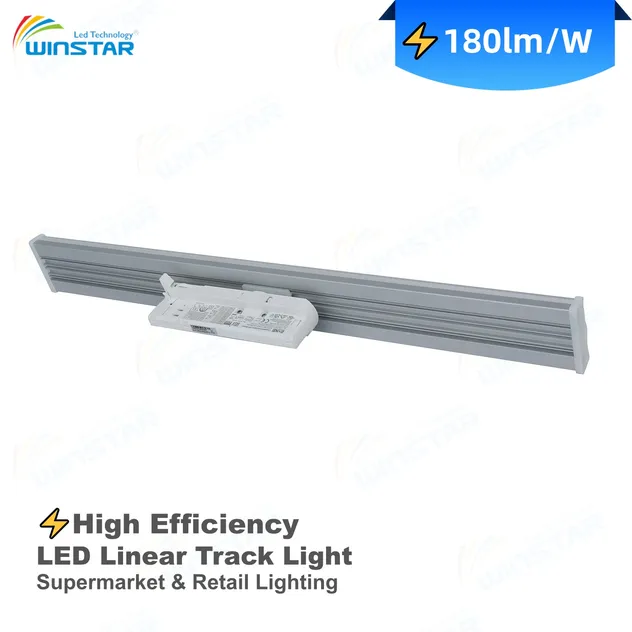

The WS-HL Series is a high-performance LED linear track light system engineered specifically for supermarkets, clothing stores, retail shops, and commercial display spaces.
We offer two distinct performance tiers to match your project requirements and budget:
| Two Series to Meet Every Budget & Performance Need | ||||
|---|---|---|---|---|
| Series | Model Length | Efficacy | Power Range (OEM) | Best For |

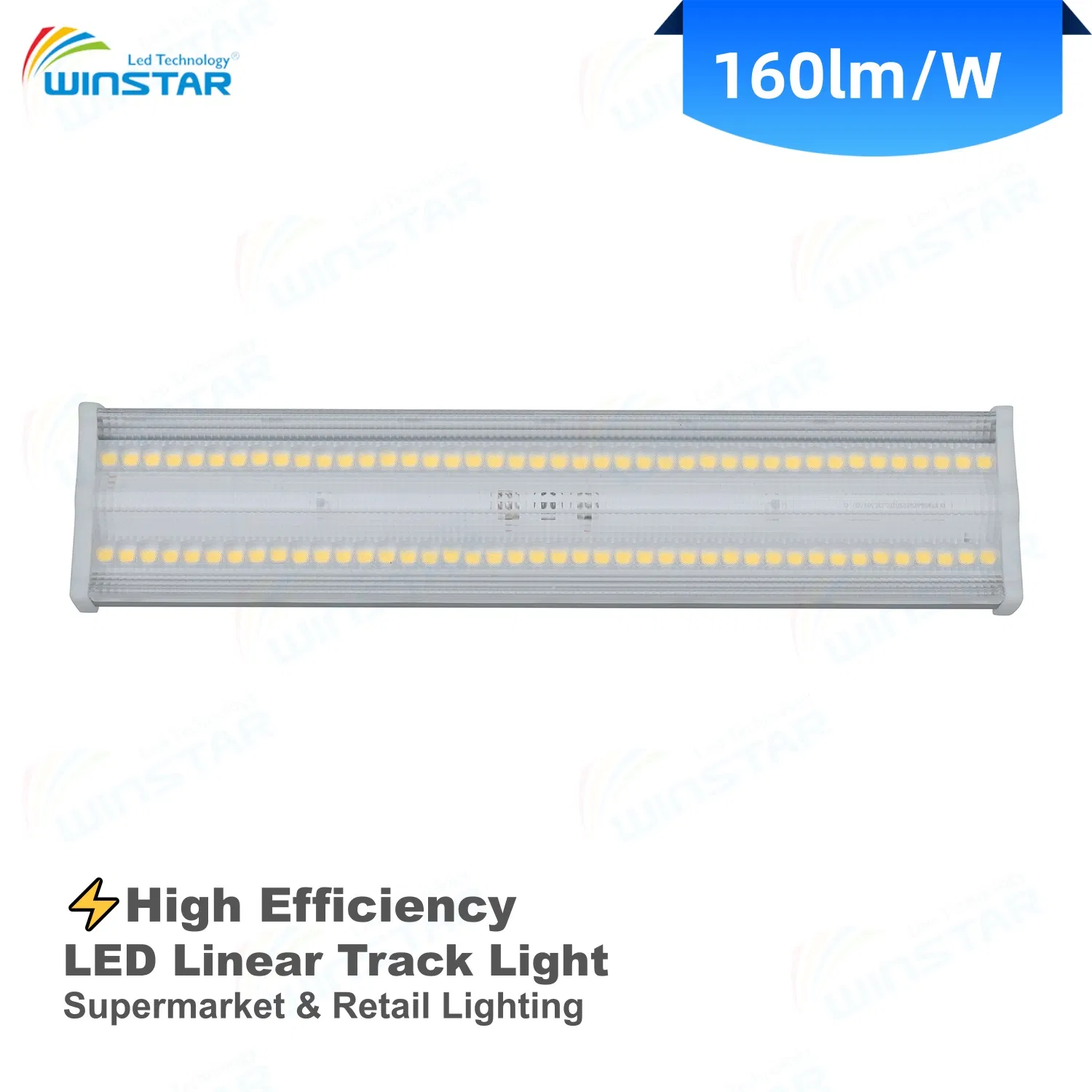

| Standard Series | 600/1200/1500mm | 160lm/W | 30/60/80W | Cost-effective mainstream retail projects |

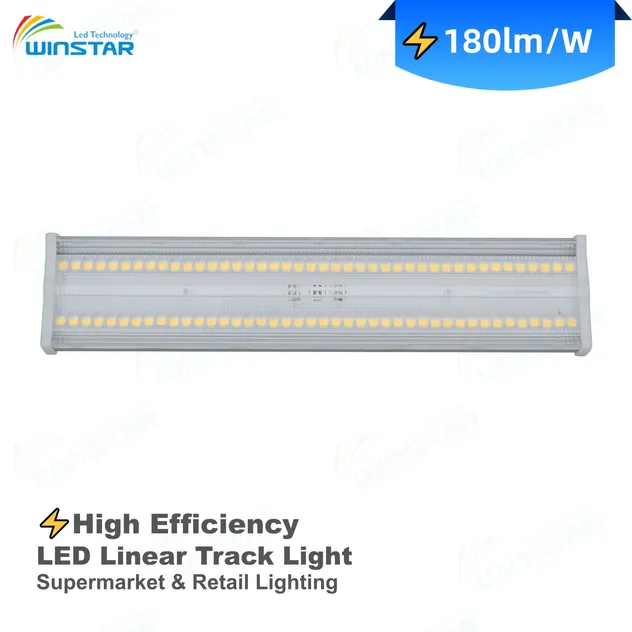

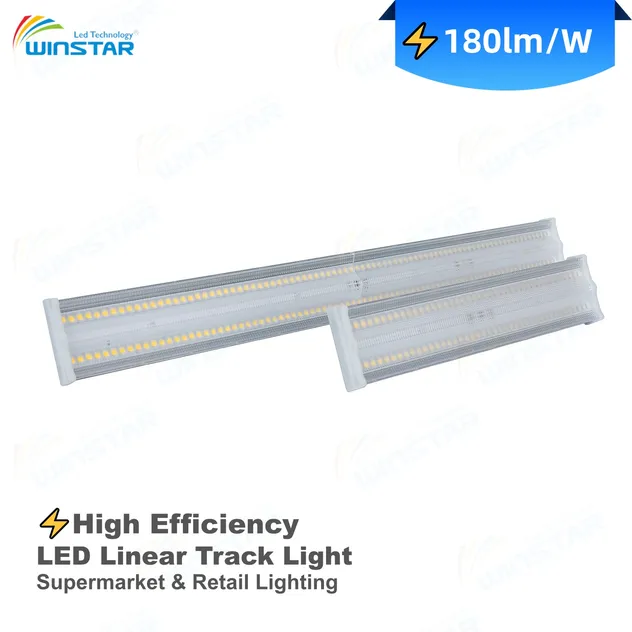

| TYPE C Series | 750/1500mm | 180lm/W | 38/75W | Premium projects demanding maximum energy savings |

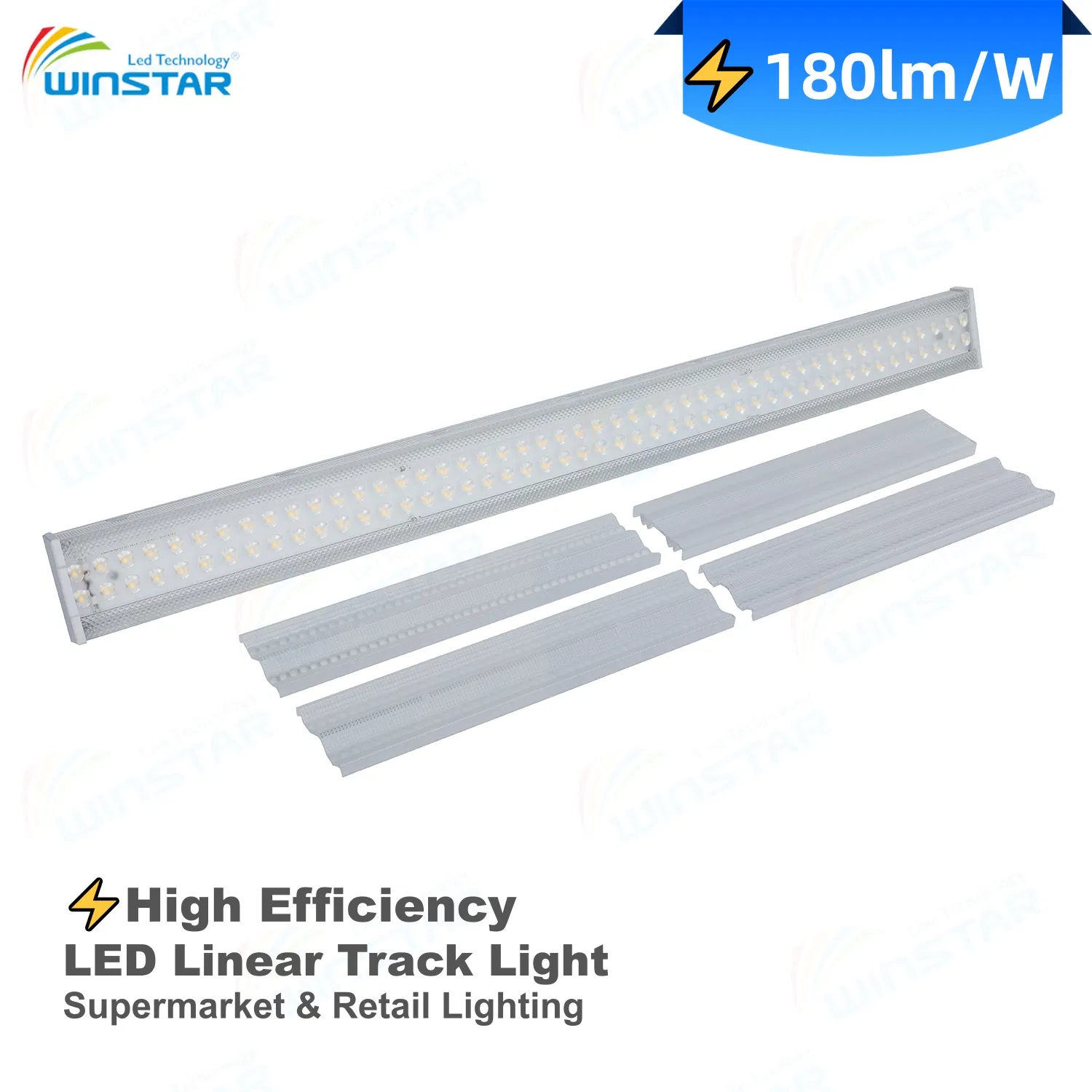

Both series feature replaceable modular design and professional optical lens technology, delivering superior illumination quality while dramatically reducing operational costs.
Whether you are illuminating fresh produce aisles, highlighting fashion mannequins, or creating an inviting ambiance in a boutique store, the WS-HL Series offers the flexibility, efficiency, and reliability your project demands.
Traditional track lighting in supermarkets and clothing stores faces three critical pain points:
The WS-HL Series is the professional upgrade your project needs.
| Key Selling Points: Where Performance Meets Savings | |||
|---|---|---|---|
| Feature | WS-HL Series | Standard Market Track Light | Advantage for You |
| Efficacy | 160 lm/W (Standard) / 180 lm/W (TYPE C) | 100 - 120 lm/W | Up to 50% Less Energy for Same Brightness |
| Power Equivalence | 30W = 4800 lm / 38W = 6840 lm | Old 70W Halogen = 5600 lm | Direct Replacement without rewiring |
| Maintenance | Replaceable Module | Integrated (Whole Unit Swap) | Save 70% on Maintenance Costs |
| Optical System | Optical Lens + Low Glare Design | Diffused Cover (Poor Control) | Better visual comfort, enhanced merchandise appeal |
| Beam Flexibility | 60°/90°/Single & Double Polarization | Fixed 120° only | Tailored lighting for aisles, shelves & displays |
| Smart Control | on-off/ Bluetooth CASAMBI / DALI / 0-10V (Customizable) | Not Available | Ready for Smart Building Integration |
Scenario: A clothing store with 50 track lights, running 12 hours/day.
Old Solution: 50pcs x 70W Halogen = 3.5 kW per hour.
Standard Solution: 50pcs x 30W LED = 1.5 kW per hour.
TYPE C Solution: 50pcs x 38W LED = 1.9 kW per hour (with even higher brightness output).
Annual Savings: Approx. $1,500 - $2,000 USD in electricity (varies by region).
| Series | Model No. | Dimensions (mm) | Power(/OEM) | Lumen (lm) | Efficacy | CRI | CCT |
|---|---|---|---|---|---|---|---|
| Standard | WS-HL-06L30-B | 600 x 66 x 50 | 30W | 4800 lm | 160 lm/W | Ra≥80 | 3000/4000/5000/6500K |
| Standard | WS-HL-12L60-B | 1200 x 66 x 50 | 60W | 9600 lm | 160 lm/W | Ra≥80 | |
| Standard | WS-HL-15L80-B | 1500 x 66 x 50 | 80W | 12800 lm | 160 lm/W | Ra≥80 | |
| TYPE C | WS-HL-075L30-B | 750 x 66 x 50 | 38W | 6840 lm | 180 lm/W | Ra≥80 | |
| TYPE C | WS-HL-150L60-B | 1500 x 66 x 50 | 75W | 13500 lm | 180 lm/W | Ra≥80 | |
| Lens: | High-transmittance Optical Lens for precise light distribution | ||||||
| Standard: | Single Fixed CCT, power, on-off | ||||||
| Customization: | Bluetooth CASAMBI/ DALI / 0-10V (MOQ applies) | ||||||

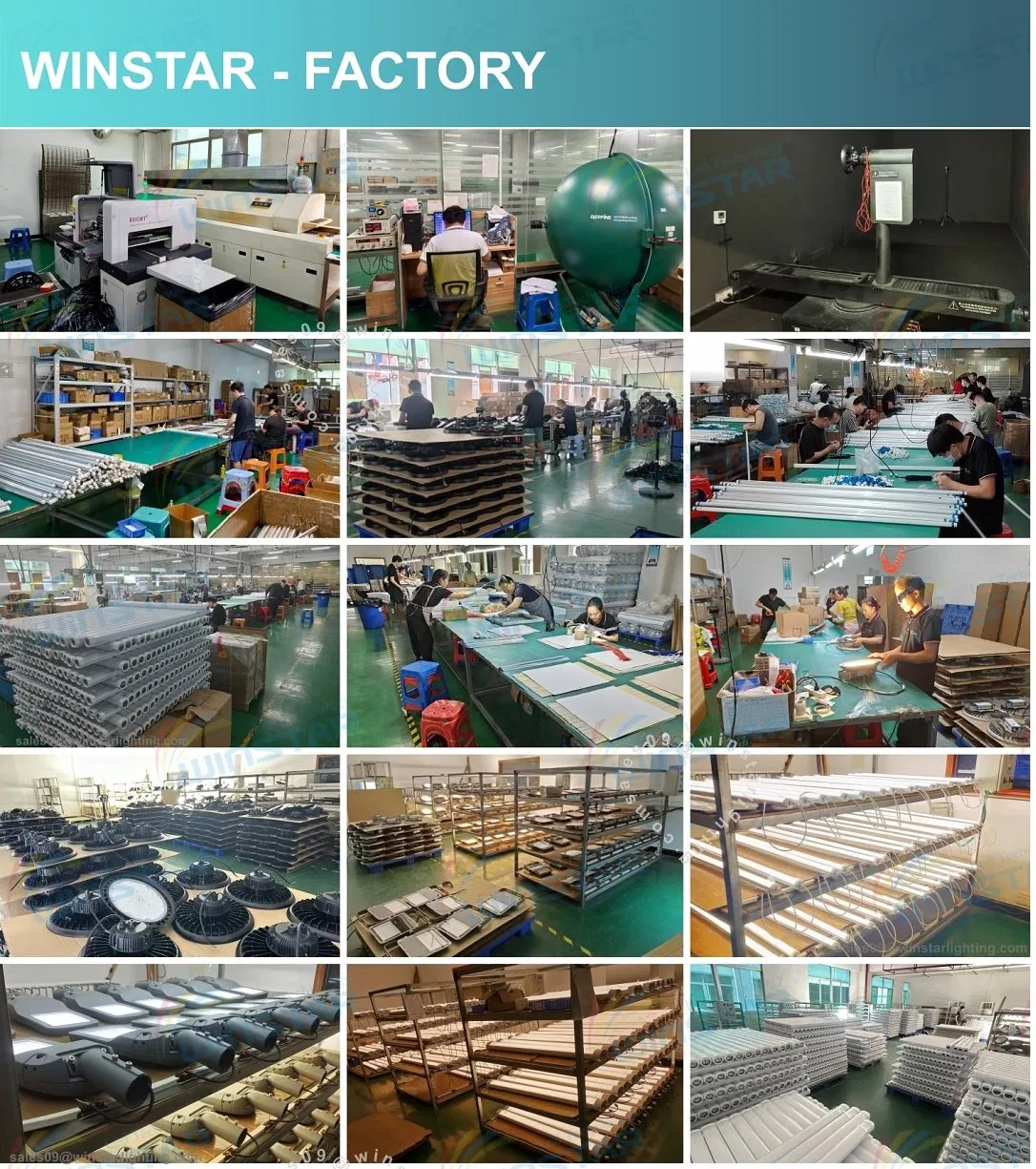

Founded in 2009, our manufacturing facility integrates R&D, production, and sales. We own a 5,000 sqms factory, with over 100 staff and a core R&D team carrying 20+ years of industry experience.
Specialized in high-lumen LED lighting (including 200lm/W tubes, 180lm/W panels, 180lm/W tri-proof lights, 210lm/W high bays, and 180lm/W Linear Track lights for commercial, industrial & agricultural environments), we hold ISO9001, TUV, CE, ROHS, and SAA certifications.
Our products are exported to 60+ countries across Europe, North America, South America, Southeast Asia, and the Middle East, delivering premium quality, on-time delivery, OEM services, and custom solutions.
Ready to Upgrade? Choose Your Series.
Whether you need the cost-effective Standard Series (160 lm/W) or the ultra-premium TYPE C Series (180 lm/W), we have the right solution for your commercial project.
