| Model NO. | ST-T3006 |
| Power | 21-30W |
| Emitting Color | 2700K-6000K |
| Base Type | Track Rail |
| Wire | 2 Wires; 3 Wires; 4 Wires; 6 Wires |
| IP Rating | IP33 |
| Certification | CE, EMC, LVD, RoHS |
| Input Voltage | 220V |
| LED Chips Brand | Citizen; Luminus; CREE |
| Lumens | 3000-3500lm |
| CRI | 90; 95 |
| Sdcm | <3 |
| Dimming | No/off; Triac; 0-10V; Dali |
| PF | >0.95 |
| Flicker-Free | Yes |
| Housing Color | White; Black; Customed |
| Beam Angle | 15°; 24°; 36°; 50° |
| Optics | Lens/Reflector |
| LED Brand | Bridgelux/Luminus |
| Transport Package | Carton |
| Specification | Dia 85*L165mm |
| Origin | China |
| HS Code | 9405409000 |
| Production Capacity | 30000PCS/Year |
| Package Size | 9.50cm * 9.50cm * 27.00cm |
| Package Gross Weight | 0.800kg |

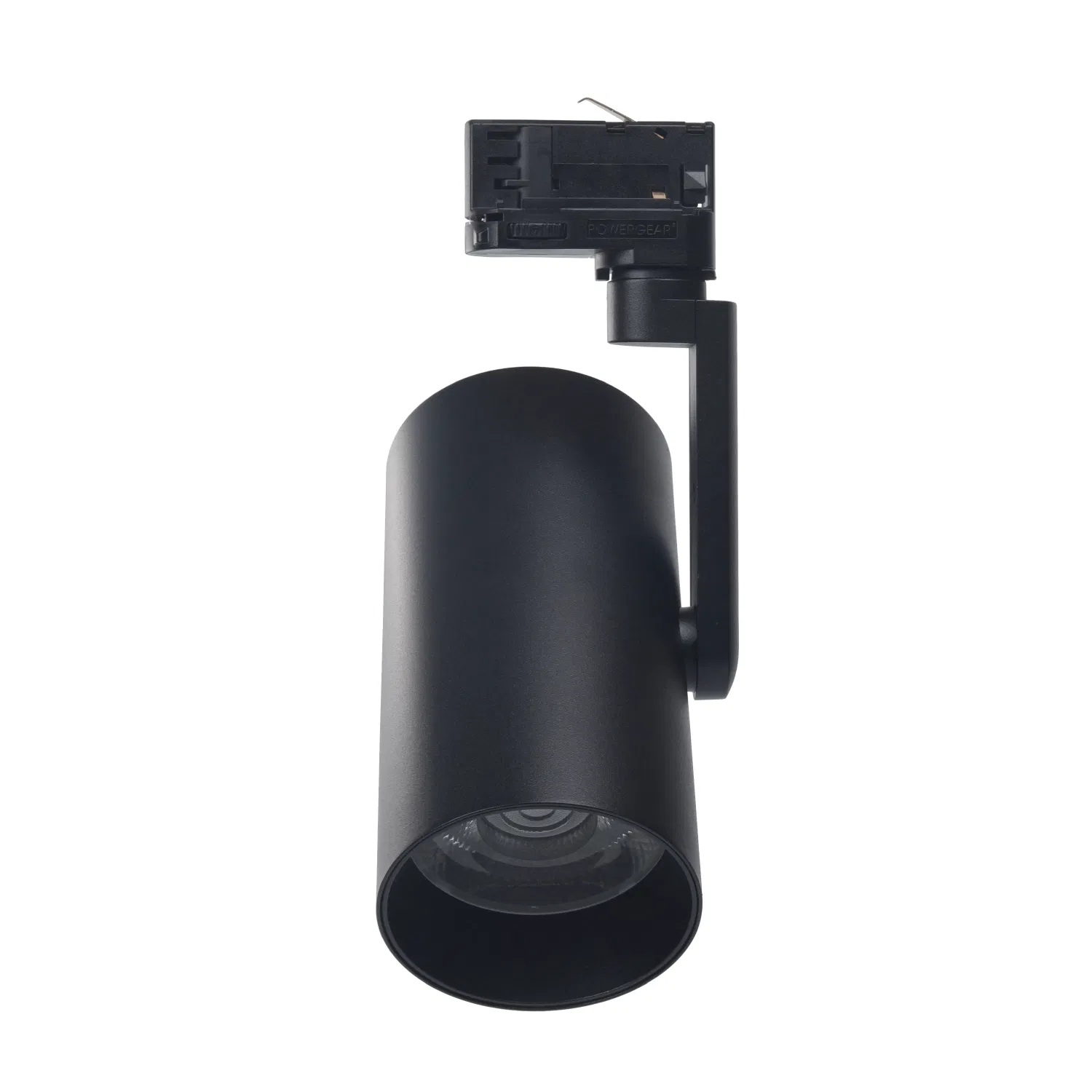

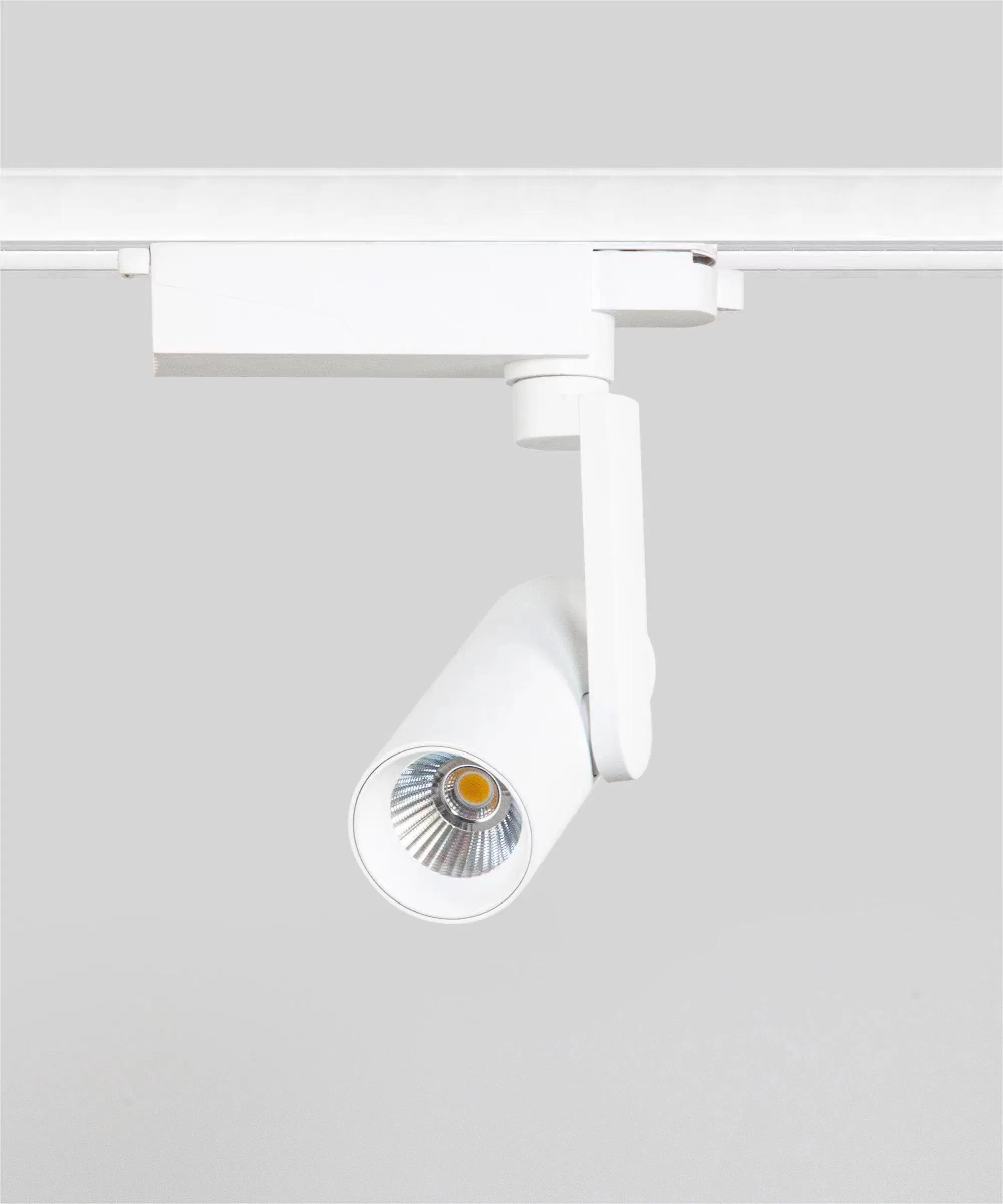

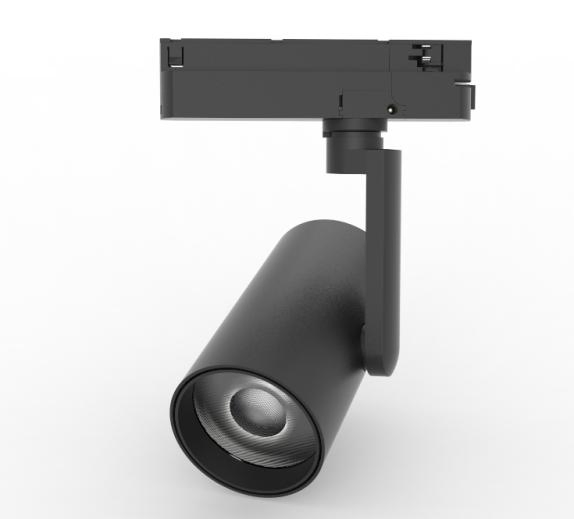

This track light is designed with a built-in driver, which gives it an exceptionally compact look. While most LED track lights with built-in drivers on the market suffer from poor heat dissipation, this model utilizes a high-performance driver specifically engineered for built-in track lights to resist high temperatures. Despite the integrated design, it ensures a long lifespan of 50,000 hours and a reliable 5-year warranty.
This series of track lights adopts Tridonic, Lifud, and Boke drivers for non-dimming options; HEP drivers for 0/1-10V dimming; and Rxpower drivers for DALI dimming setups.

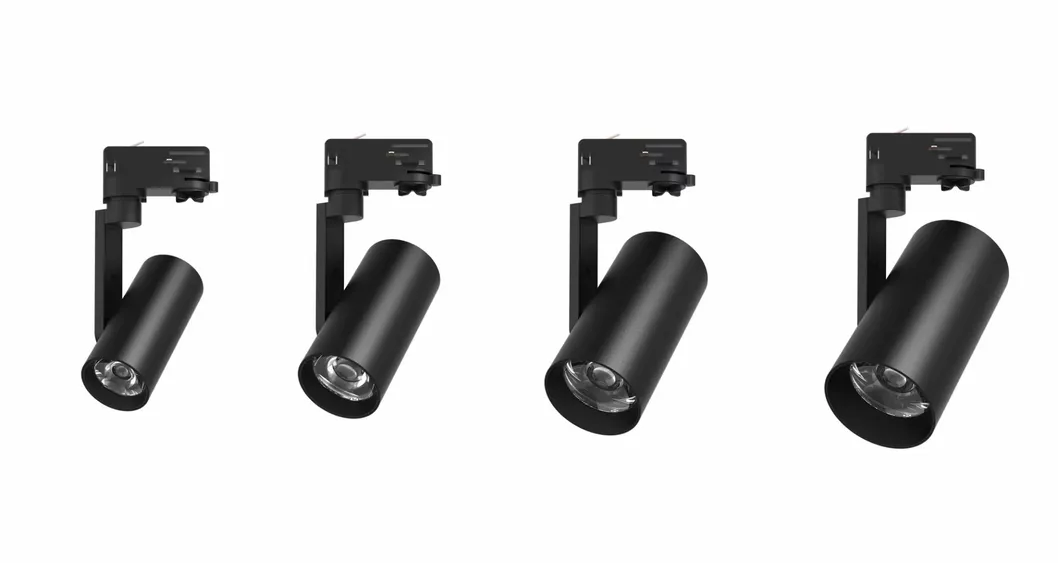

| Specification | ST-T1006 | ST-T2006 | ST-T3006 |
|---|---|---|---|
| Power (W) | 10W | 20W | 30W |
| Lumen Output | 1000-1300lm | 1900-2150lm | 3000-3500lm |
| Beam Angle | 15° / 24° / 36° / 50° | 15° / 24° / 36° / 50° | 15° / 24° / 36° / 50° |
| Size | 65*145mm | 75*155mm | 85*165mm |
| LED Brand | Bridgelux / Citizen / Luminus / CREE | ||
| Color Temperature (CCT) | 2700K / 3000K / 4000K / 5000K / 6000K | ||
| Rendering Index (CRI) | Ra>90 / Ra>95 / Ra>97 | ||
| Color Consistency (SDCM) | <3 | ||
| Lumen Maintenance Factor (LLMF) | >80% | ||
| Driver Brand | Philips / Osram / TCI / Powergear | ||
| PF | ≥0.95 | ||
| Flicker-free | Yes | ||
| Dimmable | non-dim / Triac-dim / 0-10V dim / DALI dim | ||
| Track Options | 2/3 wires (single phase) / 4 wires 3 phase / 6 wires | ||
| Material (Heatsink) | cold forging #1070 aluminum | ||

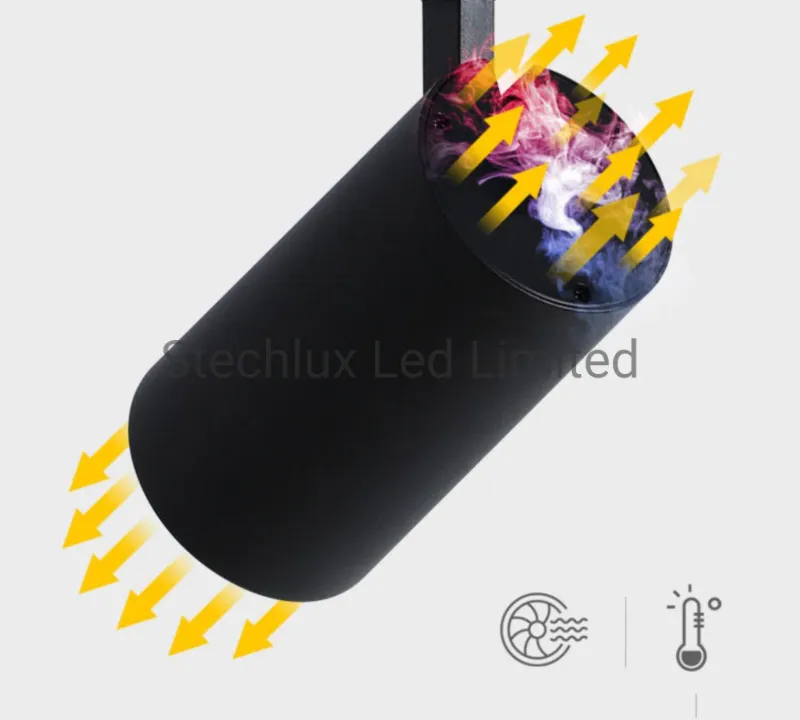

The lamp body (heatsink) of this track light utilizes pure aluminum #1070 with state-of-the-art cold forging technology. The cooling performance of cold forged aluminum is 30% higher than #6063 profile aluminum (extrusion) and 2 times more efficient than die-cast ADC12 aluminum.

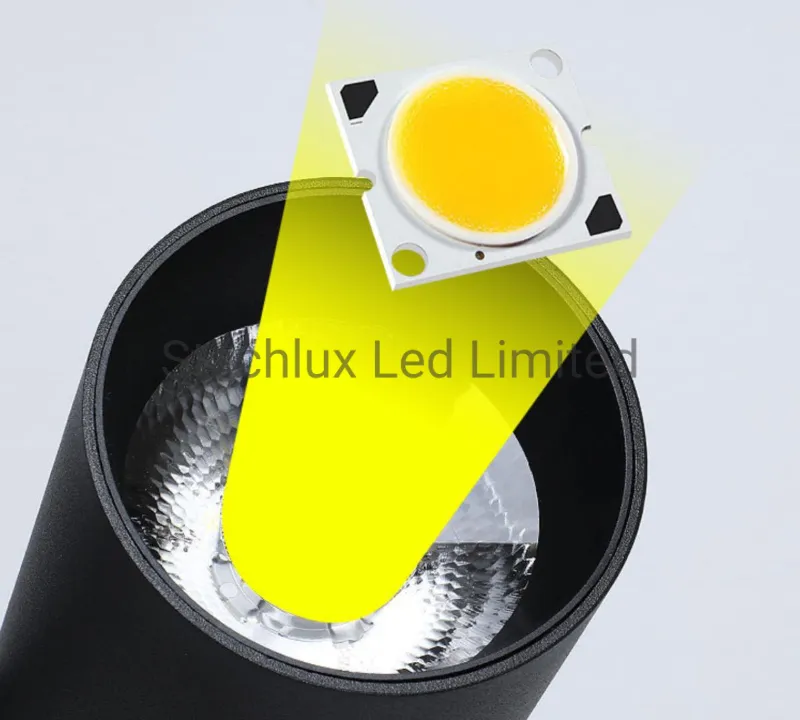

We use original Citizen or Luminus COB LED chips. They deliver not only a high color rendering index (CRI 90 or 95) but also superior luminous efficiency. A higher CRI restores the true, vivid colors of illuminated objects, while high efficiency saves energy.

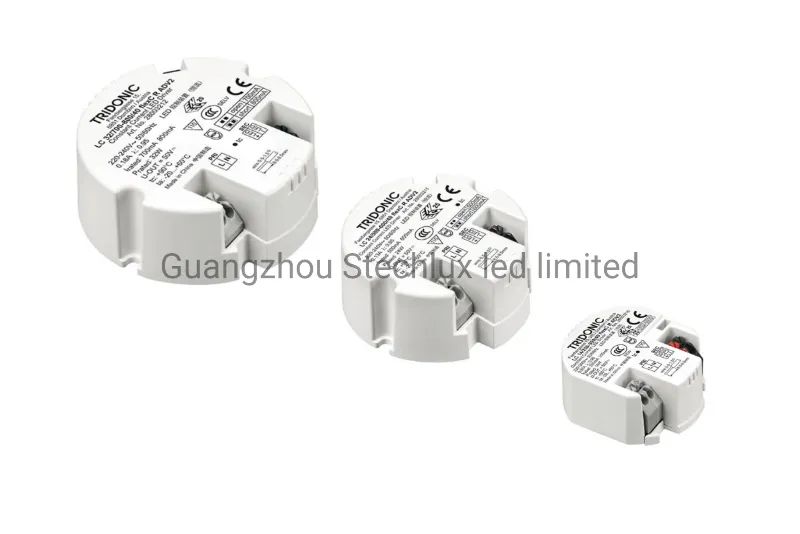

Since the driver is integrated inside the lamp body, we use high-temperature resistant glued drivers to ensure stable performance. The Tridonic driver we utilize features a Tc > 90ºC rating, making it the premier choice for integrated track lights. Alternative premium brands like Lifud, Boke, and HEP are also available.

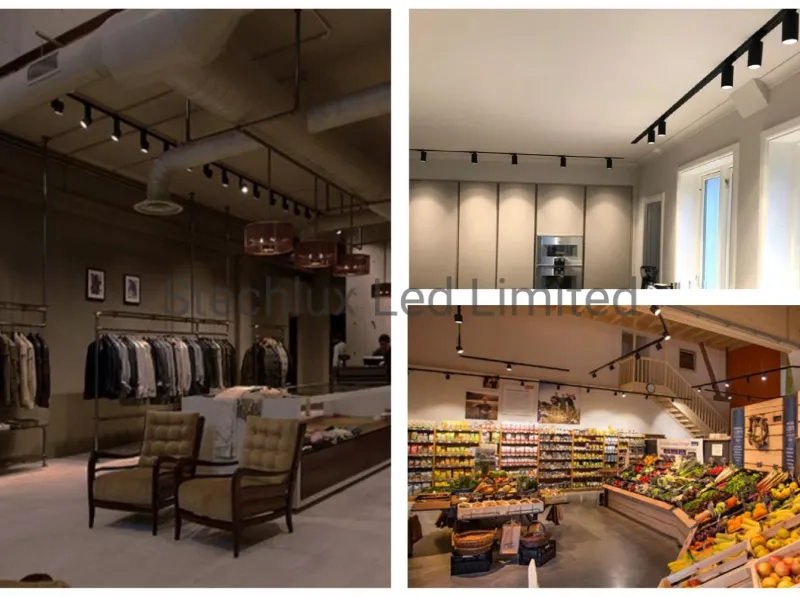

This series of track lights is ideally suited for commercial lighting projects, high-end hotels, villas, and residential mansions, offering a comfortable, healthy, and premium lighting environment.
