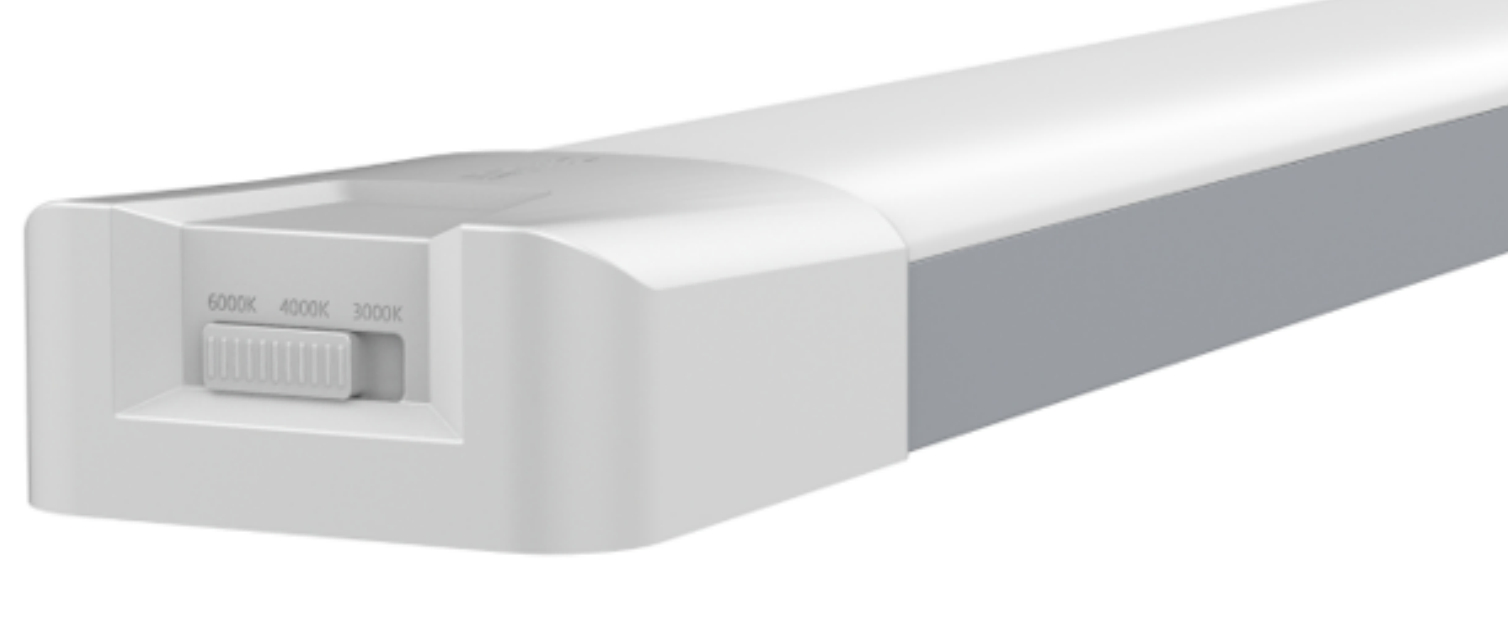

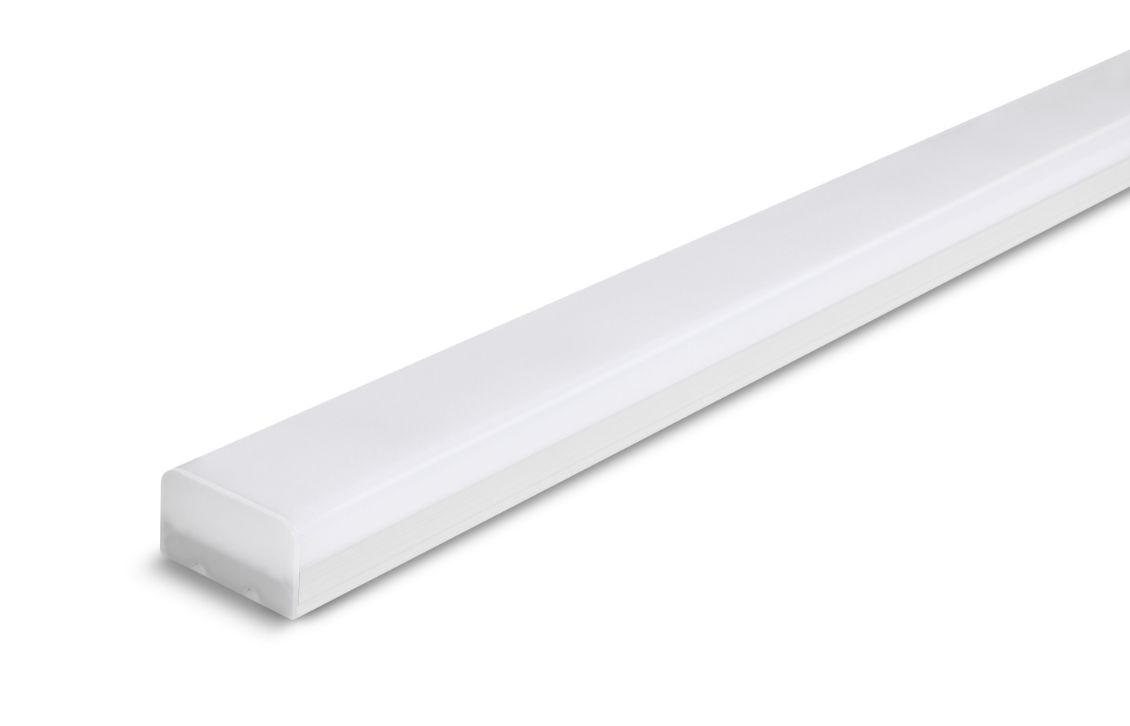

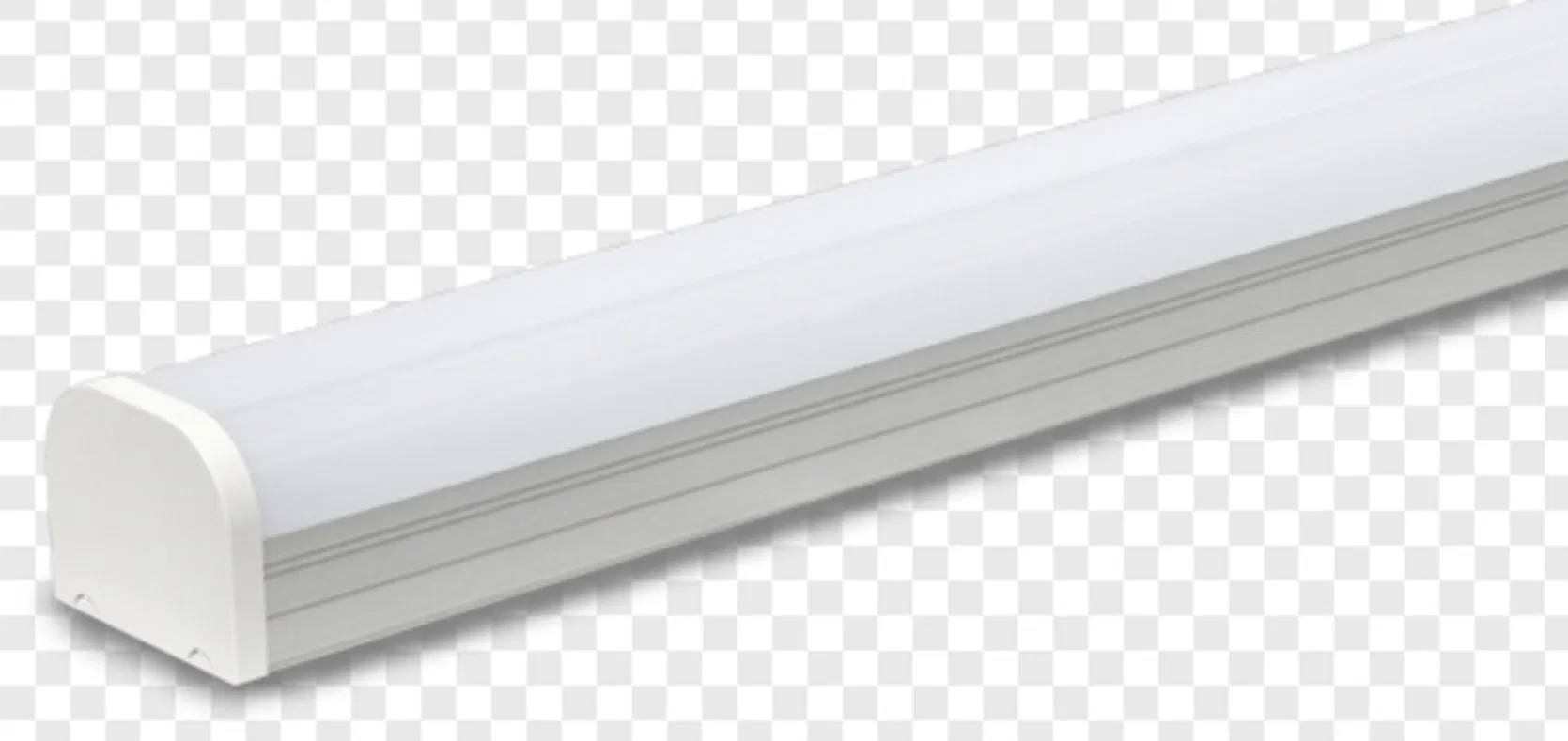

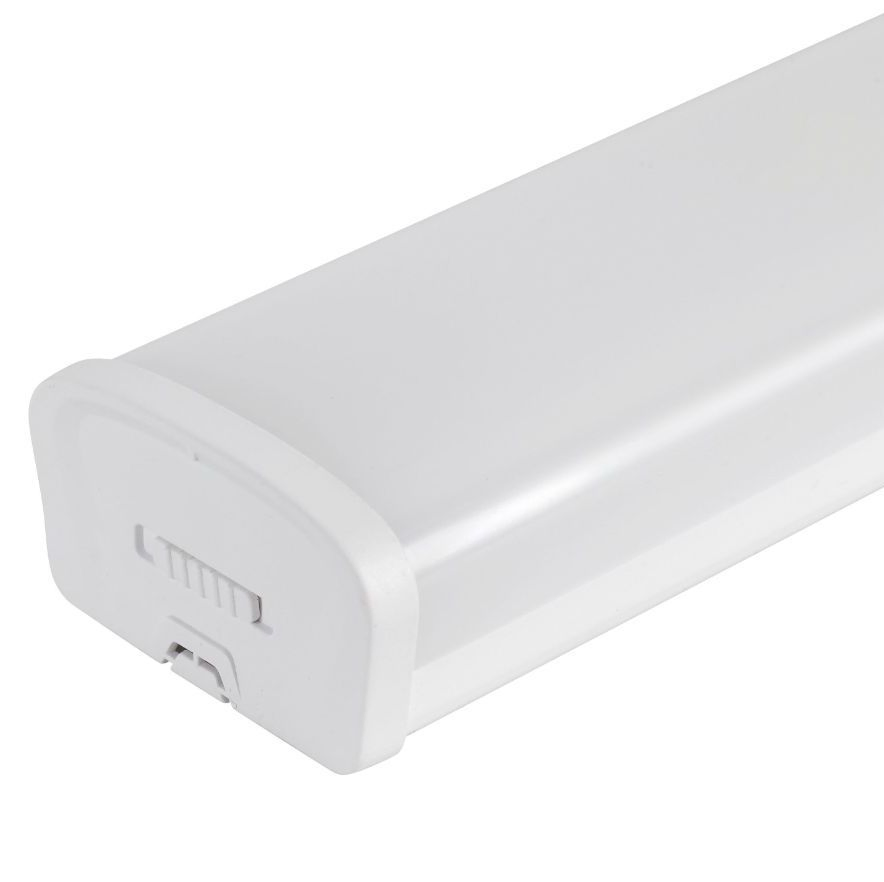

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
1 / 5
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO. LL-7231-60W
IP Rating IP20
CCT 3000K, 4000K, 6000K
Driver No-Isolated Driver
Lumen 100lm/W
Certificates CE-EMC, CE-LVD, RoHS, En62471
Wattage 80W
CRI >80
Sdcm <6
Warranty 2~3 Years
Transport Package 1PCS/Box
Specification Indoor light
Origin China
HS Code 9405429000
Production Capacity 100000PCS/Month
Packaging & Delivery
Package Size 48.00cm * 48.00cm * 30.00cm
Package Gross Weight 7.000kg

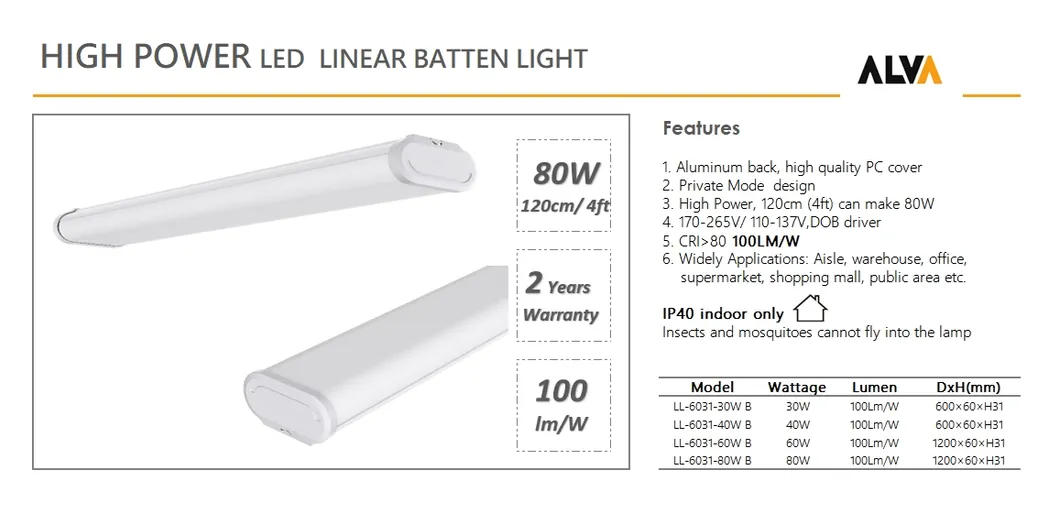

Product Features
  • Aluminum back, high quality PC cover
  • Private Mode design
  • High Power, 120cm (4ft) can make 80w
  • 170-265V/ 110-137V, DOB driver
  • CRI>80 100LM/W
  • Widely Applications: Aisle, warehouse, office, supermarket, shopping mall, public area etc.
  • IP40 indoor only, Insects and mosquitoes cannot fly into the lamp
Product Pictures

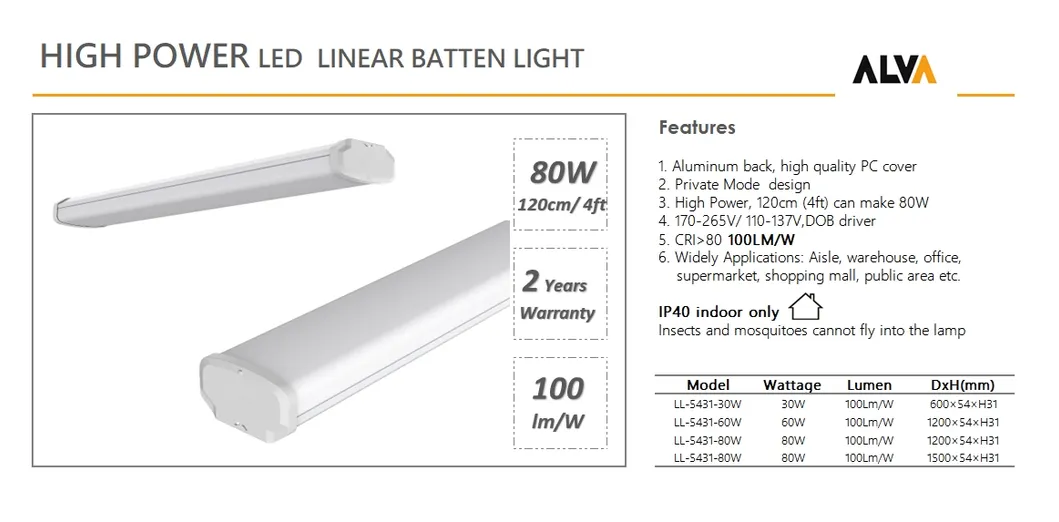

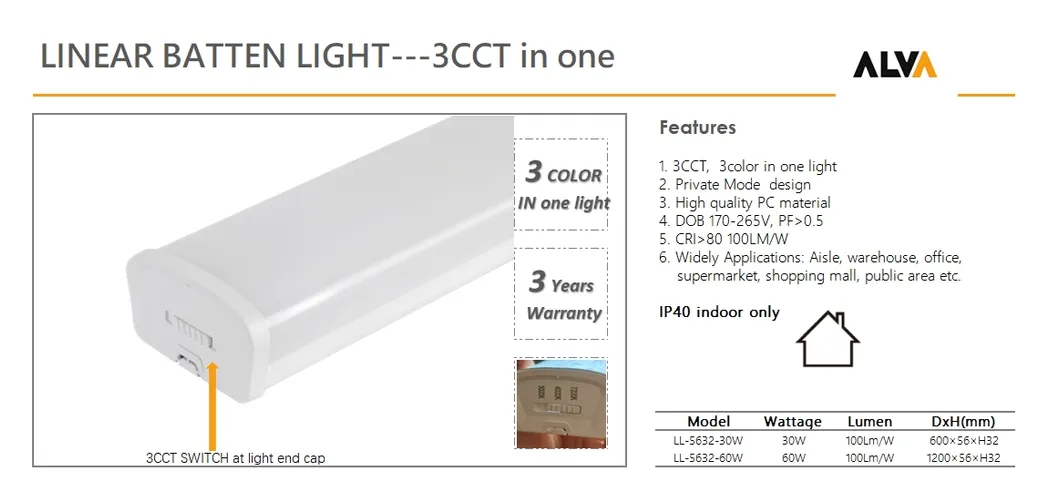

3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One 120cm 4FT Tube High Power LED Linear Batten Light
Product Parameters
Item No Watts Voltage (V) PF Surge Color Ra (Lm/W) IP Dimension (mm) QTY/CTN Warranty
LL-7231-18W 18W 170-265V 0.5 2.5KV 3CCT 80 135Lm/W IP20 600×72×H31 20 3years
LL-7231-36W 36W 170-265V 0.9 2.5KV 3CCT 80 135Lm/W IP20 1200×72×H31 20 3years
LL-7231-60W 60W 170-265V 0.9 2.5KV 3CCT 80 135Lm/W IP20 1500×72×H31 20 3years
LL-6031-30W 30W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×60×H31 30 2years
LL-6031-40W 40W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×60×H31 30 2years
LL-6031-60W 60W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×60×H31 30 2years
LL-6031-80W 80W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×60×H31 30 2years
LL-6031-30W B 30W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×60×H31 30 2years
LL-6031-40W B 40W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×60×H31 30 2years
LL-6031-60W B 60W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×60×H31 30 2years
LL-6031-80W B 80W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×60×H31 30 2years
LL-5431-30W 30W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×54×H31 30 2years
LL-5431-60W 60W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×54×H31 30 2years
LL-5431-80W 80W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×54×H31 30 2years
LL-5431-80W 80W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1500×54×H31 30 2years
Item No Watts Voltage (V) PF Surge Color Ra (Lm/W) IP Dimension (mm) QTY/CTN Warranty
LL-5632-30W 30W 170-265V 0.5 2.5KV 3CCT 80 100Lm/W IP20 600×56×H32 30 3years
LL-5632-60W 60W 170-265V 0.5 2.5KV 80 100Lm/W IP20 1200×56×H32 30 3years
LL-5732-30W 30W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 600×57×H32 30 3years
LL-5732-60W 60W 170-265V 0.5 2.5KV 6500K 80 100Lm/W IP20 1200×57×H32 30 3years
LL-5842-30W 30W 175-265V 0.9 2.5KV 6500K 80 100Lm/W IP20 600*58*H42 20 3years
LL-5842-60W 60W 175-265V 0.9 2.5KV 6500K 80 100Lm/W IP20 1200*58*H42 20 3years
LL-7523-72W 72W 175-265V 0.5 2.5KV 6500K/ 4000K/ 3000K 80 100Lm/W IP20 1200*75*H23 20 2years
LL-7523-72W 72W 85-265V 0.5 2.5KV 80 100Lm/W IP20 1200*75*H23 20 2years
LL-6023-25W 25W 175-265V 0.5 2.5KV 6500K/ 4000K/ 3000K 80 100Lm/W IP20 600×60×H23 20 2years
LL-6023-50W 50W 175-265V 0.5 2.5KV 80 100Lm/W IP20 1185×60×H23 20 2years
LL-6023-80W 80W 175-265V 0.5 2.5KV 80 100Lm/W IP20 1185*75*H30 20 2years
LL-7523-60W 60W 175-265V 0.5 2.5KV 6500K/ 4000K/ 3000K 80 100Lm/W IP20 1200*75*H23 20 2years
LL-7523-80W 80W 175-265V 0.5 2.5KV 80 100Lm/W IP20 1200*75*H23 20 2years
LL-7523-100W 100W 175-265V 0.5 2.5KV 80 100Lm/W IP20 1200*85*H23 20 2years
LL-7523-120W 120W 175-265V 0.5 2.5KV 80 100Lm/W IP20 1200*85*H23 20 2years
Applications

Widely Applications: Living Rooms, office, supermarket, shopping mall, public area etc.

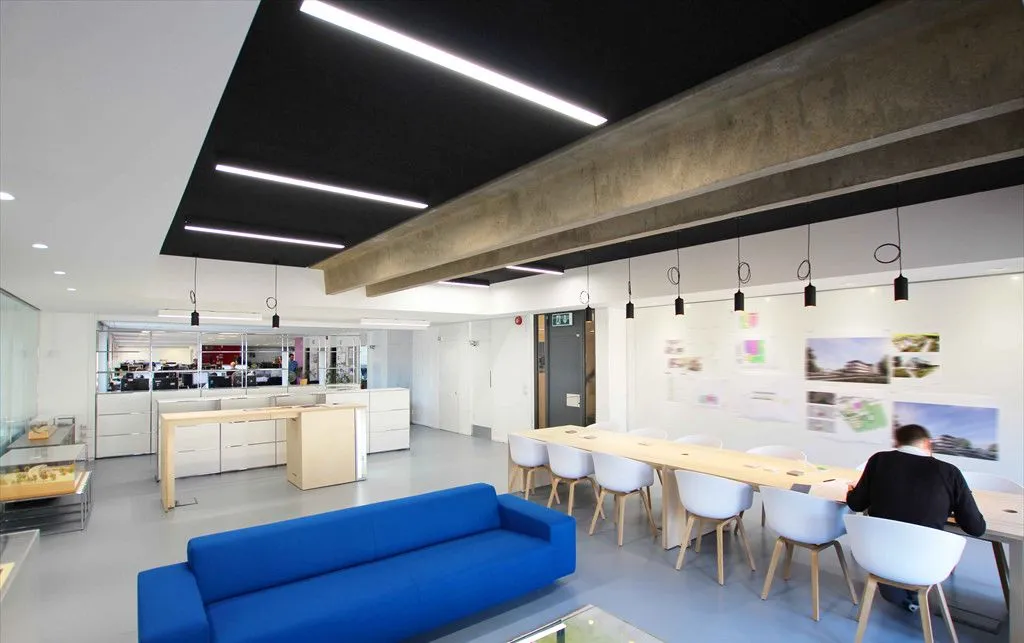

Application of LED Linear Batten Light
Certificates
Certificate 1

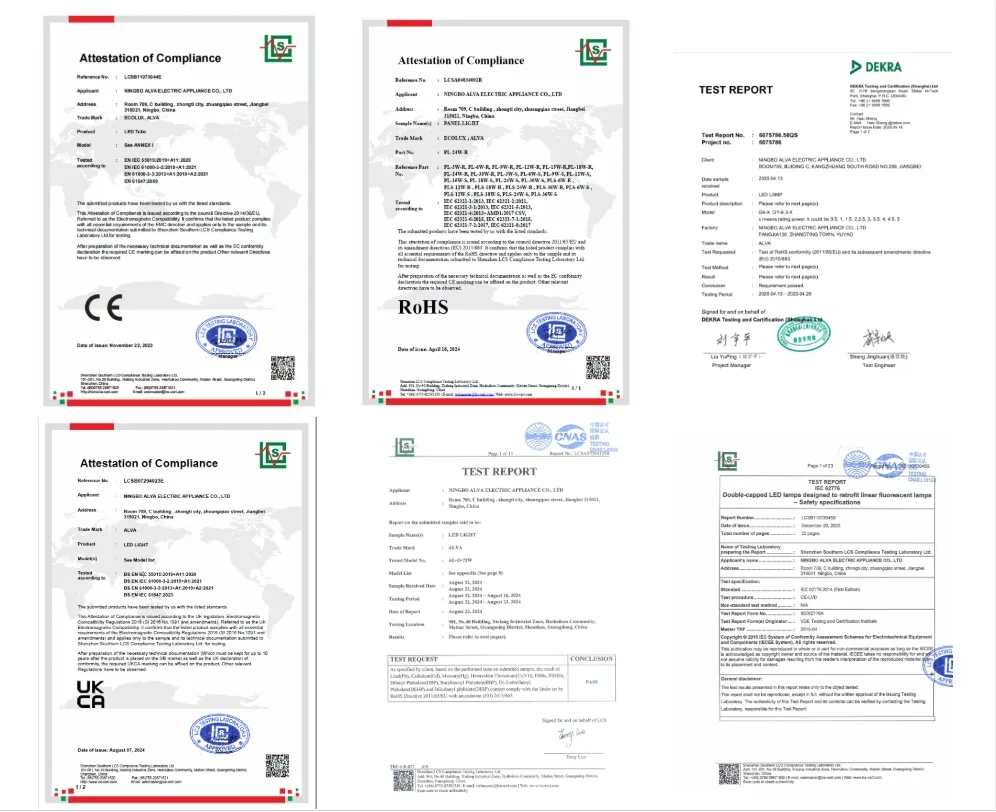

Certificate 2
Production Line

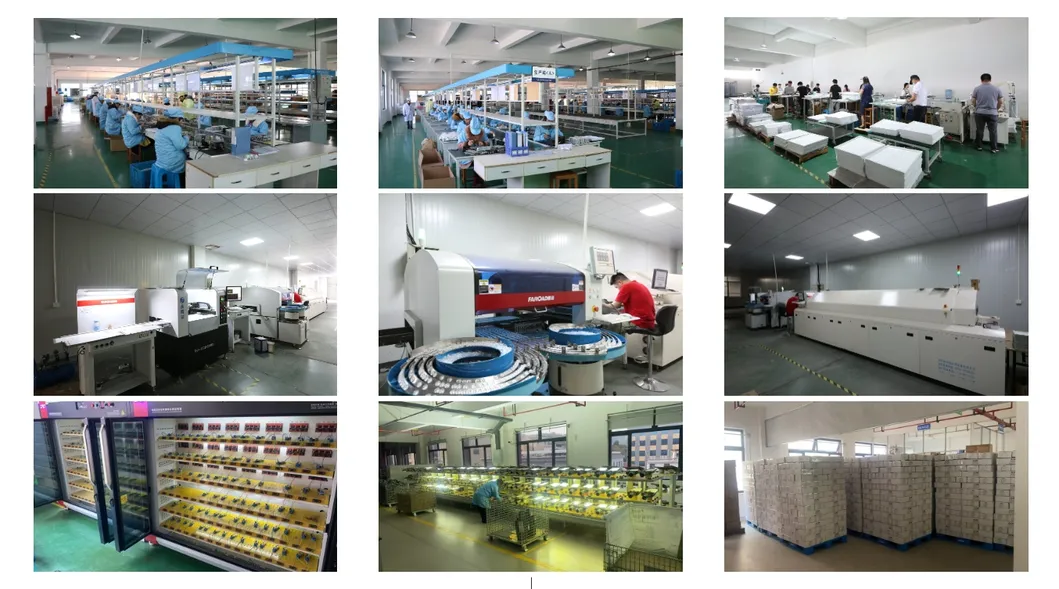

Production Line
Test Lab & Quality Control

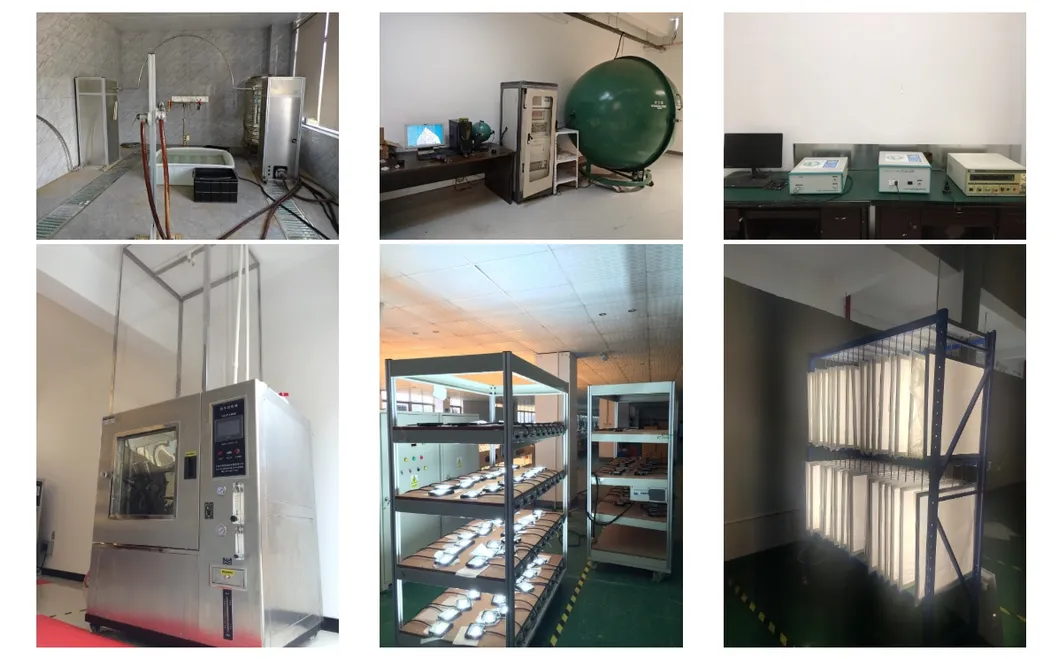

Testing Lab 1
Testing Lab 2
Exhibitions
Exhibition Show
Frequently Asked Questions
What are your payment terms?
For sample orders, we accept 100% payment in advance via Bank TT. For bulk orders, we require a 30% deposit via Bank TT, with the remaining 70% balance settled before shipment.
What is the estimated delivery time?
Sample orders generally take 3-7 working days to prepare. For bulk orders, the lead time is approximately 30-40 working days depending on quantity.
What shipping methods are available?
We offer express shipping (UPS, DHL, FedEx, TNT) which takes 3-5 days to arrive, air cargo taking about one week, or sea freight taking around one month. We can also coordinate directly with your shipping agent or forwarder.
What warranty do you offer on these products?
We offer 1, 2, 3, or 5 years warranty options to meet your specific requirements. If any quality issue arises during the warranty period, we will provide replacements free of charge.
How is product quality controlled?
100% of the lamps are tested for reliability, including a temperature test after 24 hours of continuous lighting. Once cooled, they are tested again. Every lamp must successfully pass all QC procedures before shipping.
Do you provide OEM and custom services?
Yes, we provide professional OEM services. We can print your logo on the product, customize the retail packaging box, and support other customization requirements with our experienced R&D team.
